SIIG HDMI KVM Extender Over CAT6/ 6e/ 7 Cable up to 230ft, 1080p 60Hz HD with HDMI Loop Out, 2-Port USB for Keyboard/Mouse, Audio Extractor, Near Zero Latency, Transmitter & Receiver (CE-H27411-S1)

A KVM extender can benefit many applications in almost any environment like home entertainment, small surveillance system, meeting rooms, churches, schools, hospitals, call centers, offices, retail stores, and many more.
Features
This KVM extender extends and transmits HDMI signal with resolution at 1080p 60Hz, as well as USB 2.0 signals up to230ft (70 meters) through a Cat 6/ 6a/ 7 network cable. It supports USB 2.0 signal extension from the transmitter to the receiver, so you can remotely control and operate the computer by connecting a keyboard and mouse from the transmitter. The feature of HDMI loop-out on the transmitter allows you to monitor the extended display locally. Lightning protection, surge protection, ESD protection. High-quality metal housing improves heat dissipation and ensures system stability during long-hours operation. No device driver or software is needed.
Benefits
During live events or presentations, the speaker is usually at the podium with a big screen for audiences to see visual information. But, the podium is typically at a distance from the computer. A KVM extender is able to transmit audio, video, and control signals from the computer to allow the speaker to control the screen's content. For security reasons, users can protect computers from damage and technical failures. Typically places like industrial environments can have dangerous dust, so the KVM extender can keep the computer in a remote location to be unharmed. For data protection, a KVM extender also help protect your computer from unauthorized access in public facilities, like internet cafes, libraries, call centers, or Kiosk centers. To improve workspace, a KVM extender frees up desk space at work stations by removing bulky system units, which makes the workspace nice and tidy.
This multifunctional HDMI KVM Extender over Cat 6/ 6a/ 7 ethernet cable connects your computer/ devices to a remote workstation or location. It transmits HDMI video and audio, as well as USB 2.0 signals up to 230ft, with near zero latency.
The KVM extender (Transmitter and Receiver Kit) comes with multiple connectivity ports.

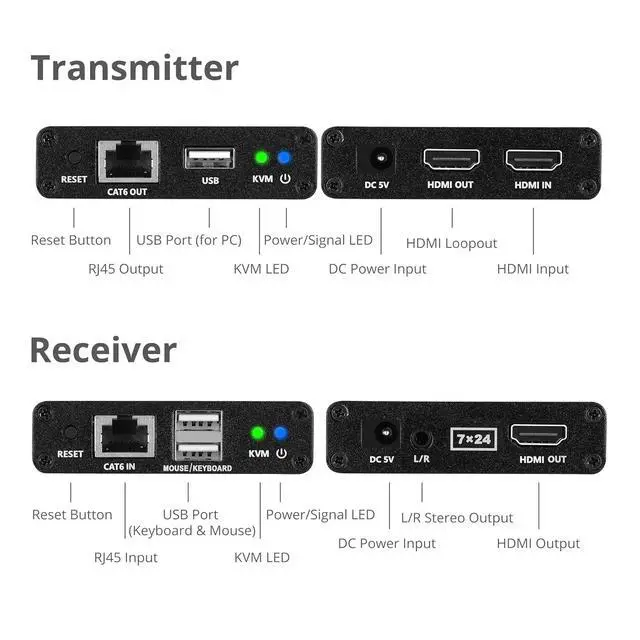

On Transmitter (TX) - One HDMI input, one HDMI loop-out, DC power (5V/1A), USB 2.0 (PC host), RJ45 output, and a reset buttonOn Receiver (RX) - One HDMI output, one stereo audio output (L/R), DC power (5V/1A), two USB 2.0 ports (keyboard and mouse), RJ45 input, and a reset button.
The KVM extender comes with multiple ports for users to connect to the computer or device.
Indicator LEDs for KVM and Power status let users monitor the connectivity.
The advantage of HDMI signals over ethernet cable is long-range, low cost, and remote control capability.

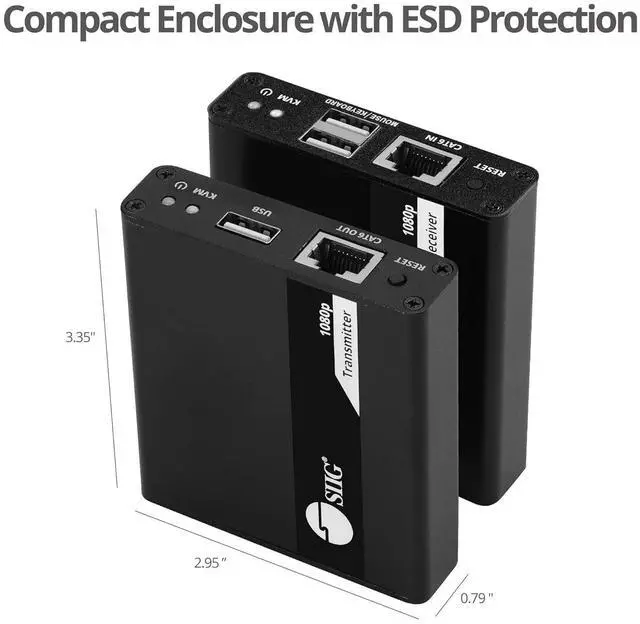

Video Resolution 1080p / 1080i / 720p / 480pTransmission Distance 1080p up to 230ft (70m) via Cat6/ 6a/ 7 cableHDMI Audio formatPCM 2/5.1/7.1, Dolby & DTS 5.1 CH3.5mm Audio formatPCM 2CH (L/R audio extraction)Transmitting Unit (TX)Dimensions: 3.35" (W) x 0.79" (H) x 2.95" (D)/ Weight: 0.29 lbsConnectors1x 19-pin HDMI Input1x 19-pin HDMI Loop-out/ 1x 4-pin USB 2.0 Type-A for Host connectionConnectors1x 8-pin, RJ45, Output/ 1x Reset button/ 1x Power jackReceiving Unit (RX)Dimensions: 3.35" (W) x 0.79" (H) x 2.95" (D)/ Weight: 0.29 lbsConnectors1x 19-pin HDMI Output/ 2x 4-pin USB 2.0 Type-A connect to Keyboard & Mouse/ 1x 8-pin RJ45 InputConnectors1x 3.5mm (L/R) Audio/ 1x Reset button/ 1x Power jackUnit packageDimensions: 7.83"(W) x 3.15"(H) x 5.87"(D)/ Weight: 1.42 lbsPower adapterInput: 100-240V / 50-60Hz Output: DC 5V/1AHousing materialAluminum alloy with crystal panel Founded in 1985, SIIG Inc. has led the way in creating IT and AV connectivity solutions you can trust. Focused on user satisfaction, we are driven by our core values of integrity, dependability, and innovation.
