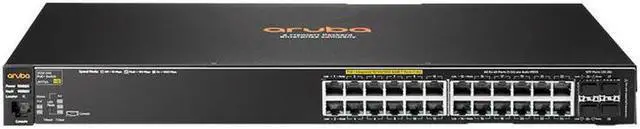

Aruba 2530 J9773A -24G-PoE+ switch - 24 ports - managed - rack-mountable

Product

Specifications

:
General
Device Type Switch - 24 ports - managed
Enclosure Type Desktop, rack-mountable, wall-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE) PoE+
Performance Throughput: 41.6 Mpps | Switching capacity: 56 Gbps
MAC Address Table Size 16000 entries
Jumbo Frame Support 9220 bytes
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI
Encryption Algorithm SSL
Authentication Method RADIUS, TACACS+, Secure Shell v. 2 (SSH2)
Features Flow control, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Multicast Suppression, STP Root Guard, LLDP support, dual firmware images, Class of Service (CoS), Generic Attribute Registration Protocol (GARP)
Compliant Standards IEEE 802.3, IEEE 802.3 u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3 ab, IEEE 802.1 p, IEEE 802.3 x, IEEE 802.3 ad (LACP), IEEE 802.1 w, IEEE 802.1 x, IEEE 802.1 s, IEEE 802.1 ab (LLDP), IEEE 802.3 at, IEEE 802.3 az
Processor 1 x ARM: 800 MHz
RAM 256 MB DDR3 SDRAM
Flash Memory 128 MB
Expansion / Connectivity
Interfaces 24 x 1000Base-T RJ-45 PoE+ | 4 x SFP | 1 x management RJ-45
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant Standards FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, EN 61000-3-3, EN55024, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C 22.2 No. 60950-1, EN 55022 Class A
Dimensions & Weight
Width 17.4 in
Depth 13 in
Height 1.8 in
Weight 8.71 lbs
