R8N89A - Aruba 6000 Switch

R8N89A Overview
Designed for reliable, simple, and security-enhanced access, the Aruba CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications.

Quick Specs

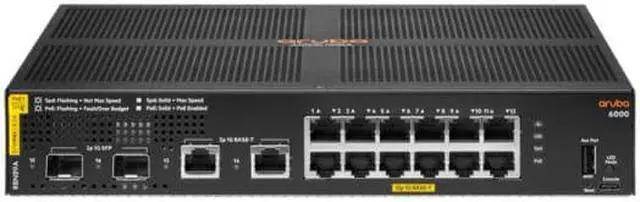

Figure 1 shows the appearance of R8N89A.
R8N89A

Table 1 shows the Quick Specs.

Product Code

R8N89A

Device Type

Switch - 12 ports - managed - stackable

Power Over Ethernet (PoE)

PoE

PoE Budget

139 W

Flash Memory

16 GB

Product Details

Figure 2 shows the front panel of R8N89A.
R8N89A front

Figure 3 shows the back panel of R8N89A.
R8N89A back

R8N89A provides these features:

Entry Level Aruba CX Access Layer Switches

The Aruba CX 6000 Switch Series offers Ethernet gigabit connectivity and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch offices and SMB networks.
Using Aruba AOS-CX operating system across Aruba CX switching platforms and access-to-core-to-data center deployment domains provides a simpler, more consistent operator experience.
Fully-managed enterprise class switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6 support.
Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1GbE uplinks and up to 370W of Class 4 PoE.
Simplifies ownership with no switch software licensing or subscriptions required.
Performance and Power

The Aruba CX 6000 Switch Series is designed with Aruba ASI
Cs that deliver very low latency, increased packet buffering, and adaptive power consumption.
Deploy wireless access points and IoT devices with Aruba CX 6000 switch models that support up to 370W IEEE 802.3 at Class 4 Power over Ethernet for up to 30W per port.
Up to four built-in wire speed 1GbE uplinks remove bottlenecks at the access layer where users and devices connect.
Simplified Configuration and Management

The Aruba CX 6000 Switch Series provides flexibility to manage and simplify configurations with Aruba NetEdit, Aruba Central1, easy to use Web GUI, or industry standard CLI.
Aruba NetEdit introduces automation that allows for rapid network-wide changes, and verifies policy conformance post network updates.
Software-defined ready with REST APIs for fine-grained programmability of network tasks.
Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).
Compare to Similar Items
Table 2 shows the comparison of R8N89A.

Module

R8N89A

R8N86A

Device Type

Switch - 12 ports - managed - stackable

Switch - 48 ports - L3 - managed - stackable

Voltage Required

AC 100-240 V (50/60 Hz)

AC 100 - 127 V / 200 - 240 V (50/60 Hz)

RAM

4 GB DDR3 SDRAM

4 GB DDR3 SDRAM

Flash Memory

16 GB

16 GB R8N89A Specification
R8N89A specification
Miscellaneous

Compliant Standards

CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C 22.2 No. 60950, CNS 13438, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, UL 62368-1 Second Edition, CISPR 32 Class A, EN 62368- 1:2014, VCCI-CISPR 32:2016 Class A, CISPR 35, EN 55035:2017, EN
55032:2015 /AC: 2016-07 Class A, EN
55024:2010: A1, IEC 62368-1 Second Edition

Dimensions

Width

10 in

Depth

10 in

Height

1.7 in

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature

32 °F

Max Operating Temperature

113 °F

Humidity Range Operating

15 - 95% (non-condensing)

Humidity Range Storage

15 - 90% (non-condensing)

General

Device Type

Switch - 12 ports - managed - stackable

Enclosure Type

Rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

12 x 10/100/1000 (PoE+) + 2 x Gigabit SFP + 2 x 1000Base-T

Power Over Ethernet (PoE)

PoE

PoE Budget

139 W

Performance

Packet buffer size: 12.38 MB ¦
Throughput: 23.8 Mpps ¦
Switching capacity: 32 Gbps ¦ Latency (1
Gbps): 2.3 µs ¦ Latency (10 Gbps): 2.6 µs

Capacity

Switched virtual interfaces (SVIs): 16 ¦
ARP entries: 1024 ¦
IPv4 routes (Unicast): 512 ¦
IPv6 routes (Unicast): 512 ¦
IGMP groups: 512 ¦
MLD groups: 512 ¦
IPv4 ACL entries (ingress): 256 ¦
IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256

MAC Address Table Size

8192 entries

Jumbo Frame Support

9198 bytes

Routing Protocol

IGM
Pv2, IGM
Pv3

Remote Management Protocol

SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, RADIUS

Encryption Algorithm

SSL

Authentication Method

Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v. 2 (SSH2)

Features

Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, MLD snooping, Trusted Platform Module (TPM), fanless, LACP support, LLDP support, DHCP client, Management Information Base (MIB), Neighbor Discovery Protocol (NDP), SNMP support, Internet Control Message Protocol (ICMP), DNS client, LLDP-MED, User Datagram Protocol (UDP), Rapid Reconfiguration of Spanning Tree (RSTP), IPv6 addressing

Compliant Standards

IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3 ab, IEEE 802.1 p, IEEE 802.3 af, IEEE 802.3 x, IEEE 802.3 ad (LACP), IEEE 802.1 w, IEEE 802.1 s, IEEE 802.3 at, IEEE 802.3 az

Processor

1 x ARM A 9: 1. 016 GHz

RAM

4 GB DDR3 SDRAM

Flash Memory

16 GB

Expansion / Connectivity

Interfaces

12 x 10/100/1000 Base-T RJ-45 PoE Class 4 - 139 W ¦ 2 x 10Gbit LAN SFP ¦ 2 x Gigabit LAN ¦ 1 x USB Type A ¦ 1 x USB-C console

Power

Power Device

Internal power supply

Voltage Required

AC 100-240 V (50/60 Hz)

Power Consumption Operational

21.9 Watt
