NVT Phybridge NV-EC1701PLS-XKIT Extender Kit; Includes: 1701+ Base Extender & Link Adapter, NV-PS55-60W Power Supply, 2' Coaxial Cable, and 2 x NV-BNCA BNC Screw Terminal Adapters

NVT Phybridge NV-EC1701PLS-XKIT Extender Kit; Includes: 1701+ Base Extender & Link Adapter, NV-PS55-60W Power Supply, 2' Coaxial Cable, and 2 x NV-BNCA BNC Screw Terminal Adapters

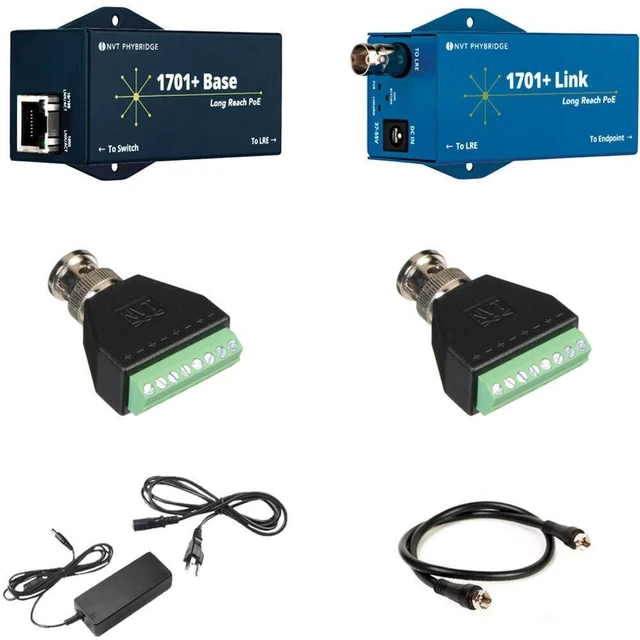

The NVT Phybridge NV-EC1701PLS-XKIT 1701+ Extender Kit includes a 1701+ Base Extender, a 1701+ Link Adapter, a power supply, two BNC screw terminals, and a 2' coax cable. This kit collectively functions as an extender solution to deliver data at rates up to 420 Mb/s and PoE+ over Coax with a reach of up to 8000'

Key Features:
- 1701+ Base Extender & Link Adapter
- NV-PS55-60W Power Supply Included
- 2' Coaxial Cable Included
- Transmission Range up to 8000'
- 2 x NV-BNCA BNC Screw Terminal Adapters

Specifications:

NV-EC1701PLS-BSE 1701+ Base Extender Specs:
- Data Rate: Line Side: Up to 420 Mb/s, HPAV2.1 (2 to 86 MHz); IEEE Side: 1000 Mb/s
- Power Supply: 37 to 55 VDC; 100 W on Coax
- DC Input: 37-55 VDC via Optional External AC/DC Power Adapter (Available Separately)
- Overall Dimensions: 4.15 x 2.11 x 1.33 inches
- Weight: 0.30 pounds

NV-EC1701PLS-LK 1701+ Link Adapter Specs:
- Interface: Line Side: 1 x BNC Port; IEEE Side (IP Device): 1 x RJ45 Port (Will Negotiate Power with 802.3af/at Compliant Endpoints)
- Data Rate: Line Side: Up to 420 Mb/s, HPAV2.1 (2-86 MHz); IEEE Side: 1000 Mb/s
- Power Supply: 37 to 55 VDC; 50 W Locally Powered, Delivered on 4 Pairs; 25 W Locally or Line Powered, Delivered on 2 Pairs
- Overall Dimensions: 4.15 x 2.11 x 1.33 inches
- Weight: 0.30 pounds

NV-PS55-60W Power Supply (55 VDC, 60W) Specs:
- Output Voltage: 55 VDC, 60 W
- Connector: P1J 5.5 mm
- Input Voltage: 100 to 240 VAC, 50-60 Hz
- Cord Length: 6' / 1.8 m

BNC To Screw Terminal Adapter Specs:
- Compatibility: NVT IP transceivers and TBus transmitters
- Connectors: 1 x BNC male; 8 x screw-terminal connections
