Lysora LS2-24GT4SFP-P 24-Port Gigabit PoE Switch, 370W PoE+ Budget, L2 Managed, 4 SFP Uplinks, 19" Rack Mount, Security Camera Network

Overview

The Lysora LS2-24GT4SFP-P is a 24-port Layer 2 managed Gigabit PoE switch built for demanding IP camera deployments and business networks that need real control. It provides 24 Gigabit PoE/PoE+ ports backed by a 370W power budget, plus 4 Gigabit SFP slots for fiber uplinks all in a 1U 19-inch rack-mount steel chassis. With 56 Gbps switching capacity, a full Layer 2 feature set (VLANs, STP/RSTP/MSTP, LACP link aggregation, QoS, ACLs, IGMP snooping), and enterprise-grade security like DHCP snooping, IP Source Guard, and ARP anti-spoofing, it delivers the segmentation, reliability, and protection that larger networks require. Surveillance-focused features PoE Watchdog, camera detection, and PoE overload protection plus cloud, app, and web management make it equally at home powering a 24-camera system. Backed by a 3-year warranty and 400,000-hour MTBF, NDAA compliant and FCC/IC/cTUVus certified.

Key Features

1. 24 PoE/PoE+ Ports, 370W Budget Powers up to 24 cameras, access points, or phones from a single rack unit.
2. 4 Gigabit SFP Uplinks Fiber connectivity to your network core or between buildings.
3. True Layer 2 Management 4,094 VLANs (802.1Q), STP/RSTP/MSTP loop protection, LACP link aggregation, LLDP-MED, and Voice VLAN.
4. 56 Gbps Switching Capacity 41.66 Mpps forwarding with an 8,000-entry MAC table for high-throughput networks.
5. Enterprise Security 802.1X, DHCP snooping, IP Source Guard, ARP anti-spoofing, IP-MAC-port binding, port isolation, and storm control.
6. QoS & ACLs Standard/extended ACLs plus 802.1p and DSCP traffic prioritization for voice and video.
7. Built for Surveillance PoE Watchdog auto-reboots frozen cameras, camera detection simplifies setup, and PoE overload protection safeguards the system.
8. Cloud & App Management Local web/HTTPS control or remote management via Lysora Cloud and the Lysora App, with cloud-based auto-recovery.
9. Rack-Ready & Reliable 1U 19-inch steel chassis with intelligent fan speed control and a 400,000-hour MTBF rating.
10. NDAA Compliant Meets federal sourcing requirements for government and public-sector projects.

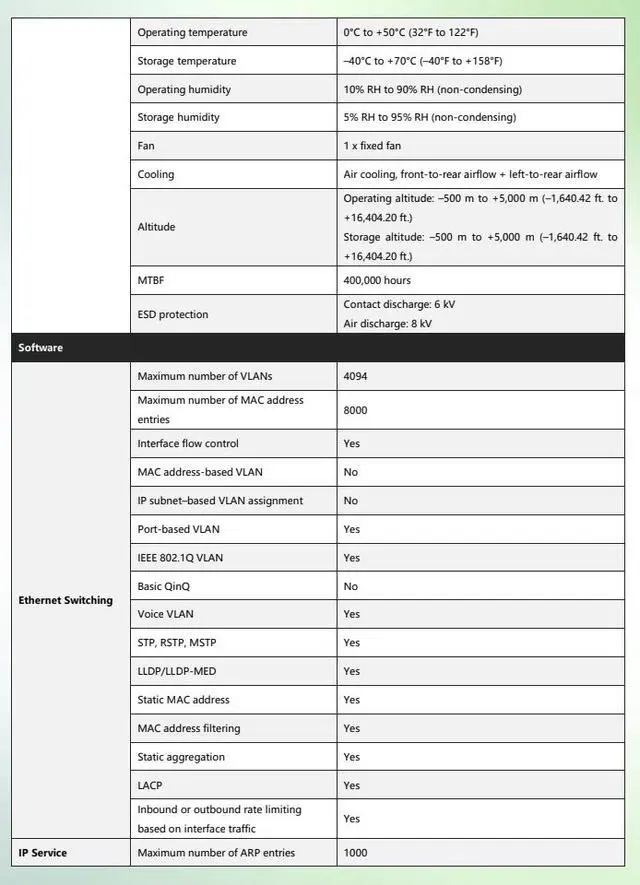

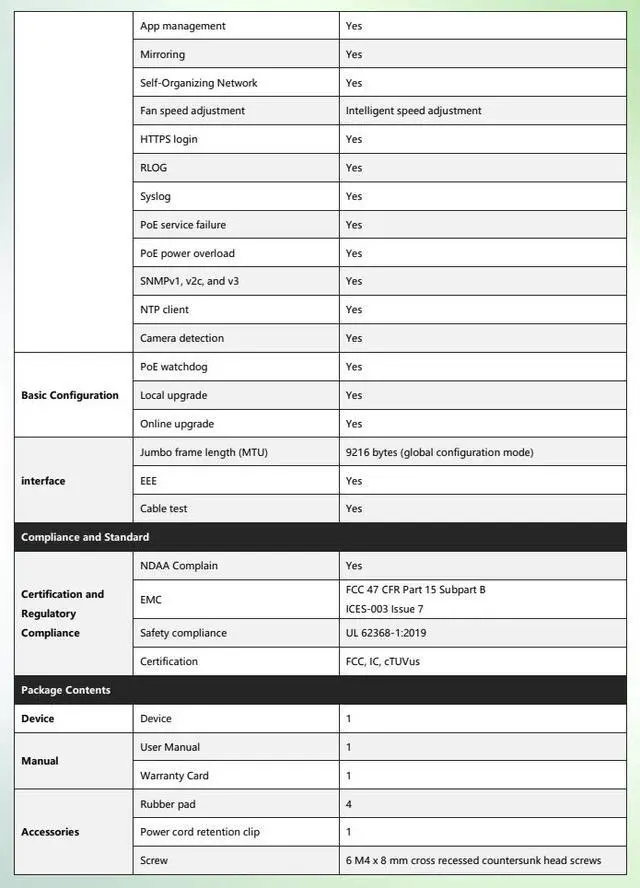

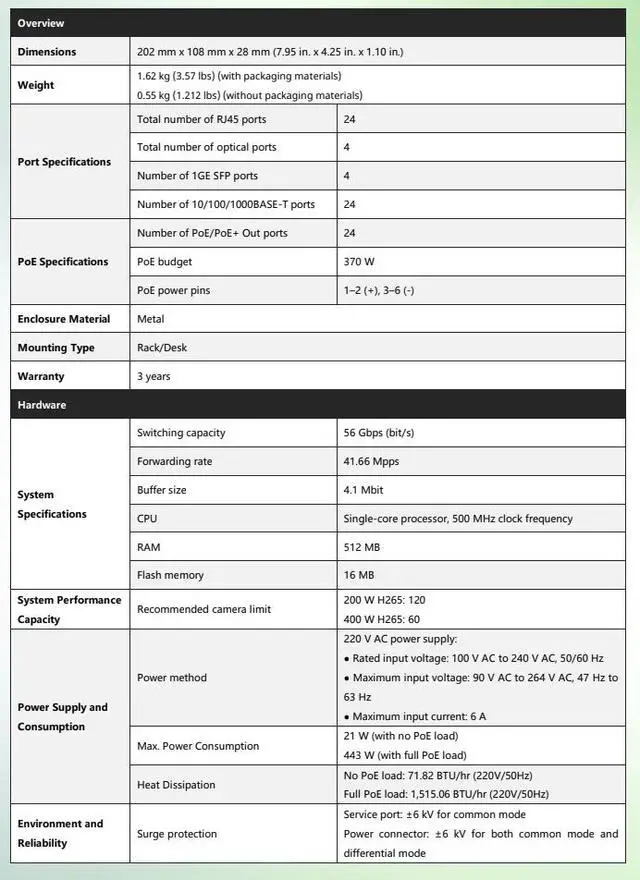

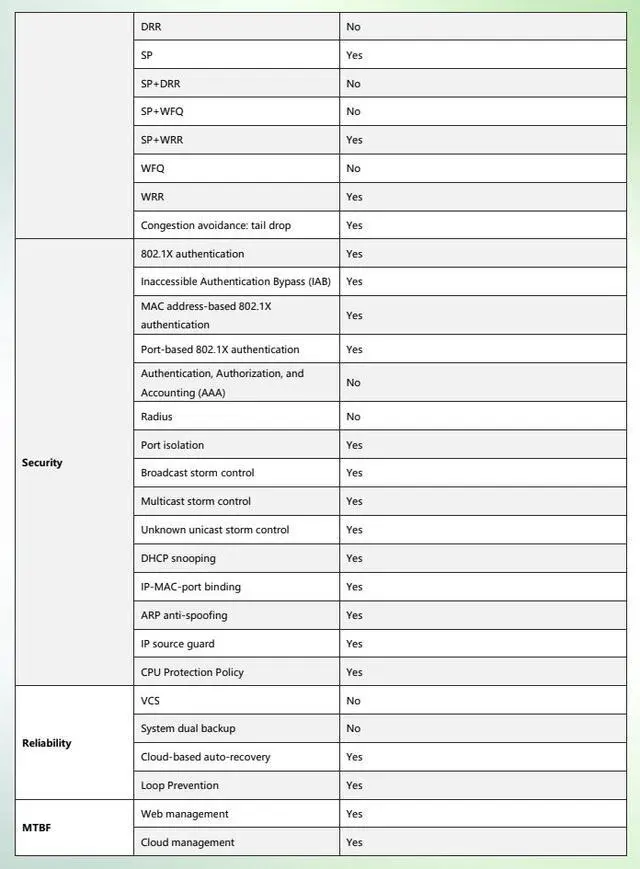

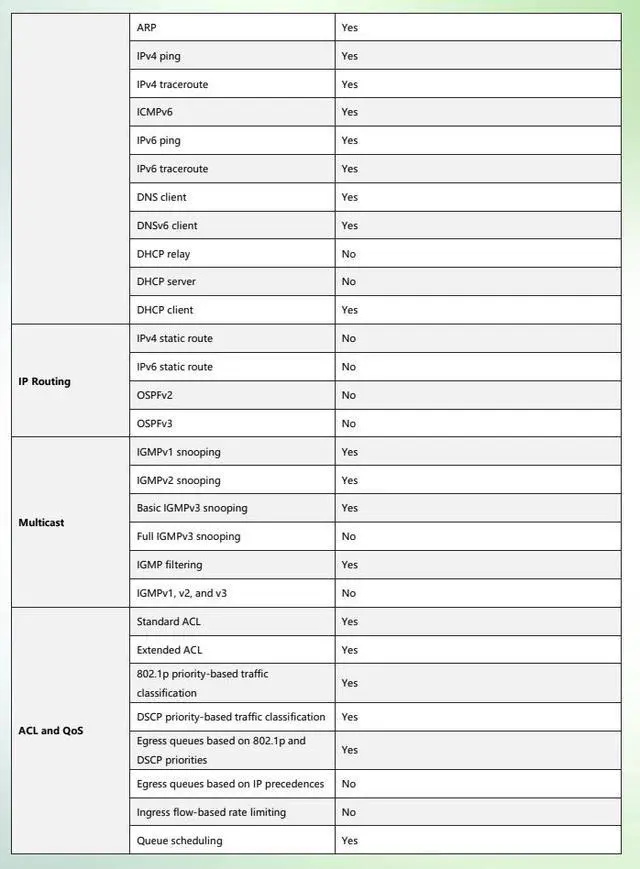

Specifications

1. Ports: 24× Gigabit PoE/PoE+ (RJ45) + 4× Gigabit SFP (28 ports total)
2. PoE Budget: 370W total | PoE Standard: PoE/PoE+ (802.3af/at)
3. Switching Capacity: 56 Gbps | Forwarding Rate: 41.66 Mpps
4. MAC Table: 8,000 entries | VLANs: 4,094 (802.1Q) | Jumbo Frame: 9,216 bytes
5. L2 Features: STP/RSTP/MSTP, LACP, LLDP-MED, Voice VLAN, IGMP v1/v2/v3 snooping
6. Security: 802.1X, DHCP snooping, IP Source Guard, ARP anti-spoofing, IP-MAC-port binding, port isolation, storm control
7. QoS: Standard/extended ACLs, 802.1p & DSCP classification, SP/WRR queue scheduling
8. Management: Web/HTTPS / Lysora App / Lysora Cloud | SNMP v1/v2c/v3, Syslog, NTP
9. Recommended Camera Load: up to 120× 2MP or 60× 4MP H.265 cameras (see note)
10. Power: Internal AC PSU, 100240V AC, 50/60 Hz (power cord included)
11. Max Power Consumption: 21W (no PoE) / 443W (full PoE load)
12. Cooling: 1× fan, intelligent speed control, front-to-rear airflow
13. Chassis: Steel, 1U 19-inch rack-mount | Dimensions: 440 × 215 × 44 mm (17.32 × 8.46 × 1.73 in.)
14. Weight: 3 kg (6.61 lbs)
15. Environment: Operating 0°C to 50°C (32°F to 122°F) | MTBF 400,000 hrs
16. Certifications: FCC, IC, cTUVus, UL 62368-1 | NDAA Compliant
17. Warranty: 3 years
18. In the Box: Switch, power cord (1.8m), 2× rack-mount brackets, grounding cable, cord retention clip, screws, rubber pads, user manual, warranty card
