Lysora LS2P-8MG2XS-P 8-Port 2.5G Multi-Gigabit PoE+ Managed Switch, 240W Budget, 2x 10G SFP+ Uplinks, L2 VLAN STP LACP, Rack Mount, NDAA Compliant

Overview

The Lysora LS2P-8MG2XS-P is an 8-port multi-gigabit Layer 2 managed PoE switch built to feed high-performance Wi-Fi 7 access points and multi-gig devices without a bottleneck. Every one of its eight PoE/PoE+ ports runs at 2.5 Gigabit not standard 1GbE and two 10 Gigabit SFP+ uplinks connect it to your core or fiber backbone at full speed. With 80 Gbps switching capacity, a 240W PoE budget, and a full Layer 2 feature set (4,094 VLANs, STP/RSTP/MSTP, LACP, ACLs, 802.1X, DHCP snooping, IP Source Guard, ARP anti-spoofing), it delivers both the throughput and the control that modern high-density networks require. Surveillance features like PoE Watchdog and camera detection make it equally capable powering an IP camera cluster. Managed via web, app, or Lysora Cloud, with rack-mount brackets included, a 3-year warranty, and a 400,000-hour MTBF. NDAA compliant and FCC/IC/cTUVus certified.

Key Features

1. 8× 2.5 Gigabit PoE+ Ports Multi-gig on every port eliminates the 1GbE bottleneck that throttles Wi-Fi 7 and Wi-Fi 6E access points.
2. 2× 10 Gigabit SFP+ Uplinks True 10G fiber uplinks to your core switch or server room.
3. 240W PoE Budget Powers 8 access points, cameras, or phones with generous headroom per port.
4. 80 Gbps Switching Capacity 58.72 Mpps forwarding with a 16,000-entry MAC table and 12 Mbit buffer.
5. Full Layer 2 Management 4,094 VLANs (802.1Q), STP/RSTP/MSTP, LACP link aggregation, LLDP-MED, Voice VLAN, and IGMP snooping.
6. Enterprise Security 802.1X with RADIUS, DHCP snooping, IP Source Guard, ARP anti-spoofing, IP-MAC-port binding, port isolation, and storm control.
7. Static Routing IPv4/IPv6 static routes (64 each) for basic inter-VLAN routing.
8. Built for Surveillance Too PoE Watchdog auto-reboots frozen cameras; camera detection simplifies IP camera setup.
9. Cloud & App Managed Local web/HTTPS or remote Lysora Cloud and App management, with cloud-based auto-recovery and self-organizing network support.
10. Rack-Ready Metal chassis with rack-mount brackets, grounding cable, and cord retention clip included.
11. NDAA Compliant Meets federal sourcing requirements for government and public-sector projects.

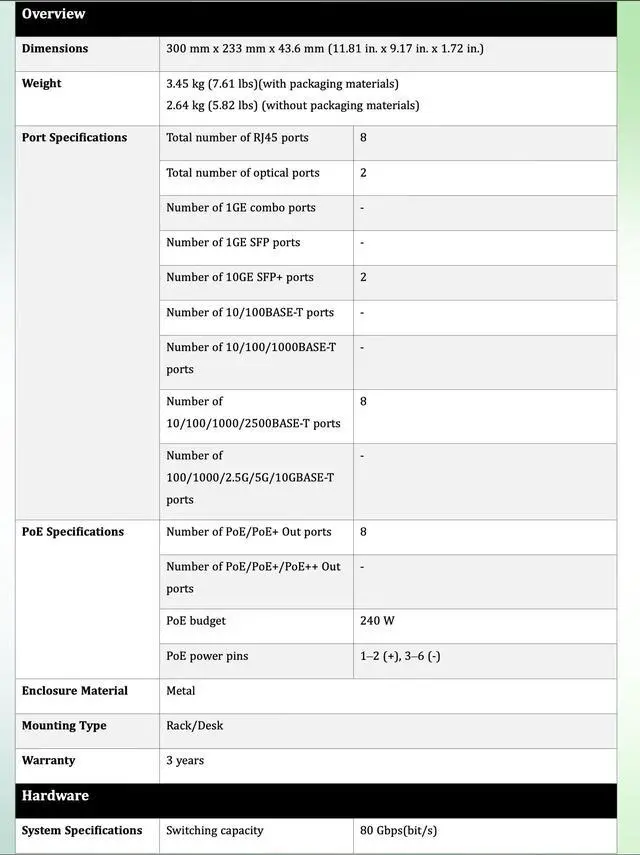

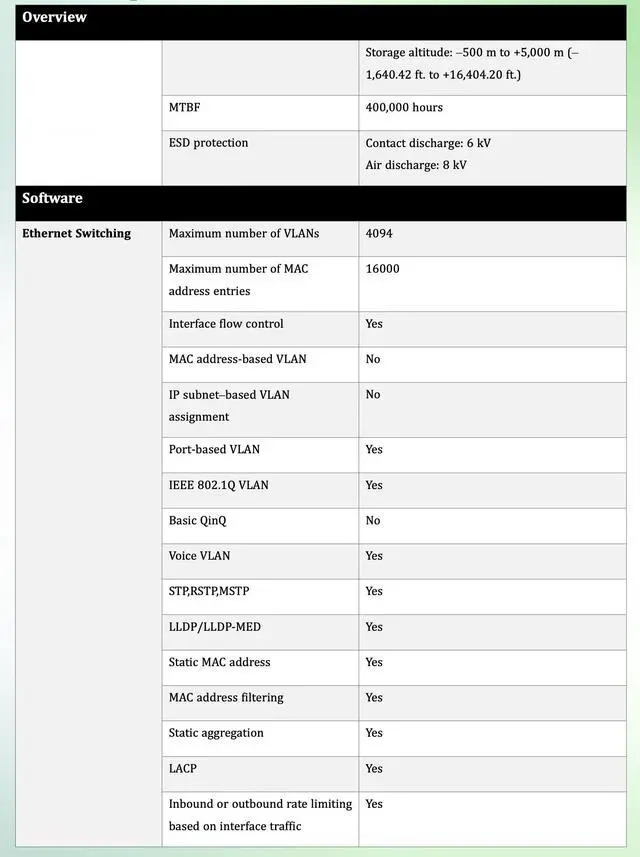

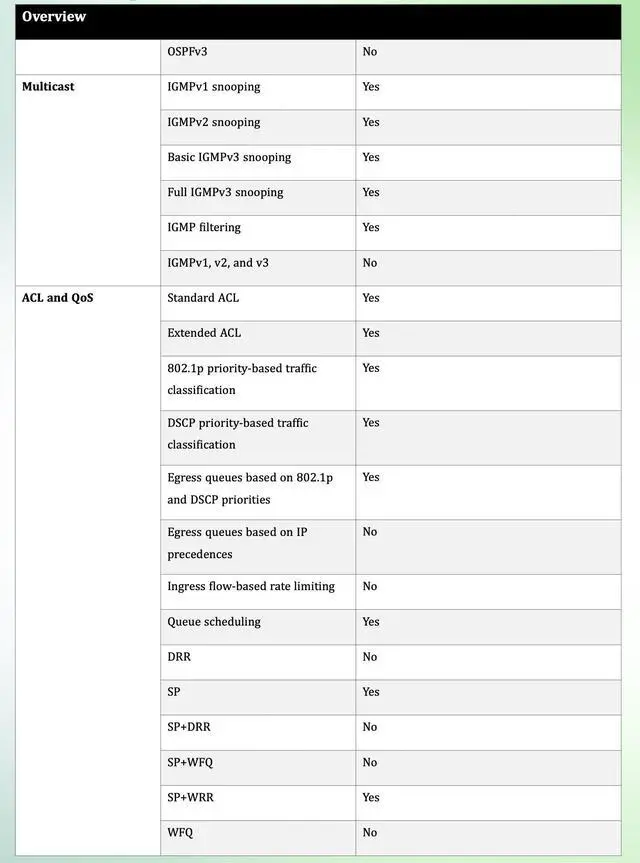

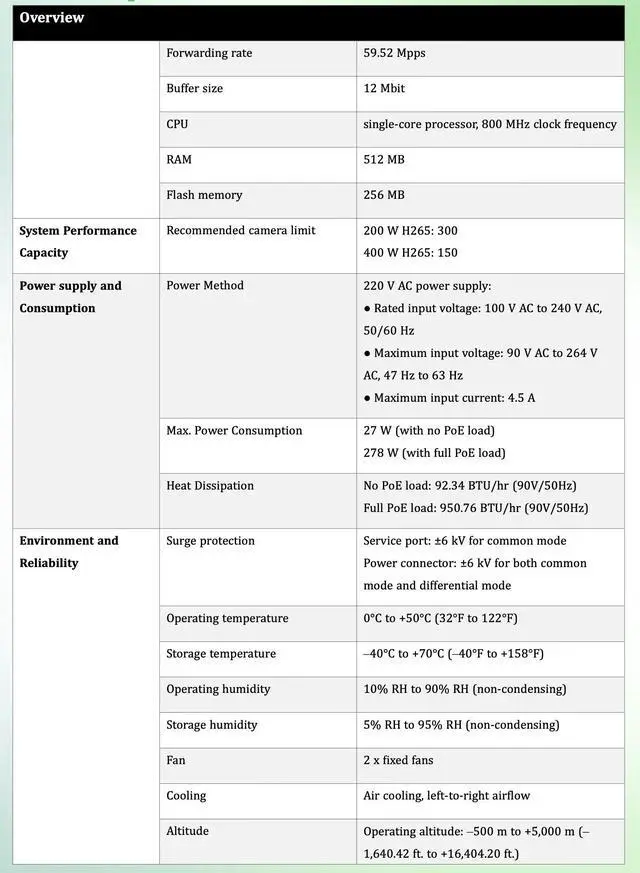

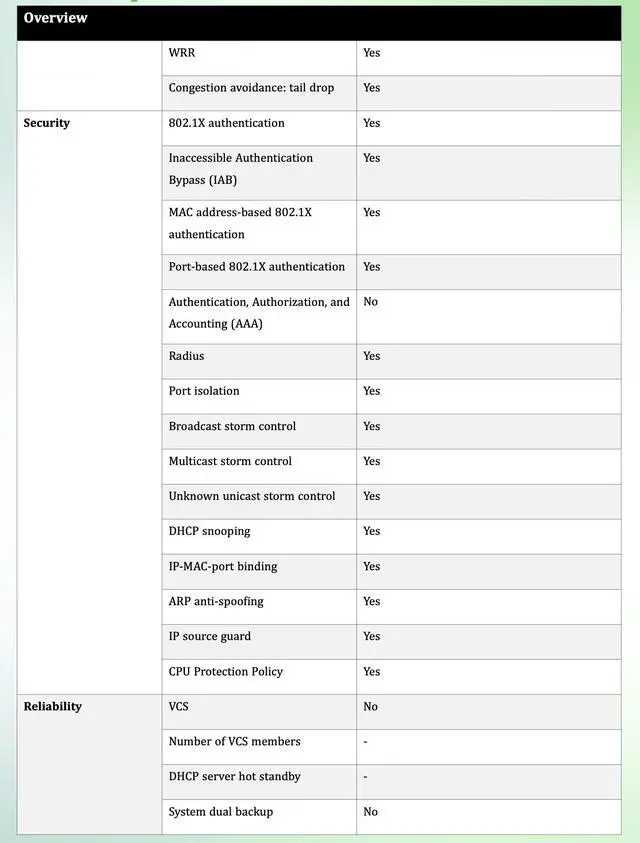

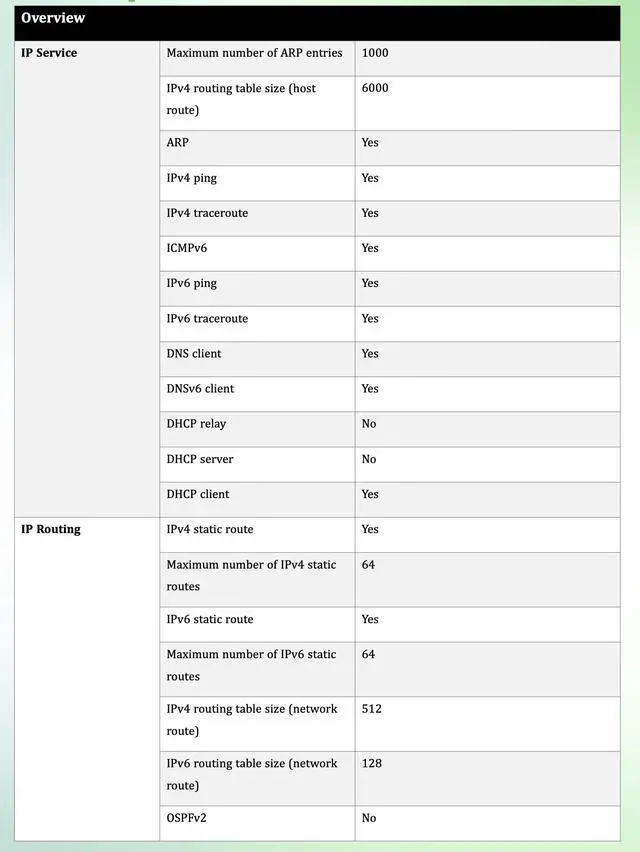

Specifications

1. Ports: 8× 2.5GbE PoE/PoE+ (10/100/1000/2500BASE-T) + 2× 10GbE SFP+ (10 ports total)
2. PoE Budget: 240W | PoE Standard: PoE/PoE+ (802.3af/at)
3. Switching Capacity: 80 Gbps | Forwarding Rate: 58.72 Mpps | Buffer: 12 Mbit
4. MAC Table: 16,000 entries | VLANs: 4,094 (802.1Q) | Jumbo Frame: 9,216 bytes
5. CPU: Single-core 800 MHz | RAM: 512MB | Flash: 256MB
6. L2 Features: STP/RSTP/MSTP, LACP, LLDP-MED, Voice VLAN, IGMP v1/v2/v3 snooping, EEE
7. Routing: IPv4/IPv6 static routes (64 each), 512 IPv4 / 128 IPv6 network routes
8. Security: 802.1X + RADIUS, DHCP snooping, IP Source Guard, ARP anti-spoofing, IP-MAC-port binding, port isolation, storm control
9. QoS: Standard/extended ACLs, 802.1p & DSCP classification, SP/WRR scheduling
10. Management: Web/HTTPS / Lysora App / Lysora Cloud | SNMP v1/v2c/v3, Syslog, NTP, port mirroring
11. Recommended Camera Load: up to 300× 2MP or 150× 4MP H.265 cameras (see note)
12. Power: Internal AC PSU, 100240V AC, 50/60 Hz | Max input current 4.5A
13. Max Power Consumption: 27W (no PoE) / 278W (full PoE load)
14. Cooling: 2× fans, left-to-right airflow | Heat: 92951 BTU/hr
15. Chassis: Metal, rack or desk mount | Dimensions: 300 × 233 × 43.6 mm (11.81 × 9.17 × 1.72 in.)
16. Weight: 2.64 kg (5.82 lbs)
17. Environment: Operating 0°C to 50°C (32°F to 122°F) | ±6 kV surge | MTBF 400,000 hrs
18. Certifications: FCC, IC, cTUVus, UL 62368-1 | NDAA Compliant
19. Warranty: 3 years
20. In the Box: Switch, power cord (1.5m), 2× rack-mount brackets, grounding cable, cord retention clip, 8× screws, 4× rubber pads, user manual, warranty card
