Lysora LS3-12XS 12-Port 10G SFP+ Layer 3 Managed Switch, 240Gbps, OSPF Routing, DHCP Server, VCS Stacking, Rack Mount, Cloud Managed, NDAA Compliant

Overview

The Lysora LS3-12XS is a 12-port 10 Gigabit Layer 3 managed switch built to sit at the core of a network and aggregate everything below it. All twelve ports are 10G SFP+ fiber, delivering 240 Gbps of switching capacity and a 178.56 Mpps forwarding rate enough headroom to backhaul multiple access switches, servers, and storage without contention. As a full Layer 3 device it handles real routing: OSPFv2 and OSPFv3 dynamic routing, 500 IPv4/IPv6 static routes, a 12,000-entry routing table, plus DHCP server and relay so it can serve as the network's gateway rather than just a switch. Enterprise reliability features include VCS stacking (2 members), DHCP server hot standby, dual system backup, ERPS ring protection, and cloud-based auto-recovery. Security covers 802.1X with RADIUS, DHCP snooping, IP Source Guard, ARP anti-spoofing, and IP-MAC-port binding. Managed via web, app, or Lysora Cloud, with rack-mount brackets included, a 3-year warranty, and a 400,000-hour MTBF. NDAA compliant and FCC/ISED/cTUVus certified.

Key Features

1. 12× 10G SFP+ Ports All-fiber 10 Gigabit aggregation for connecting access switches, servers, and storage at full speed.
2. True Layer 3 Routing OSPFv2/OSPFv3 dynamic routing, 500 static routes each for IPv4/IPv6, and a 12,000-entry routing table.
3. 240 Gbps Switching Capacity 178.56 Mpps forwarding with a 32,000-entry MAC table and 16 Mbit buffer.
4. Built-In DHCP Server DHCP server and relay with hot standby, so the switch can act as your network gateway.
5. High Availability VCS stacking (2 members), dual system backup, ERPS ring protection, and cloud-based auto-recovery keep the core online.
6. Full Layer 2 Feature Set 4,094 VLANs (802.1Q), STP/RSTP/MSTP, LACP link aggregation, LLDP-MED, Voice VLAN, and full IGMP v1/v2/v3 snooping and routing.
7. Enterprise Security 802.1X with RADIUS, DHCP snooping, IP Source Guard, ARP anti-spoofing, IP-MAC-port binding, port isolation, and storm control.
8. Out-of-Band Management Port Dedicated 10/100 RJ45 MGMT port for console access independent of data traffic.
9. Efficient and Quiet Just 44W maximum draw and 150 BTU/hr heat output for a 240 Gbps core switch.
10. Rack-Ready Metal chassis with rack-mount brackets, grounding cable, and cord retention clip included.
11. NDAA Compliant Meets federal sourcing requirements for government and public-sector projects.

Specifications

1. Ports: 12× 10G SFP+ (fiber) + 1× 10/100BASE-T RJ45 management port
2. PoE: None this switch does not supply PoE power

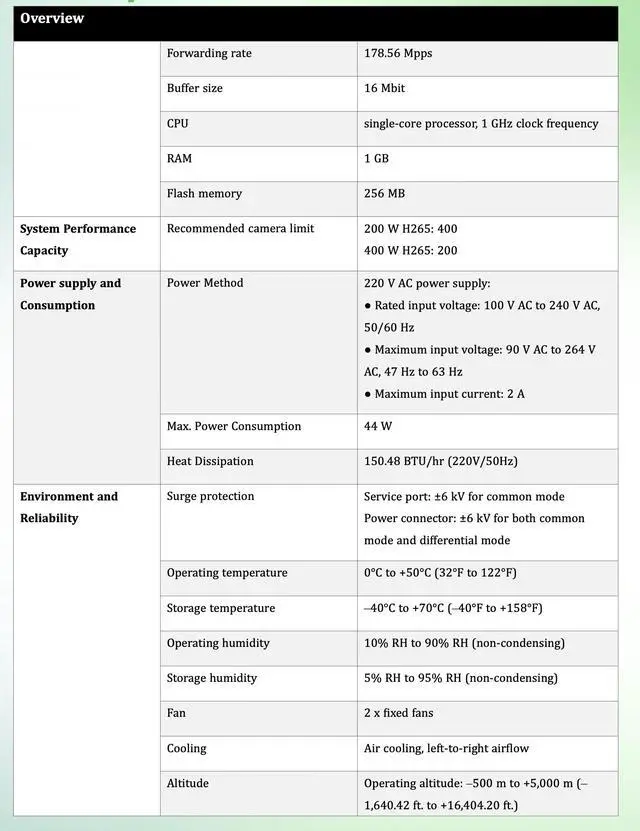

3. Switching Capacity: 240 Gbps | Forwarding Rate: 178.56 Mpps | Buffer: 16 Mbit

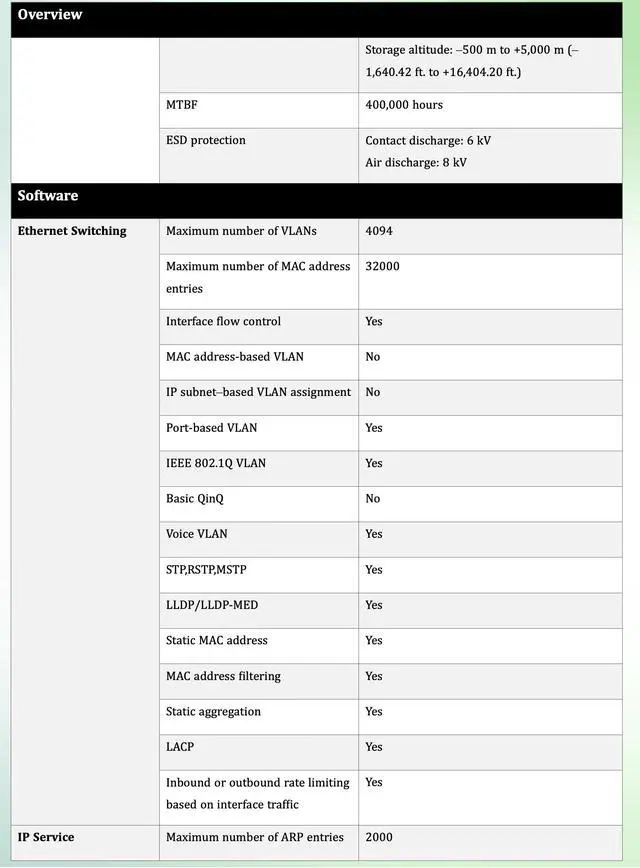

4. MAC Table: 32,000 entries | VLANs: 4,094 (802.1Q) | Jumbo Frame: 9,216 bytes
5. CPU: Single-core 1 GHz | RAM: 1GB | Flash: 256MB

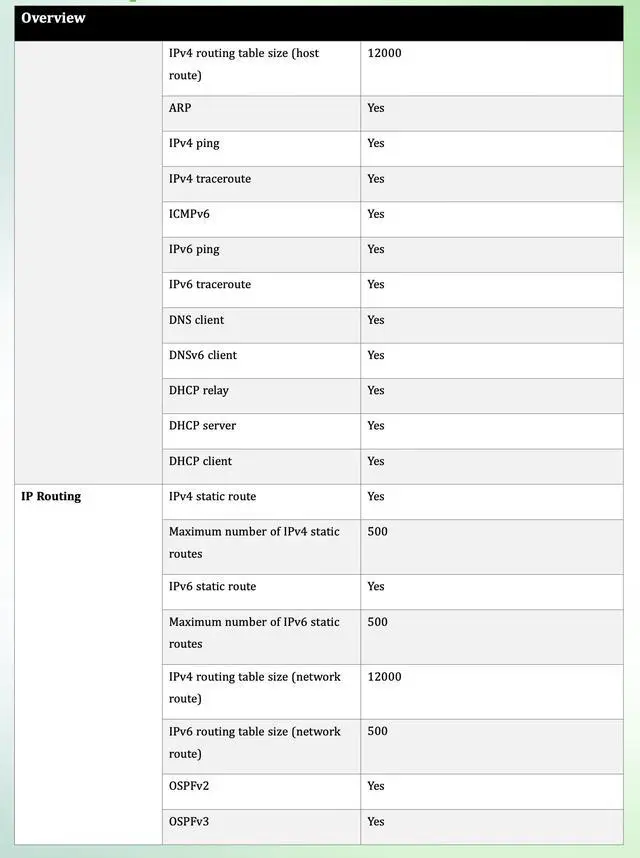

6. L3 Routing: OSPFv2, OSPFv3, 500 IPv4 + 500 IPv6 static routes, 12,000 IPv4 network routes, 2,000 ARP entries
7. IP Services: DHCP server, DHCP relay, DHCP client, DNS/DNSv6 client
8. L2 Features: STP/RSTP/MSTP, LACP, LLDP-MED, Voice VLAN, full IGMP v1/v2/v3 snooping + routing
9. High Availability: VCS stacking (2 members), DHCP server hot standby, dual system backup, ERPS (stand-alone), cloud auto-recovery

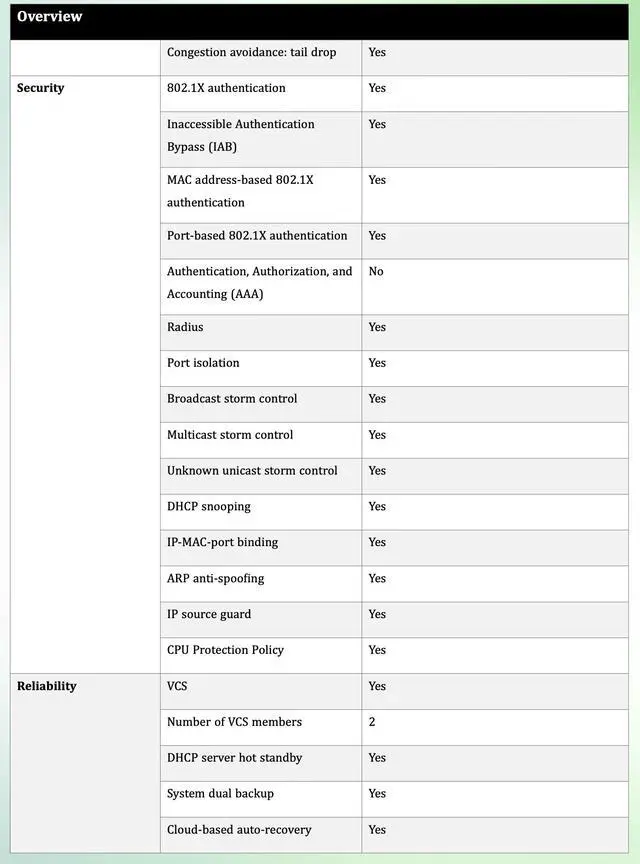

10. Security: 802.1X + RADIUS + IAB, DHCP snooping, IP Source Guard, ARP anti-spoofing, IP-MAC-port binding, port isolation, storm control, CPU protection

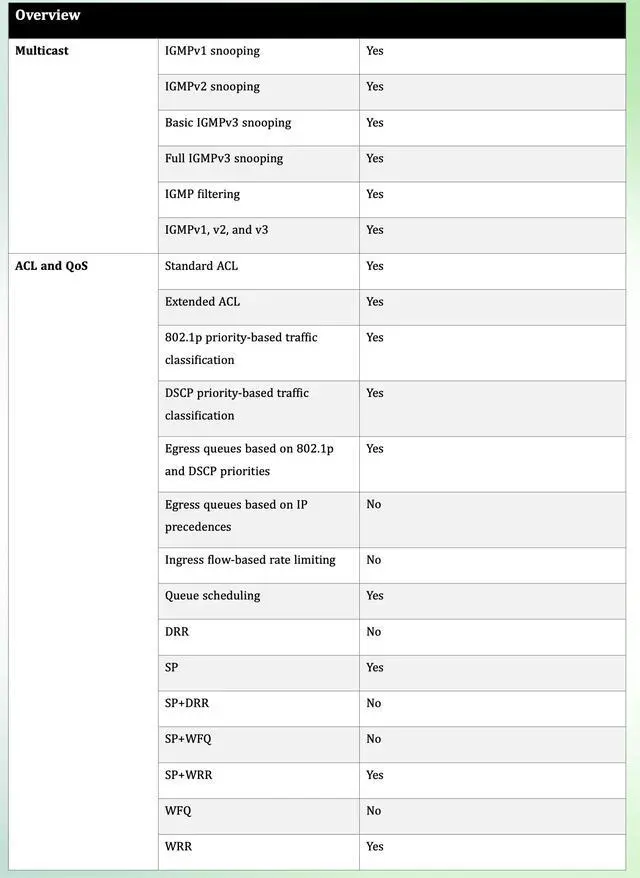

11. QoS: Standard/extended ACLs, 802.1p & DSCP classification, SP/WRR scheduling
12. Management: Web/HTTPS / Lysora App / Lysora Cloud | SNMP v1/v2c/v3, Syslog, NTP, port mirroring, cable test
13. Power: Internal AC PSU, 100240V AC, 50/60 Hz | Max input current 2A
14. Max Power Consumption: 44W | Heat: 150.48 BTU/hr
15. Cooling: 2× fans, left-to-right airflow

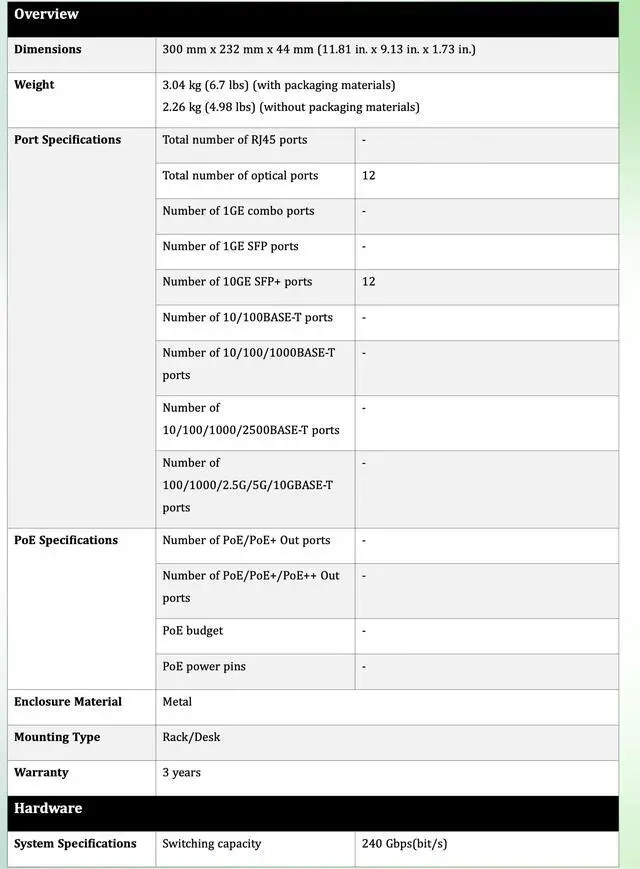

16. Chassis: Metal, rack or desk mount | Dimensions: 300 × 232 × 44 mm (11.81 × 9.13 × 1.73 in.)
17. Weight: 2.26 kg (4.98 lbs)
18. Environment: Operating 0°C to 50°C (32°F to 122°F) | ±6 kV surge | MTBF 400,000 hrs
19. Certifications: FCC, ISED, cTUVus, UL 62368-1, CSA C22.2 | NDAA Compliant
20. Warranty: 3 years
21. In the Box: Switch, power cord (1.8m), 2× rack-mount brackets, grounding cable, cord retention clip, 8× screws, 4× rubber pads, user manual, warranty card
