Lysora LCS-24GS-P 24-Port Gigabit PoE+ Switch (28 Ports Total), 370W Budget, 2x SFP + 2x RJ45 Uplinks, PoE Watchdog, 19in Rack Mount, Cloud Managed, NDAA Compliant

Overview

The Lysora LCS-24GS-P is a 24-port cloud-managed Gigabit PoE switch built for IP camera deployments and small-business networks that need capacity without complexity. It provides 24 Gigabit PoE/PoE+ ports backed by a 370W power budget, plus 2 Gigabit RJ45 and 2 Gigabit SFP uplink ports for copper or fiber connections to your network core 28 ports total. With 56 Gbps switching capacity, surveillance-focused features like PoE Watchdog (auto-reboots unresponsive cameras) and camera detection, and straightforward management through web, app, or Lysora Cloud, it's designed to power and monitor a full camera system without requiring a network engineer. Essential controls are all there 802.1Q VLANs, port isolation, DHCP snooping, storm control, and port mirroring in a 19-inch rack-mount steel chassis with brackets included. NDAA compliant and CE/FCC certified, backed by a 3-year warranty.

Key Features

1. 24 PoE/PoE+ Ports, 370W Budget Powers up to 24 IP cameras, access points, or VoIP phones from a single rack unit.
2. 4 Uplink Ports 2 Gigabit RJ45 + 2 Gigabit SFP uplinks for flexible copper or fiber connections to your core.
3. Built for Surveillance PoE Watchdog automatically reboots frozen cameras, and camera detection simplifies IP camera deployment.
4. 56 Gbps Switching Capacity 41.6 Mpps forwarding with an 8,000-entry MAC table and 10,000-byte jumbo frame support.
5. Simple Cloud Management Configure and monitor locally via web or remotely through Lysora Cloud and the Lysora App, with self-organizing network support no CLI required.
6. Essential Network Controls 802.1Q VLANs (up to 16), port isolation, DHCP snooping, storm control, rate limiting, and port mirroring.
7. 19-Inch Rack Mount Steel chassis with rack-mount brackets included.
8. Protected Design ±6 kV power surge protection, ±4 kV port protection, and 6 kV contact ESD protection.
9. 3-Year Warranty 200,000-hour MTBF rating.
10. NDAA Compliant Meets federal sourcing requirements for government and public-sector projects.

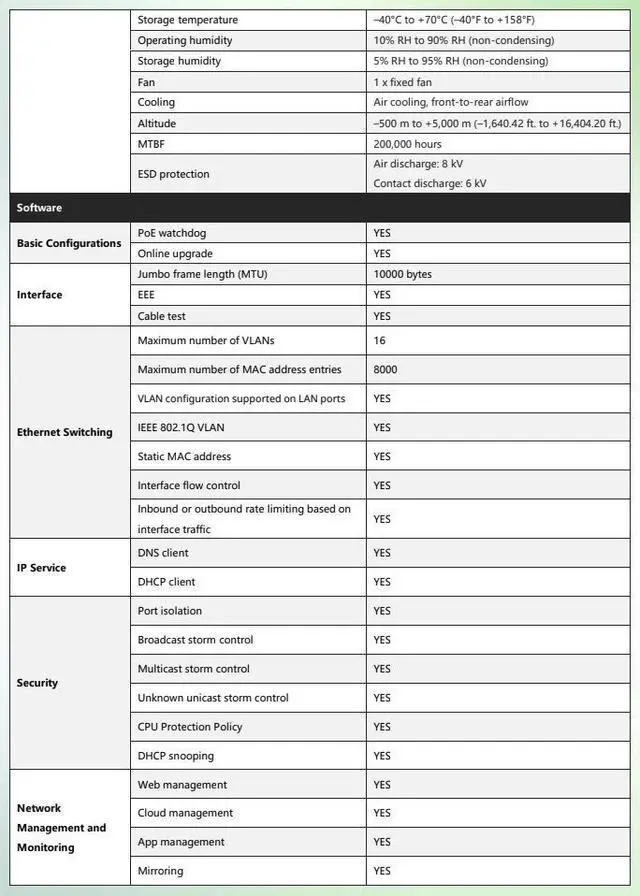

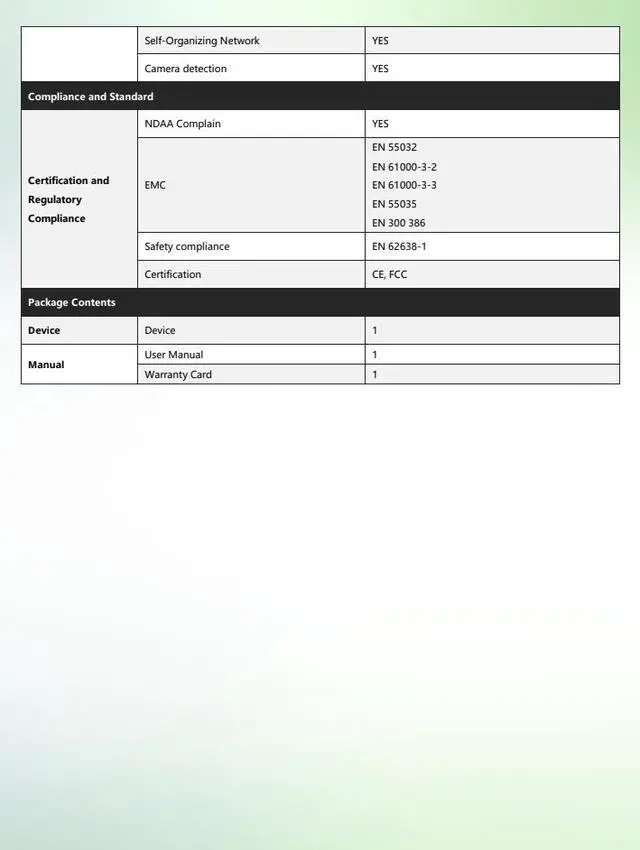

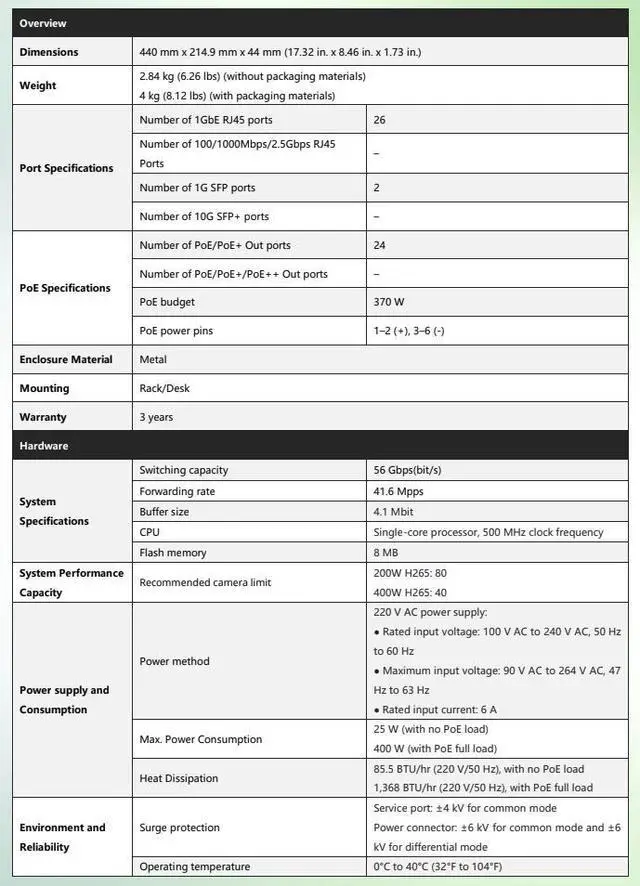

Specifications

1. Ports: 24× Gigabit PoE/PoE+ (RJ45) + 2× Gigabit RJ45 uplink + 2× Gigabit SFP uplink (28 ports total)
2. PoE Budget: 370W | PoE Standard: PoE/PoE+ (802.3af/at)
3. Switching Capacity: 56 Gbps | Forwarding Rate: 41.6 Mpps | Buffer: 4.1 Mbit
4. MAC Table: 8,000 entries | VLANs: up to 16 (802.1Q) | Jumbo Frame: 10,000 bytes
5. CPU: Single-core 500 MHz | Flash: 8MB
6. Management: Web / Lysora App / Lysora Cloud | Self-Organizing Network, port mirroring, cable test
7. Features: 802.1Q VLAN, static MAC, port isolation, DHCP snooping, storm control, rate limiting, flow control, EEE
8. Power: Internal AC PSU, 100240V AC, 50/60 Hz | Rated input current 6A
9. Max Power Consumption: 25W (no PoE) / 400W (full PoE load)
10. Cooling: 1× fan, front-to-rear airflow | Heat: 85.51,368 BTU/hr
11. Chassis: Steel, 19-inch rack mount | Dimensions: 440 × 214.9 × 44 mm (17.32 × 8.46 × 1.73 in.)
12. Weight: 2.84 kg (6.26 lbs)
13. Environment: Operating 0°C to 40°C (32°F to 104°F) | MTBF 200,000 hrs
14. Certifications: CE, FCC | NDAA Compliant
15. Warranty: 3 years
16. In the Box: Switch, power cord (1.8m), 2× rack-mount brackets, 6× screws, 4× rubber pads, user manual, warranty card
