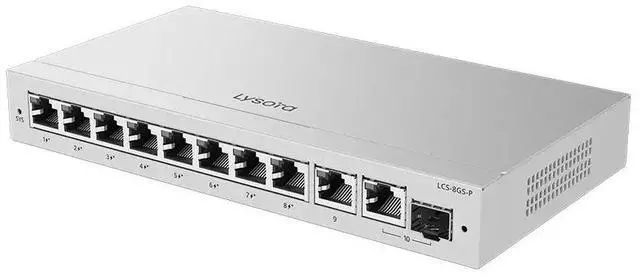

Lysora LCS-8GS-P 8-Port Gigabit PoE+ Switch (10 Ports Total), 120W Budget, SFP Combo Uplink, Fanless Silent, PoE Watchdog, Cloud Managed, NDAA Compliant

Overview

The Lysora LCS-8GS-P is a compact, fanless cloud-managed Gigabit PoE switch built for small IP camera systems, access-point clusters, and edge closets. It delivers 8 Gigabit PoE/PoE+ ports with a generous 120W power budget enough headroom to run 8 cameras or APs comfortably plus 2 Gigabit uplinks including a combo RJ45/SFP port for copper or fiber. Its completely silent, fanless metal design makes it a fit for offices, retail spaces, and residential installs where noise matters, while surveillance features like PoE Watchdog (auto-reboots frozen cameras) and camera detection simplify deployment and keep systems running unattended. Managed via web, app, or Lysora Cloud with self-organizing network support, and backed by a 3-year warranty. NDAA compliant and FCC/IC certified.

Key Features

1. 8 PoE/PoE+ Ports, 120W Budget Ample power for 8 IP cameras, access points, or VoIP phones, with headroom for higher-draw PoE+ devices.
2. 2 Gigabit Uplinks with SFP Combo Connect to your core network over copper or fiber.
3. Silent Fanless Design Natural cooling means zero noise, even at full load.
4. Built for Surveillance PoE Watchdog auto-reboots unresponsive cameras; camera detection streamlines IP camera setup.
5. Cloud & App Managed Configure locally via web or remotely through Lysora Cloud and the Lysora App no CLI required.
6. Essential Network Controls 802.1Q VLANs, static MAC, port isolation, DHCP snooping, storm control, rate limiting, and port mirroring.
7. 20 Gbps Switching Capacity 14.8 Mpps forwarding for smooth multi-camera throughput.
8. Compact Metal Chassis Just 202 × 108 × 28 mm; wall- or desk-mountable, with ±6 kV port surge and 6 kV contact ESD protection.
9. 3-Year Warranty 200,000-hour MTBF rating.
10. NDAA Compliant Meets federal sourcing requirements for government and public-sector projects.

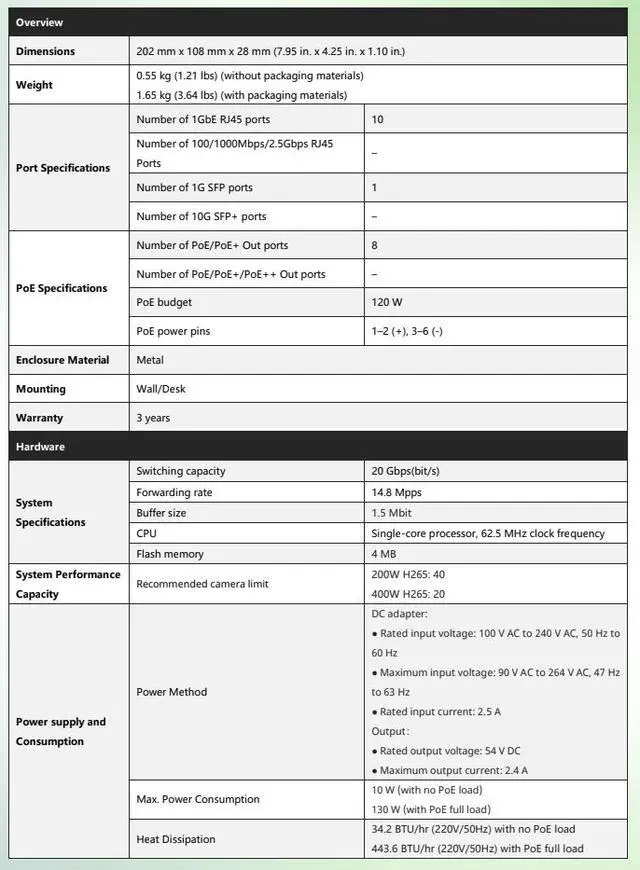

Specifications

1. Ports: 8× Gigabit PoE/PoE+ (RJ45) + 2× Gigabit uplink (1 combo RJ45/SFP) 10 ports total
2. PoE Budget: 120W | PoE Standard: PoE/PoE+ (802.3af/at)
3. Switching Capacity: 20 Gbps | Forwarding Rate: 14.8 Mpps | Buffer: 1.5 Mbit
4. CPU: Single-core 62.5 MHz | Flash: 4MB
5. Management: Web / Lysora App / Lysora Cloud | Self-Organizing Network, port mirroring, cable test
6. Features: 802.1Q VLAN, static MAC, port isolation, DHCP snooping, storm control, rate limiting, flow control, EEE
7. Power: External adapter, 100240V AC input / 54V DC 2.4A output
8. Max Power Consumption: 10W (no PoE) / 130W (full PoE load)
9. Cooling: Fanless / natural cooling (silent) | Heat: 34444 BTU/hr
10. Chassis: Metal | Dimensions: 202 × 108 × 28 mm (7.95 × 4.25 × 1.10 in.)
11. Weight: 0.55 kg (1.21 lbs)
12. Mounting: Wall or Desk

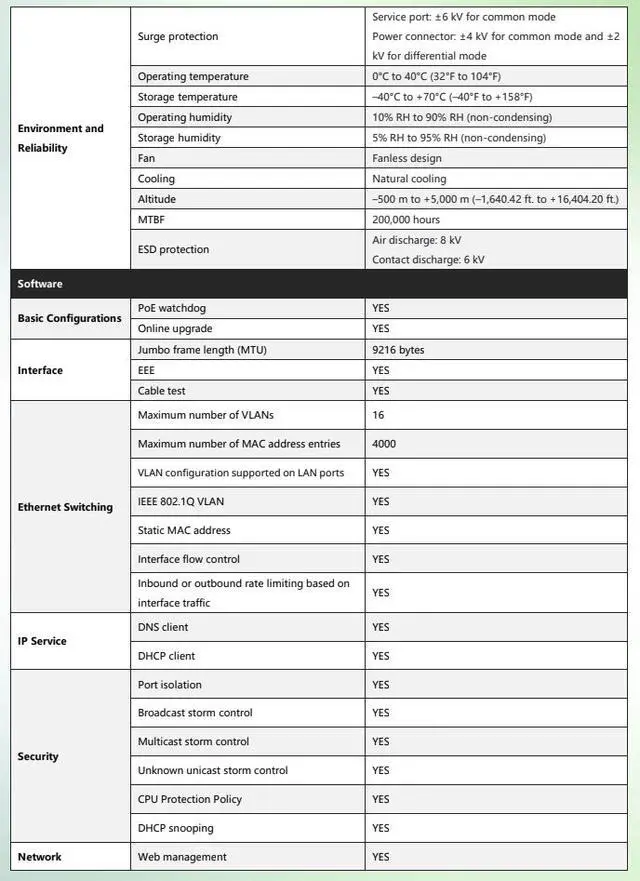

13. Environment: Operating 0°C to 40°C (32°F to 104°F) | MTBF 200,000 hrs

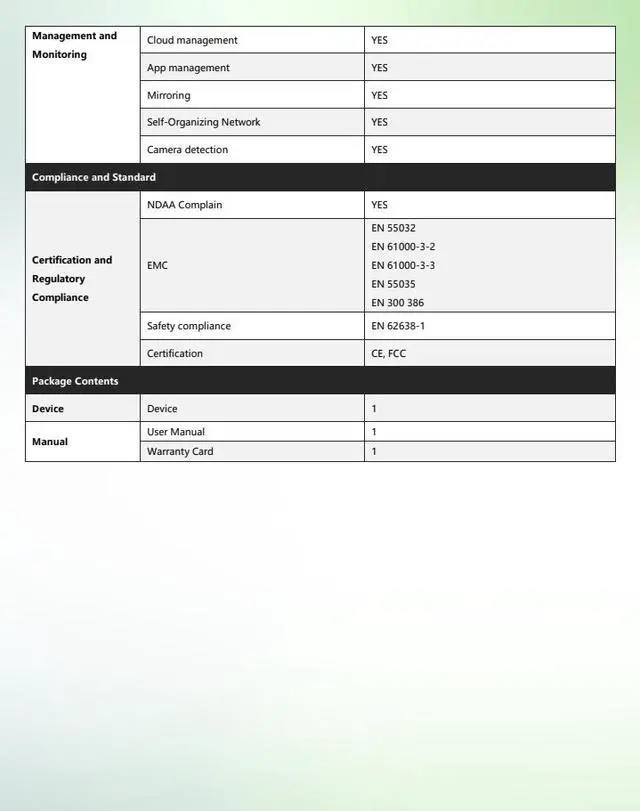

14. Certifications: FCC, IC | NDAA Compliant
15. Warranty: 3 years
16. In the Box: Switch, power cord (1m), user manual, warranty card
