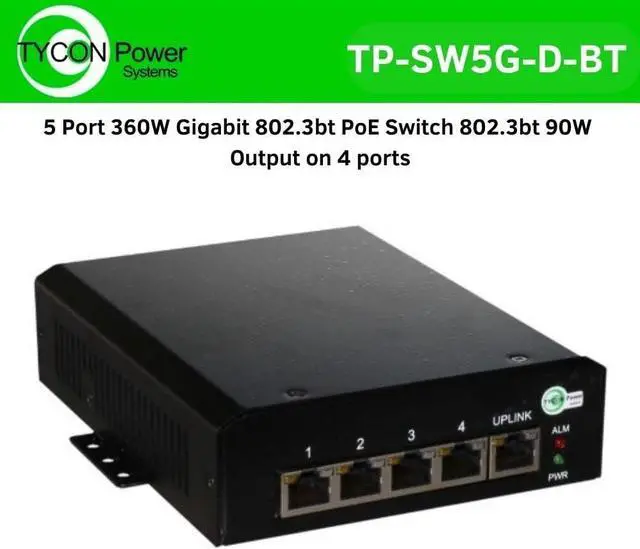

Tycon Power Systems TP-SW5G-D-BT 5 Port 360W Gigabit 802.3bt PoE Switch 802.3bt 90W Output on 4 Ports

SKU: TP-SW5G-D-BT

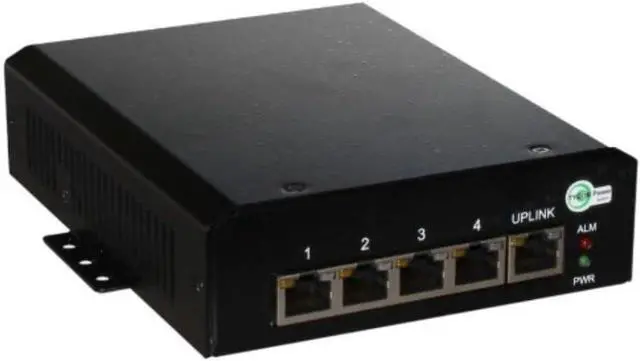

The TP-SW5G-D-BT Power over Ethernet (PoE) 5 Port Gigabit switch offered by Tycon is a fully automatic high speed, high power, Layer 2 Ethernet switch with one 802.3bt PoE input and four 802.3bt PoE outputs. Ports 1-4 are 802.3af/at/bt compatible with up to 90W PoE Out per port utilizing 2 or 4 pairs for power. The Uplink Port 5, is 802.3bt compatible so the switch can accept up to 70W PoE on 4 pairs to power the switch and connected devices remotely over CAT5 or higher Ethernet Cable. The Ethernet spec supports distances up to 100m (328ft). By using as a repeater, 200m total Ethernet distance is realistic.

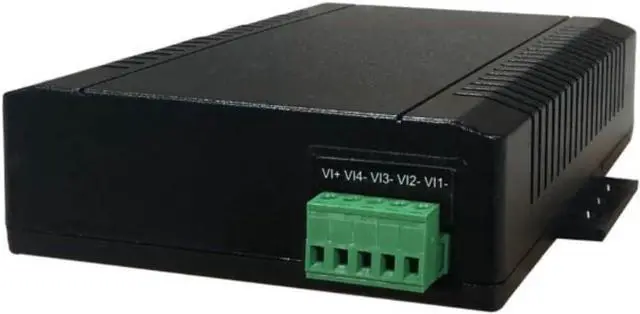

The switch can accept power via two different interfaces: Wire Terminal Connector (10A, approx 500W Max) or via 802.3bt PoE input to Uplink Port 5 (70W Max). Two different power inputs can be used for redundancy. The higher voltage takes priority.

The RJ45 connectors are shielded and grounded to the common FG (Frame Ground) connection. The units have 15kV surge protection on all Ethernet wires and are conformal coated for moisture protection. They have a wide operating temperature range for outdoor and industrial applications.
Features
Mulitple Power Inputs: 802.3bt PoE to Port 5, Wire Terminal
Gigabit Compatible
Built-in Surge Protection
Automatic MDI/MDI-X Crossover
Automatic Speed and Duplex Sensing
Low Self Power and High Temperature Operation
DIN Rail Adapters included

Applications

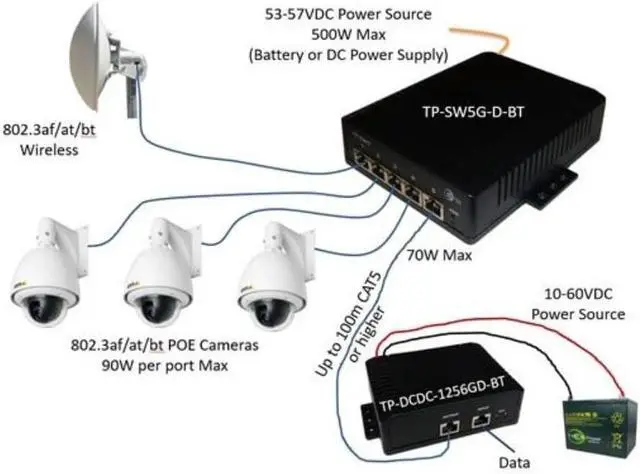

Power 4 802.3af/at devices from an 802.3bt (70W) PoE Input
Power 4 802.3bt (up to 90W) from a wire terminal input
Remote or Local Power for Cameras and Wireless Radios
Also Functions as Ethernet/PoE repeater
PoE Lighting Applications
