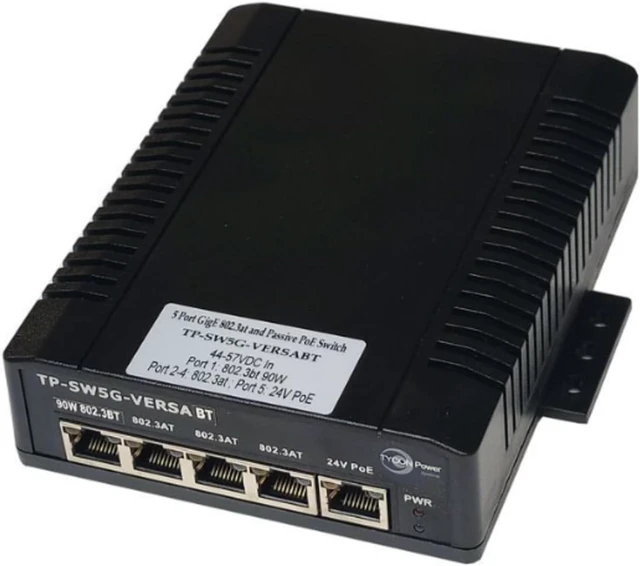

Tycon Power Systems TP-SW5G-VERSABT 5 Port Gigabit Versatile Output PoE Switch, 1 (90W) bt, 3 (30W) at, 1 (12W) 24V PoE

SKU: TP-SW5G-VERSABT
The TP-SW5G-VERSABT Power over Ethernet (PoE) 5 Port Gigabit switch offered by Tycon® is a fully automatic high speed Layer 2 Ethernet switches with multiple function ports. Port 1 is a 90W 4pair 802.3bt PoE port; Port 2,3,4 are 48V 30W 802.3at compatible ports; Port 5 is a 24V 12W Passive PoE port. This allows a customer to power up multiple PoE devices with different power requirements. The switch requires a 44-57VDC (4A) power input.
The units are compatible with Category 5 or higher Ethernet cables. The RJ45 connectors are shielded and grounded to the common FG (Frame Ground) connection. The units have 15kV surge protection on all Ethernet wires and are conformal coated for moisture protection. They have a wide operating temperature range for outdoor and industrial applications.
Features
· One (90W) 802.3bt PoE, Three (30W) 802.3at PoE and one (12W) 24V Passive PoE port
· Gigabit Compatible
· Built-in Surge Protection
· Automatic MDI/MDI-X Crossover
· Automatic Speed and Duplex Sensing
· Low Self Power and High Temperature Operation
· DIN Rail Adapters included


Applications
· Power different PoE devices from a single 48V supply
· Cameras and Wireless Radios
· PoE Lighting Applications
