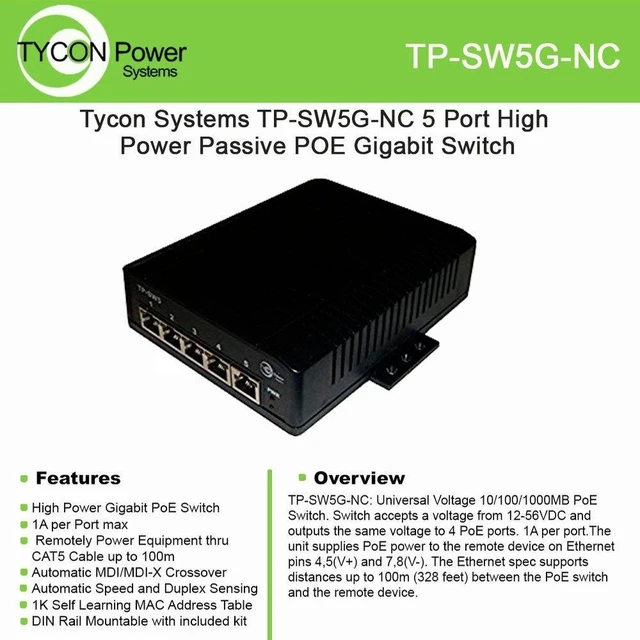

5 Port Unmanaged GigE Passive PoE Layer 2 Netwrk Switch, 12-58VDC Wire Term in, PoE Volt Out = Volt in, PoE Pinout:4,5V+ ;7,8V-, 4X Passive PoE + 1x Uplink Port, Max 1A Out/Port, Incl DIN Rail Mt Kit
- 5 Port Unmanaged Gigabit Passive PoE Layer 2 Network Switch, 12-58VDC Wire Terminal or Passive PoE Input
- 4x Passive PoE Ports + 1x Uplink Port, PoE Voltage out = Input Voltage
- 12V to 58VDC Wire Terminal Input, Accepts 2/4pair PoE Power to Uplink Port
- High Power 10/100 and 1000Mb (G) PoE Switch
- Applications: Wireless Access Points and Client Devices; IP Phone and Security Camera Systems
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
The SW5 Series Power over Ethernet (PoE) switches offered by Tycon Power are fully automatic high speed 5 port Ethernet switches with up to 2A of PoE power per port. Universal Voltage 10/100/1000MB PoE Switch. Switch accepts universal voltage (12- 57VDC) via the wire terminal connector on the back of the switch. Also accepts 12-57VDC (1A max) Passive PoE input on port 5. 1A per port. On the universal voltage models (-NC) the PoE output voltage = the input voltage so it is universal in its application. The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.
