Outdoor PoE Switch LPS1800AF-T1 10-Port Fast Ethernet 802.3af/at PoE Switch with 2 Combo Fiber and Gigabit Fiber/RJ45 Uplink Port
- Unmanaged 10 Port Gigabit PoE Switch with 8 PoE Ports and 2 Combo Gibagit SFP/RJ45 Port and dual power output redundancy, i.e. (120V~240AC and/or 48V DC,)
- Integrated Industrial 3KV Ethernet surge protection
- Up to 10 10/100/1000M self-sensing RJ45 port, support IEEE802.3af/at and PoE+ PoE power supply functions.
- Two 1.25 Gigabit SFP fiber ports are capable of high bandwidth and long-distance transmission
LPS1800AF-T1 (150W) Version:
- 150-Watt total system power for all eight ports. Average of 15.4W per PoE Port, Not to Exceed 150W for a Total of 8 PoE ports
- For Fast outdoor PoE applications
Outdoor PoE Switch LPS1800AF-T1 10-Port Fast Ethernet
- IP68 All Weatherproof For outdoor networks applications E.g.Video Security cameras and WIFI radios.
- Compliant to IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1D, IEEE 802.3af, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.1W, SNMP, IGMP standards
- Internal LEDs for Individual port status: Network Activity, PoE Power, & System Power Limited Warranty
- Small Footprint Enclosure: 12x10x4 Inch Dimensions
- Supports Jumbo Frame in all speeds( Up to 10K bytes packet framed size

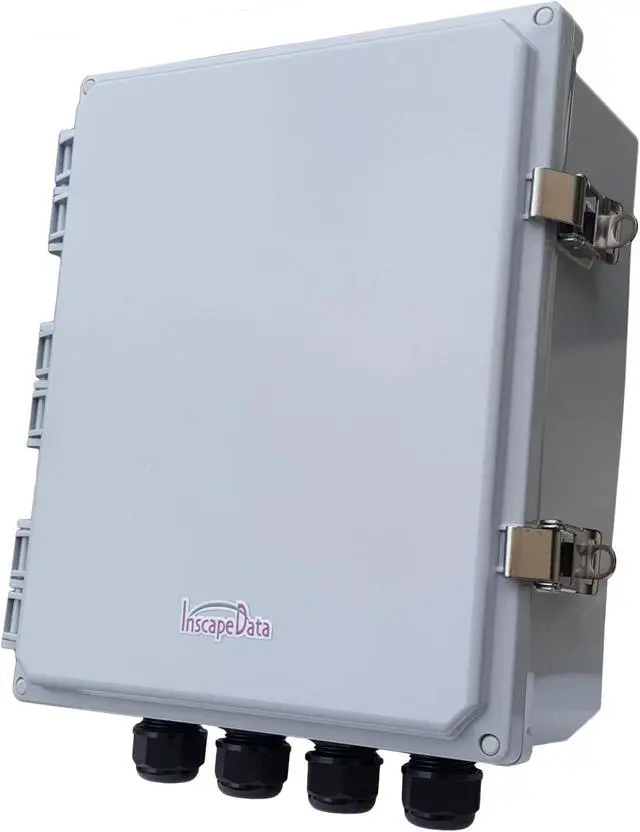

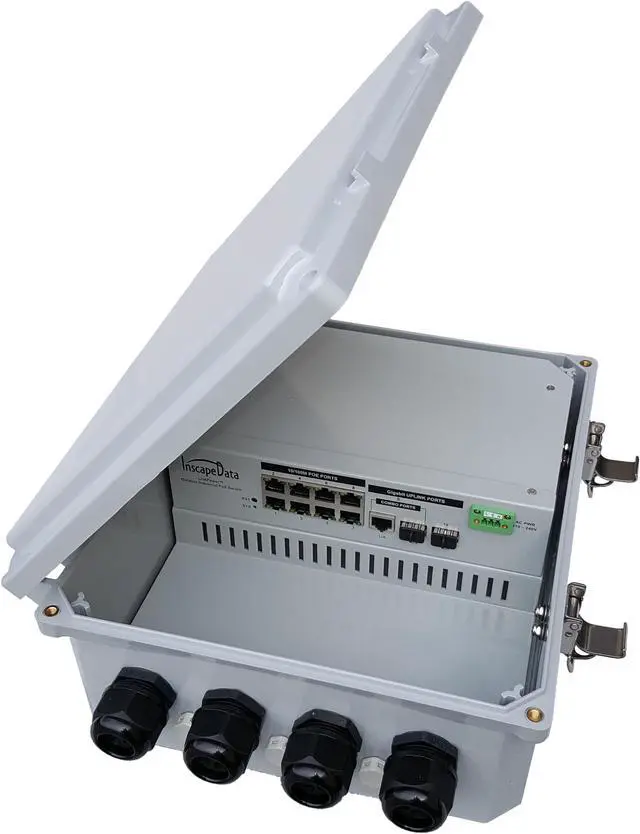

The LinkPower LPS1800AF-T1 Outdoor Fast Ethernet PoE Switch Series offers 10-Port 10/100Mbps unmanaged IEEE 802.3 af PoE (Power over Ethernet) Network Switch with 8 10/100Mbps PoE Ports and 2-Combo Gigabit SFP/RJ45 Port and is the industry first outdoor weatherproof industrial 10/100Mbps Ethernet switch that delivers data and power up to 30W per PoE port (limited to 150W for a total of 8 PoE ports) over one single network cable protected with an IP68 compliant weatherproof enclosure. The outdoor weatherproof rating of the systems is strictly based on how the top cover is closed. For the hinged cover without the four top cover screws, the outdoor weatherproof rating is IP66 and, otherwise, the outdoor rating is IP68 with the four top cover screws securely closed with the enclosure.
LPS1800AF-T1 Outdoor 10/100Mbps PoE Series is designed for industrial and commercial applications, e. g., video surveillance, remote security, wireless mesh, carrier wifi installations, and etc. The terminal equipment, i. e., powered devices, such as weather-proof IP camera, high performance wireless AP and industrial IP telephony. With the two Gigabit fiber ports, it can transfer data up to a distance of 40Km from SFP fiber port to a remote control center and the systems is also offer with powerful anti-electromagnetic interference feature. Additionally, the LPS1800AT Fast Ethernet PoE Switch Series is designed for harsh outdoor environments with features such as a wide working temperature range from -30ºC to +70ºC and 3KV Ethernet port surge protection that can ensure the reliability of the uninterrupted PoE network operations.
NOTE: The LinkPower LPS1800AF-T1 delivers up to 30W and an average of 15.4W per PoE port and is limited to 150W for a total of 8 PoE ports. If your application requires more than 15.4W to 30W per PoE port, please consider the LPS1800AT-T1 model with 240W for a total of 8 PoE ports.
In The Box:
LPS1800AF-T1 (1)

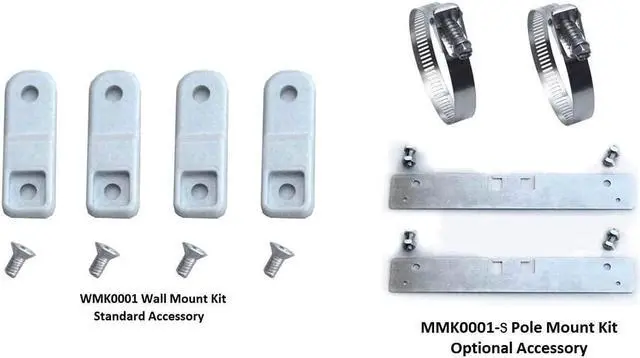

WM0001 Wall Mounting Kit (1)
MMK0001-L Pole Mount Kit (1) (Optional)
AC Power Cord with one 3-PIN AC Power Connector (1)
User Manual (1)
Warranty Sheet (1)
