All-in-One-Box Outdoor LinkPower LPS1800-T1 PoE (Power over Ethernet) Unmanaged Switch series
- IP68 All Weatherproof For outdoor networks applications E.g.Video Security cameras and WIFI radios
- Compliant to IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x,IEEE 802.1D, IEEE 802.3af/at, IEEE 802.1x, IEEE 802.1W standards
- Internal LEDs for Individual port status: Network Activity, PoE Power, & System Power Limited Warranty
- Small Footprint Enclosure -12x10x4 Inch Dimensions
- Supports Jumbo Frame in all speeds( Up to 10K bytes packet framed size
PS1800AT-T1 (240W) Version
- 30W for each port simultaneously
- For high-power and high concentration PoE applications, i.,e. IP security & Wifi radios
- Designed for industrial and commercial applications, e.g., video surveillance, remote security, wireless mesh, and carrier Wi-Fi installations
Outdoor PoE Switch LPS1800AT-T1 10-Port 10/100Mbps 802.3af/at Switch with 2 Combo Gigabit Fiber/RJ45 Uplink Port,
- Unmanaged 10 Port Gigabit PoE Switch with 8 PoE Ports and 2 Combo Gibagit SFP/RJ45 Port and dual power output redundancy, i.e. (120V~240AC and/or 48V DC,)
- Integrated Industrial 3KV Ethernet surge protection
- Up to 10 10/100/1000M self-sensing RJ45 port, support IEEE802.3af/at and PoE+ PoE power supply functions.
- Two 1.25 Gigabit SFP fiber ports are capable of high bandwidth and long-distance transmission

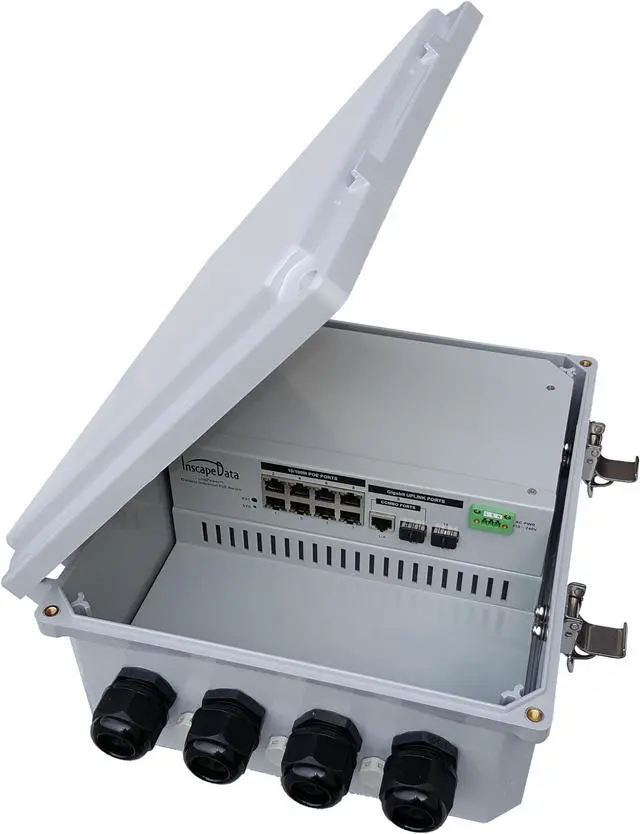

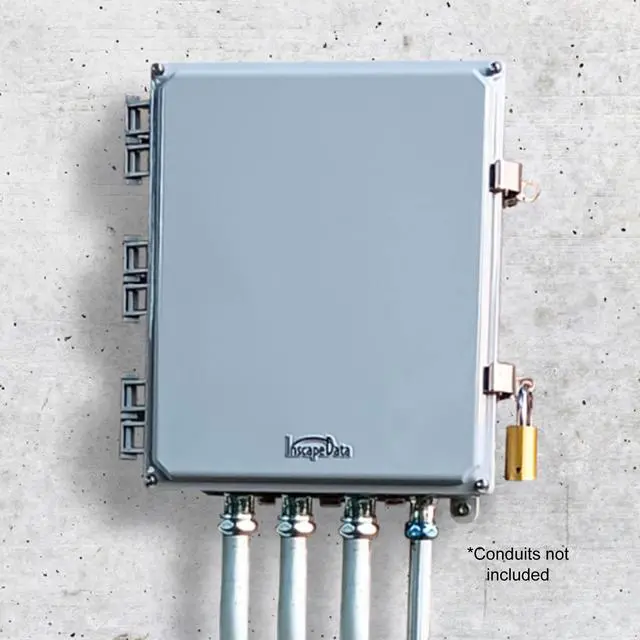

The LinkPower LPS1800AT-T1 Outdoor Fast Ethernet PoE Switch Series offers 10-Port 10/100Mbps unmanaged IEEE 802.3 at/af PoE (Power over Ethernet) Network Switch with 8 10/100Mbps PoE Ports and 2-Combo Gigabit SFP/RJ45 Combo Port and is the industry first outdoor weatherproof industrial 10/100Mbps Ethernet switch that delivers data and power up to 30W DC per PoE port over one single network cable protected with an IP68 compliant weatherproof enclosure. The outdoor weatherproof rating of the systems is strictly based on how the top cover is closed. For the hinged cover without the four top cover screws, the outdoor weatherproof rating is IP66 and, otherwise, the outdoor rating is IP68 with the four top cover screws securely closed with the enclosure.
LPS1800AT-T1 Outdoor 10/100Mbps PoE Series is designed for industrial and commercial applications, e. g., video surveillance, remote security, wireless mesh, carrier wifi installations, and etc. The terminal equipment, i. e., powered devices, such as weather-proof IP camera, high performance wireless AP and industrial IP telephony. With the Gigabit fiber ports, it can transfer data up to a distance of 40Km from SFP fiber port to a remote control center and the systems is also offer with powerful anti-electromagnetic interference feature. Additionally, the LPS1800AT-T1 Fast Ethernet PoE Switch Series is designed for harsh outdoor environments with features such as a wide working temperature range from -30ºC to +70ºC and 3KV Ethernet port surge protection that can ensure the reliability of the uninterrupted PoE network operations.
In The Box:
LPS1800AT-T1 (1)
WM0001 Wall Mounting Kit (1)
MMK0001-L Pole Mount Kit (1) (Optional)
AC Power Cable with one 3-PIN AC Power Connector (1)
User Manual (1)
Warranty Sheet (1)
