Outdoor PoE Switch LPS2802AF-T1 Outdoor 10-Port Unmanaged Gigabit with 2 SFP Fiber Optical Uplink Ports
- All-in-One-Box Outdoor LinkPower LPS2802-T1 PoE (Power over Ethernet) Unmanaged Switch series
- Unmanaged 10 Port Gigabit PoE Switch with 8 PoE Ports and 2 SFP Uplink Ports and dual power output redundancy, i.e. (120V~240AC and/or 48V DC,)
- Integrated Industrial 6KV Ethernet surge protection
- Up to eight 10/100/1000M self-sensing RJ45 port, support IEEE802.3af/at and PoE+ PoE functions.
- Two 1.25 Gigabit SFP fiber ports are capable of high bandwidth and long-distance transmission
LPS2802AF-T1 (150W) Version
- 150-Watt total system power for all 10 ports. Average of 15.4W per PoE Port, Not to Exceed 150W for a Total of 8 PoE ports
- For basic to average outdoor PoE applications
Outdoor PoE Switch LPS2802AF-T1 Outdoor 10-Port Unmanaged Gigabit with 2 SFP Fiber Optical Uplink Ports

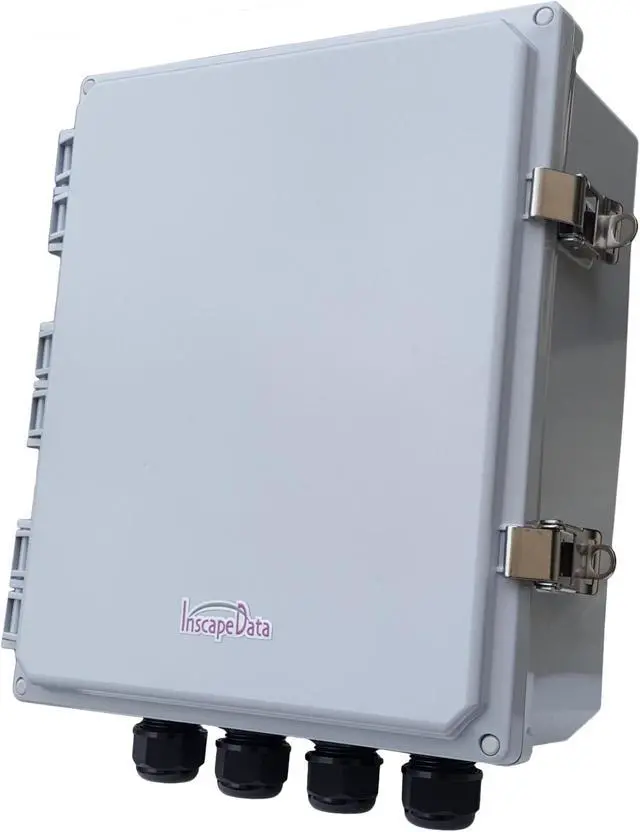

- IP68 All Weatherproof For outdoor networks applications E.g. Video Security cameras and WIFI radios.
- Compliant to IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEEC802.3ab, IEEE 802.3x, IEEE 802.1D, IEEE 802.3af/at,IEEE 802.1x, IEEE 802.1W standards
- Small Footprint Enclosure - 12x10x4 Inch Dimensions
- 48G non-blocking backplane bandwidth & 8K MAC address table, 6K Ethernet port surge protection

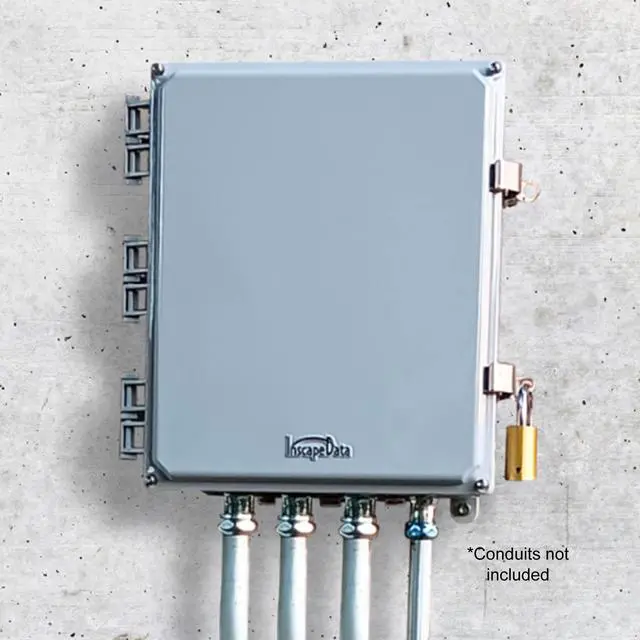

Outdoor PoE Switch Installations
Outdoor PoE Switch Installations

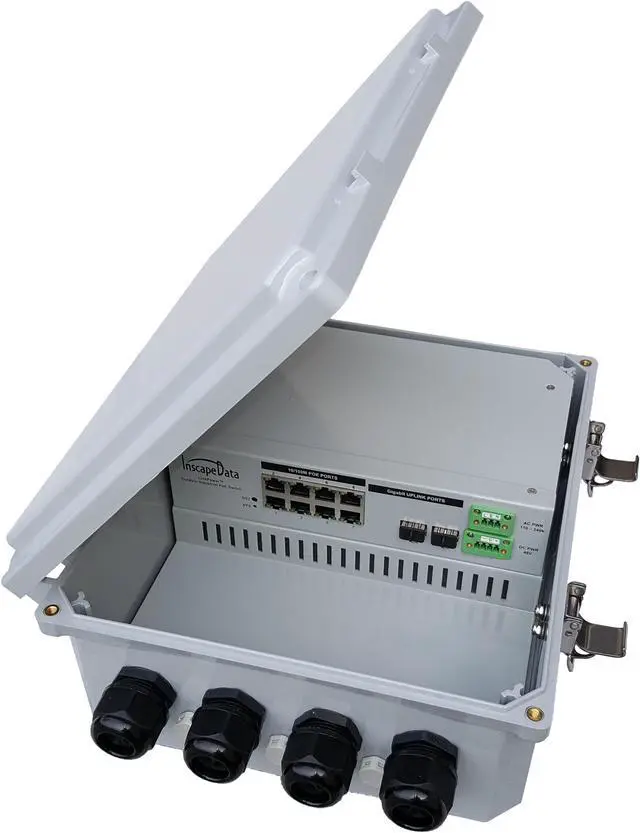

The LinkPower LPS2802AF-T1 is All Weather 10-Port Gigabit PoE (Power over Ethernet) Switch with 8 Gigabit PoE Ports and 2 SFP Fiber Optical Uplink Ports is the industry first outdoor weatherproof high speed gigabit Ethernet switch that delivers data and power up to 30W per PoE port (limited to 150W for a total of 8 PoE ports) over one single network cable protected with an IP68 compliant weatherproof enclosure. The outdoor weatherproof rating of the systems is strictly based on how the top cover is closed. For the hinged cover without the four top cover screws, the outdoor weatherproof rating is IP66 and, otherwise, the outdoor rating is IP68 with the four top cover screws securely closed with the enclosure.
The LPS2802AF-T1 all weather Gigabit PoE switch is designed for industrial and commercial applications, e. g., video surveillance, remote security, wireless mesh, and carrier wifi installations. The remote manageable features offered by the LPS2802AF-T1 will greatly reduce the daily maintenance cost.
LPS2802AF-T1 All Weather 10-Port Gigabit PoE is an unmanaged network switch is designed to meet the accelerating demand for powering the most demanding outdoor PoE devices for up to 30W per PoE port and is limited to 150W for total eight PoE ports. LPS2800AF-T1 All Weather Gigabit PoE Switch provide internal LED displays that show device status for easy power management and troubleshooting. The PoE technology conveniently eliminates the need to install networked devices, such as Inscape Datas IP cameras and SB300/BR300, and SB3000/BR3000 wireless products, thereby reducing equipment and installation costs.
NOTE: The LinkPower LPS2802AF-T1 delivers up to 30W and an average of 15.4W per PoE port and is limited to 150W for a total of 8 PoE ports. If your application requires more than 15.4W to 30W per PoE port, please consider the LPS2802AT-T1 model with 240W for a total of 8 PoE ports.
In The Box:
LPS2802AF-T1 (1)

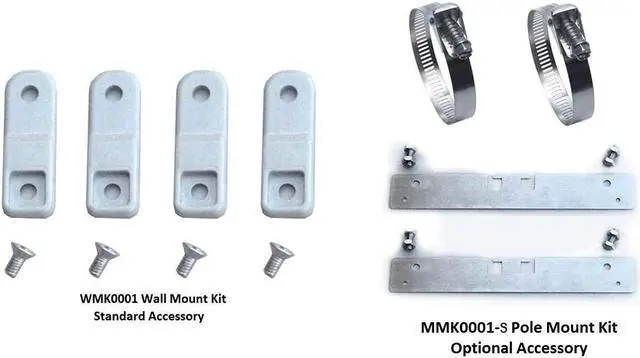

WM0001 Wall Mounting Kit (1)
MMK0001-L Pole Mount Kit (1) (Optional)
AC Power Cord with one 3-PIN AC Power Connector (1)
DC Power Cord with one 4-PIN AC Power Connector (1) (Optional)
User Manual (1)
Warranty Sheet (1)
