All-in-One-Box Outdoor LinkPower LPS1800FE-T1 PoE (Power over Ethernet) Managed Switch series
- Managed 10 Port Gigabit PoE Switch with 10 PoE Ports and 2 Combo Gigabit SFP/RJ45 Port and dual power input redundancy, i.e. (120V~240AC and/or 48V DC)
- Port configuration, i.e., enable/disable, speed control PoE configuration, i.e., PoE modes (802.3af & 802.3at), scheduling, & PoE Priority
- supports VLAN, GVRP, Dynamic VLAN MAC Address Authentication, IGMP, LACP Aggregation, STP/RSTP, ERPS, & LLDP
- Switch management via web-based (web browser) or Command Line Interface (CLI)
- QoS per port on policing, scheduler, traffic shaping, and store control
LPS1800AFM-T1 (150W) Version:
150-Watt total system power for all eight ports. Average of 15.4W per PoE Port, Not to Exceed 150W for a Total of 8 PoE ports
For terminal equipment, i.e., powered devices, such as weather-proof IP cameras, high-performance wireless AP, and industrial IP telephony.
All-in-One-Box Outdoor LinkPower LPS1800FE-T1 PoE (Power over Ethernet) Managed Switch series
- IP68 All Weatherproof For outdoor networks applications
- Port security, allows setting different security levels on each port with a password, 802.1x, IP & MAC address Guard, RADIUS, & TACACS+
- Transfer data up to a distance of 120Km from the SFP fiber port to a remote control center
- Port thermal protection and Powerful anti-electromagnetic interference feature
- Small Footprint Enclosure - 12x10x4 Inch Dimensions

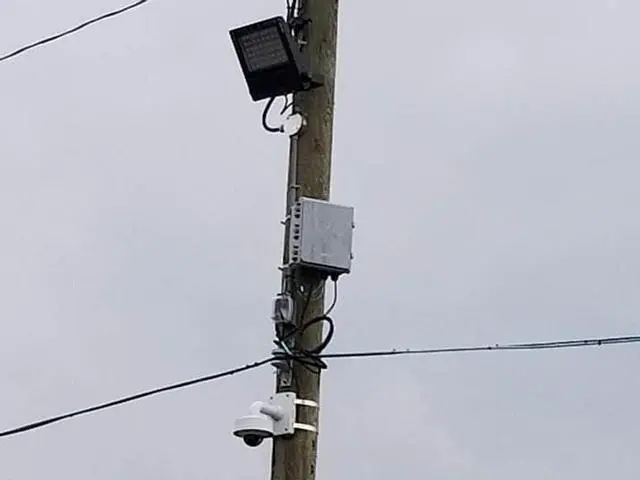

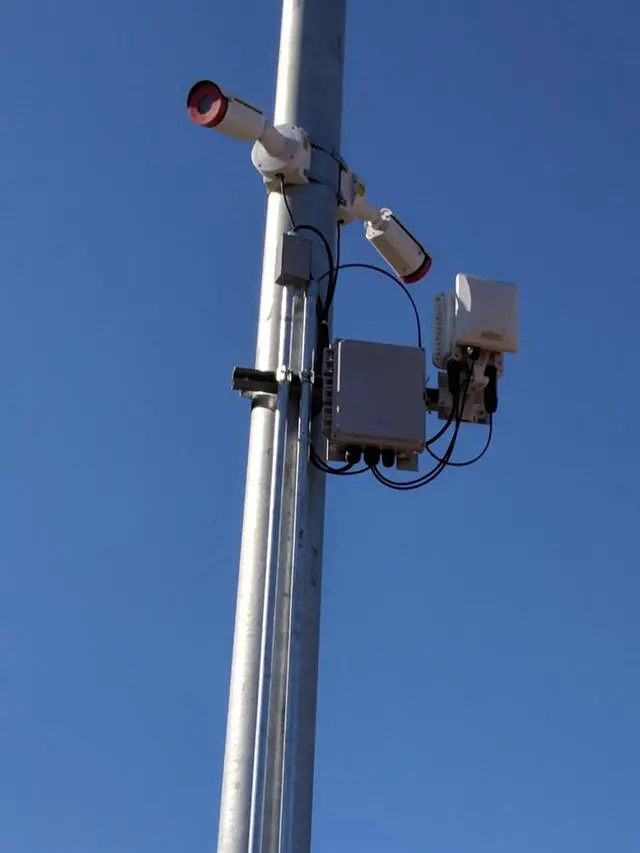

Outdoor PoE Switch Installations
Outdoor PoE Switch Installations

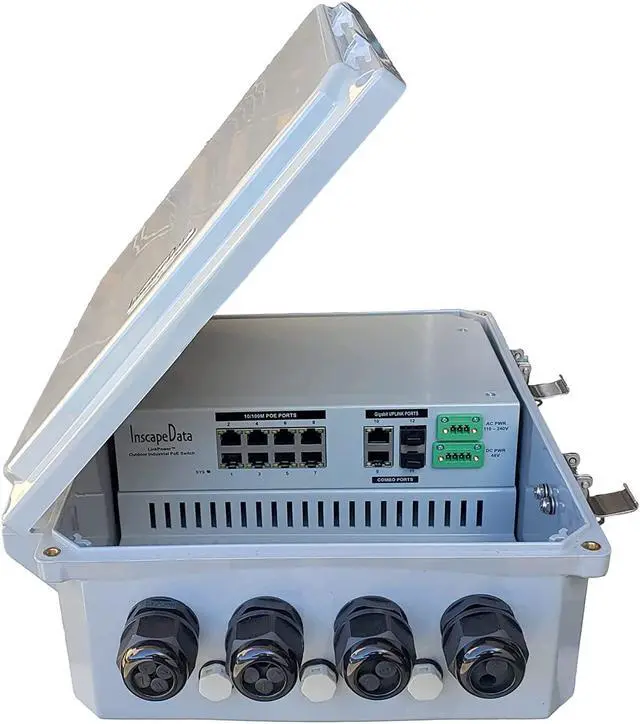

The LinkPower LPS1800AFM-T1 Outdoor Fast Ethernet PoE Switch Series offers 10-Port 10/100Mbps managed IEEE 802.3 af/at PoE (Power over Ethernet) Network Switch with 8 10/100Mbps PoE Ports and 2-Combo Gigabit SFP/RJ45 Uplink Port and is the industry first outdoor weatherproof industrial 10/100Mbps Ethernet switch that delivers data and power up to 30W per PoE port (limited to 150W for a total of 8 PoE ports) over one single network cable protected with an IP68 compliant weatherproof enclosure. The outdoor weatherproof rating of the systems is strictly based on how the top cover is closed. For the hinged cover without the four top cover screws, the outdoor weatherproof rating is IP66 and, otherwise, the outdoor rating is IP68 with the four top cover screws securely closed with the enclosure.
LPS1800AFM-T1 Outdoor 10/100Mbps Managed PoE Switch is designed for industrial and commercial applications, e. g., video surveillance, remote security, wireless mesh, carrier wifi installations, and etc. The terminal equipment, i. e., powered devices, such as weather-proof IP camera, high performance wireless AP and industrial IP telephony. With the two Gigabit fiber ports, it can transfer data up to a distance of 120Km from SFP fiber port to a remote control center and the systems is also offer with powerful anti-electromagnetic interference feature.
Additionally, the LPS1800AFM-T1 Fast Ethernet PoE Switch Series is designed for harsh outdoor environments with features such as a wide working temperature range from -30ºC to +70ºC and 3KV Ethernet port surge protection that can ensure the reliability of the uninterrupted PoE network operations.
NOTE: The LinkPower LPS1800AFM-T1 delivers up to 30W and an average of 15.4W per PoE port and is limited to 150W for a total of 8 PoE ports. If your application requires more than 15.4W to 30W per PoE port, please consider the LPS1800ATM-T1 model with 240W for a total of 8 PoE ports.
In The Box:
LPS1800AFM-T1 (1)

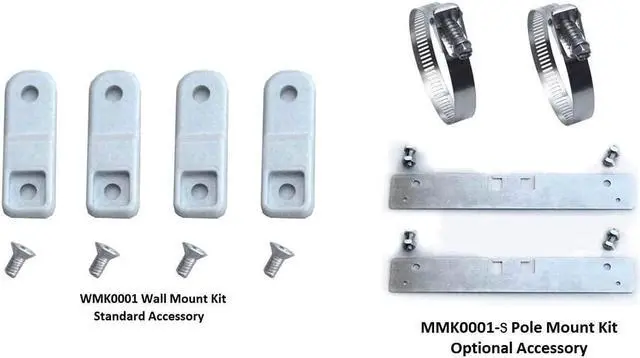

WM0001 Wall Mounting Kit (1)
MMK0001-L Pole Mount Kit (1) (Optional)
AC Power Cord with one 3-PIN AC Power Connector (1)
User Manual (1)
Warranty Sheet (1)
