All-in-One-Box LinkPower LPS3802-T1 Outdoor PoE (Power over Ethernet) Switch series
- All-in-One-Box Outdoor LinkPower LPS3802-T1 PoE (Power over Ethernet) managed Switch series
- Outdoor managed 10 Port Gigabit PoE Switch with two SFP Uplink Ports and dual power output redundancy, i.e. (120V~240AC and/or 48V DC,)
- Integrated Industrial 3KV Ethernet surge protection
- Remote system reset, Port Configuration, I,e., enable/disable, speed control
- PoE configuration, i.e., PoE modes (802.3af, 802.3at) & PoE Priority based on the models
- Two 1.25 Gigabit SFP fiber ports are capable of high bandwidth and long-distance transmission
LPS3802ATM-T1 (240W) Version:
- 30W for four PoE ports simultaneously
- For mid to high-end outdoor PoE applications
- Designed for industrial and commercial applications, e.g., video surveillance, remote security, wireless mesh, and carrier Wi-Fi installations.
All-in-One-Box LinkPower LPS3802-T1 Outdoor PoE (Power over Ethernet) Switch series
- IP68 All Weatherproof For outdoor networks applications E.g. Video Security cameras and WIFI radios.
- Compliant to IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEEC802.3ab, IEEE 802.3x, IEEE 802.1D, IEEE 802.3af/at, IEEE 802.1x, IEEE 802.1W standards
- Supports VLAN, GVRP, Dynamic VLAN MAC Address Authentication, IGMP, LACP Aggregation, STP, ERPS, & LLDP
- Small Footprint Enclosure - 12x10x4 Inch Dimensions
- QoS per port on policing, scheduler, traffic shaping, and store control

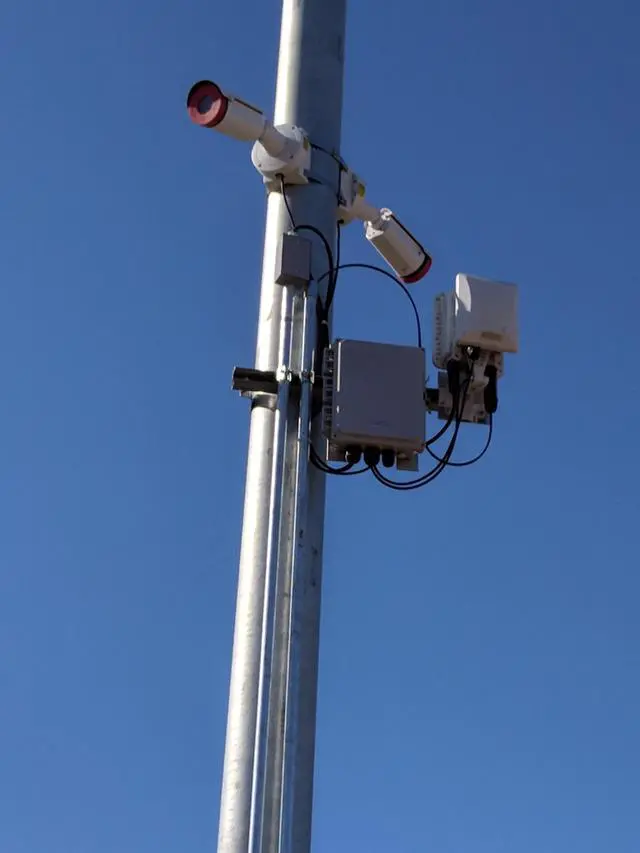

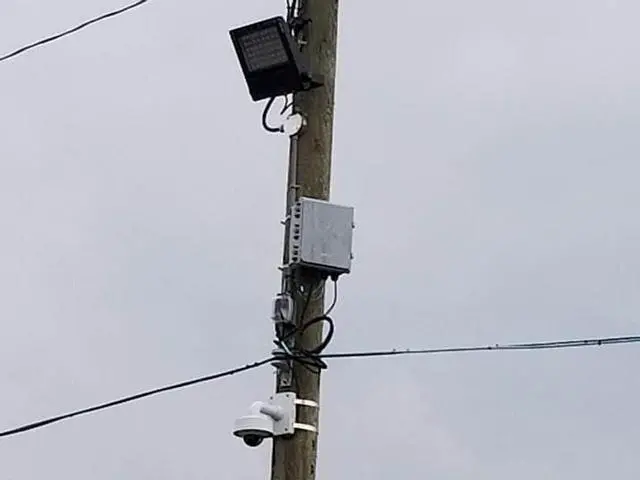

Outdoor PoE Switch Installations
Outdoor PoE Switch Installations

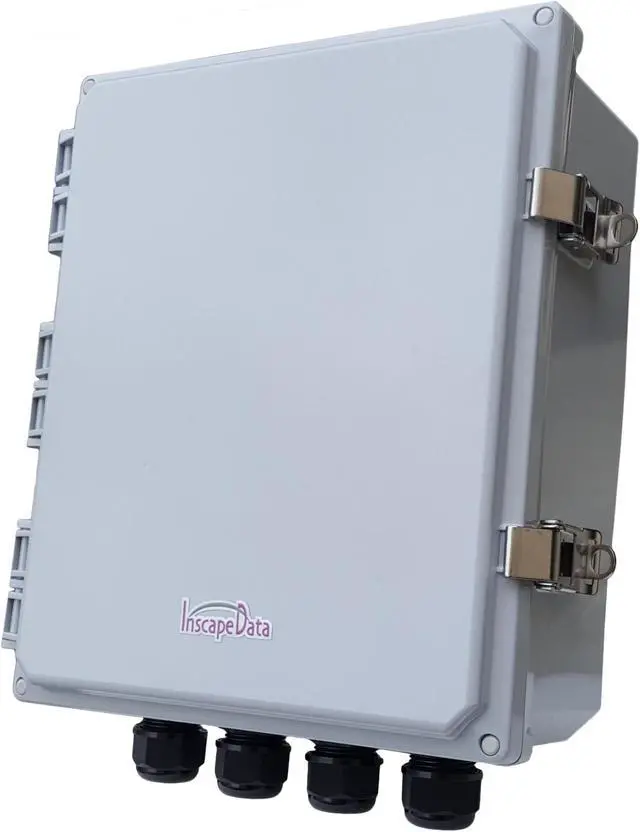

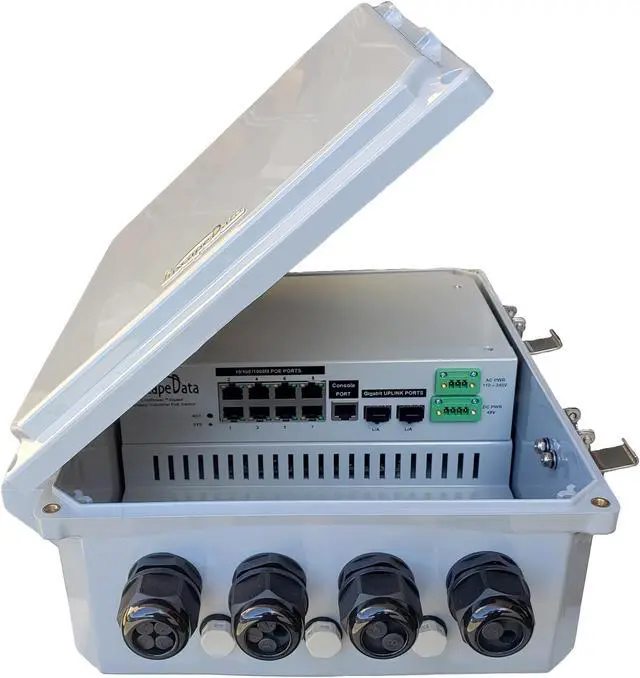

The LinkPower LPS3802ATM-T1 is All Weather 10-Port Managed Gigabit PoE (Power over Ethernet) Switch with Eight PoE Ports and Two Gigabit SFP Fiber Optical Uplink Ports is the industry first outdoor weatherproof high speed gigabit Ethernet switch with dual power input redundancy, i. e., 120V~240AC and/or 48V DC input, that delivers data and power over one single network cable protected with an IP68 compliant weatherproof enclosure. The outdoor weatherproof rating of the systems is strictly based on how the top cover is closed. For the hinged cover without the four top cover screws, the outdoor weatherproof rating is IP66 and, otherwise, the outdoor rating is IP68 with the four top cover screws securely closed with the enclosure.
The LPS3802ATM-T1 all weather Gigabit PoE switch is designed for industrial and commercial applications, e. g., video surveillance, remote security, wireless mesh, and carrier wifi installations. The remote manageable features offered by the LPS3802ATM-T1 will greatly reduce the daily maintenance cost. LPS3802ATM-T1 All Weather 8-Port Gigabit PoE is a managed network switch with Link Aggregation, VLAN, Trunking, and QoS technology to meet the accelerating demand for powering the most demanding outdoor PoE devices for up to 30W per PoE port.
In addition, the LPS3802ATM-T1 supports IEEE 802.1 g VLAN and port based IEEE 802.1 p QoS. LPS3802ATM-T1 All Weather Managed 8-Port Gigabit PoE Switch provide internal LED displays that show device status for easy power management and troubleshooting. The PoE technology conveniently eliminates the need to install networked devices, such as Inscape Datas IP cameras and SB300/BR300, and SB3000/BR3000 wireless products, thereby reducing equipment and installation costs.
In The Box:
LPS3802ATM-T1 (1)

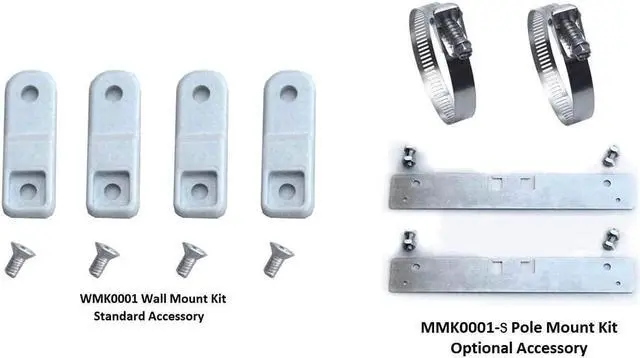

WM0001 Wall Mounting Kit (1)
MMK0001-L Pole Mount Kit (1) (Optional)
AC Power Cord with one 3-PIN AC Power Connector (1)
DC Power Cord with one 4-Pin DC Power Connector (Optional)
User Manual (1)
3-Year Warranty Sheet (1)
