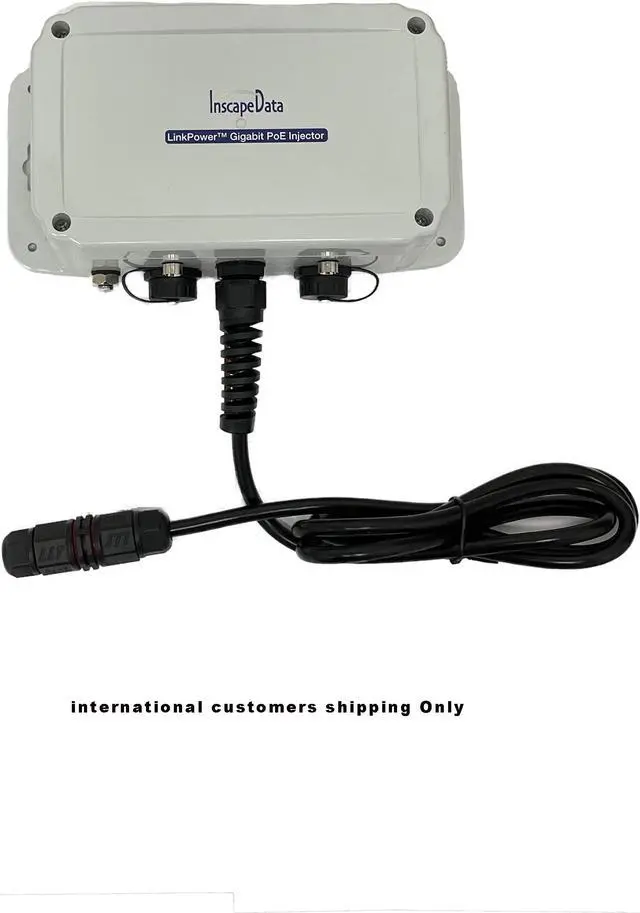

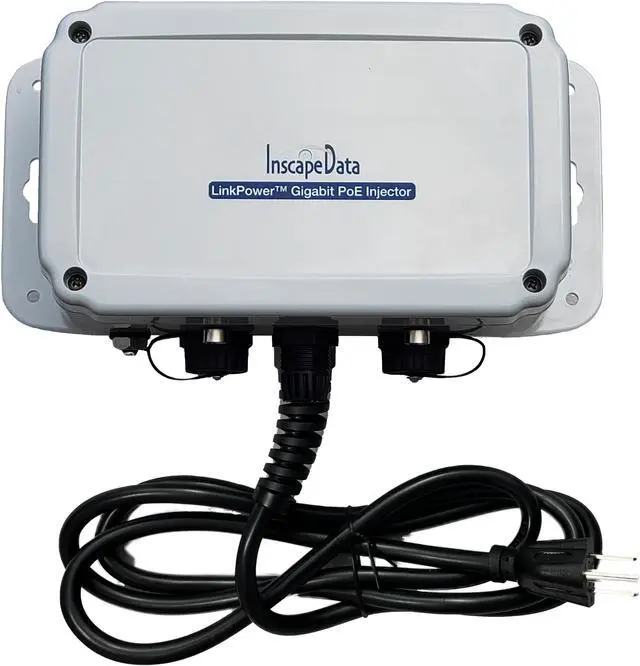

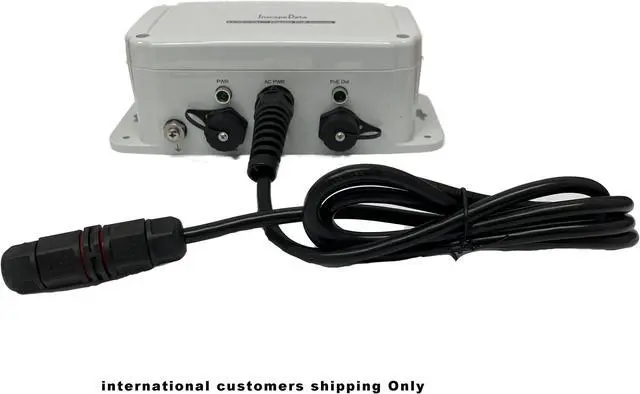

The PIS2060 Two Port 10/100/1000Mbps PoE Injector, Supports IEEE 802.3 bt Class 6, PoE
Port Output: 60W DC and other following key features:
Built-in AC to DC power supply to deliver power over an Ethernet cable to all Type 1/ 15.4W, Type 2/30W, and Type 3/60W
Two 10/100/1000 Mbps RJ45 ports
Support network port, lightning-proof power input port (the secondary lightning protection)
The RJ45 PoE pin output is four-line pairs of twisted pair, the positive power supply side is 1/2 or 4/5 line pair, and the negative power supply side is 3/6 or 7/8 line pair
PIS2060 supports IEEE 802.3 bt high power standard and are designed with Texas Instruments' latest TPS23881 chipset, backward compatible with IEEE 802.3 af/IEEE 802.3 at standards
The PoE output power is 60W, output voltage is 43.2 ~ 52.8V, and the total power is 65W
IP67 Compliant Rating and Water Tight Connectors Based on Patent Pending Technology

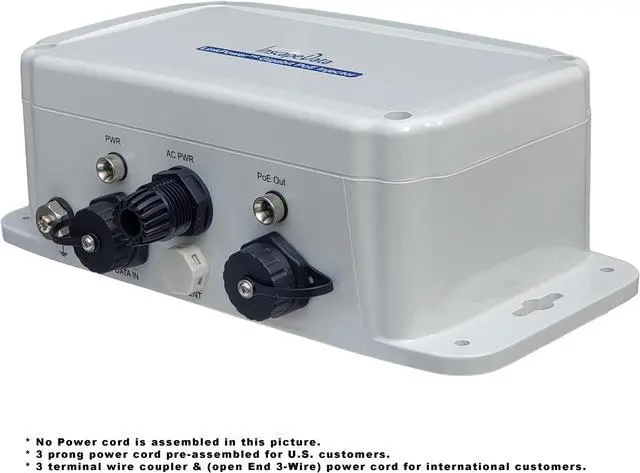

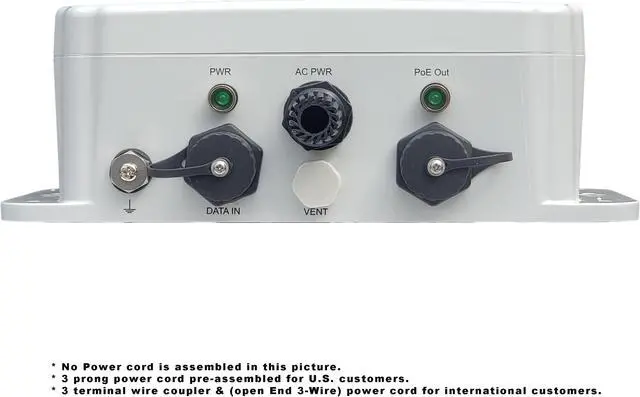

External LEDs - Highly Visible LED Indicator for Ethernet Link, PoE Power, System Power, & AC Output Port.

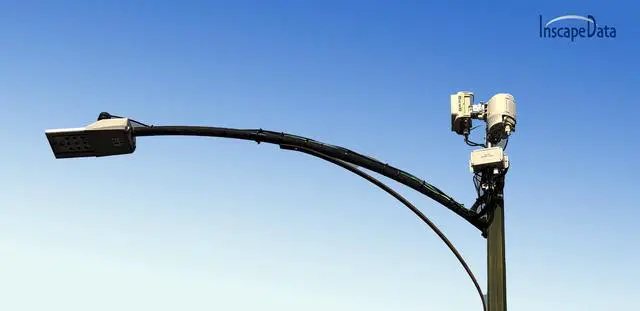

No fans, natural cooling, small and exquisite, and no noise design, suitable for outdoor installation
IP67 weatherproof compliant,
operating temperature: -22ºF to +158ºF (-30ºC to +70ºC)
