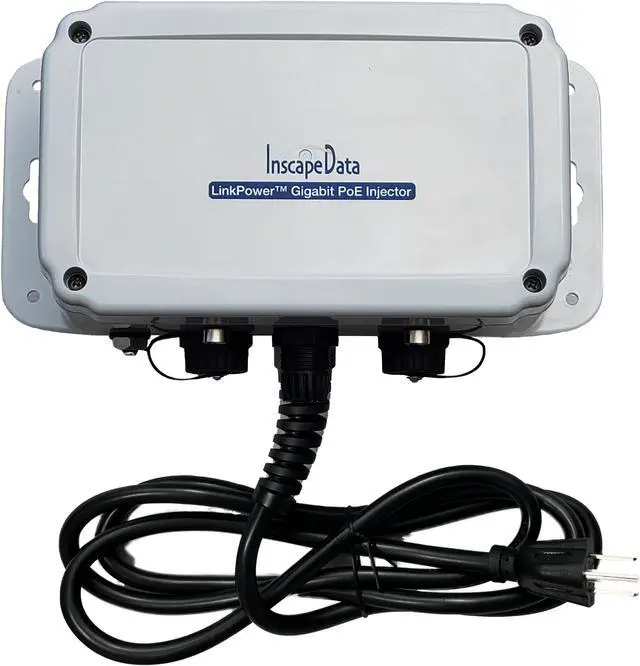

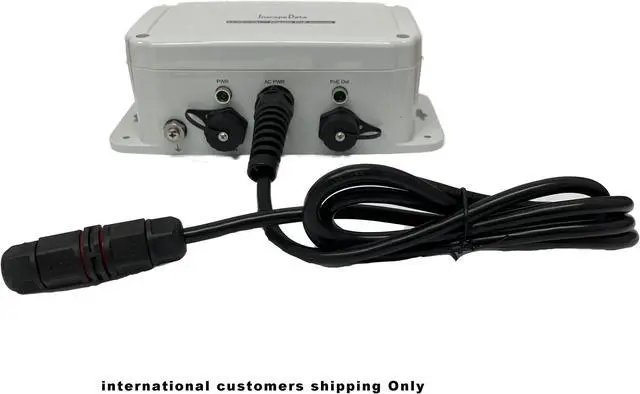

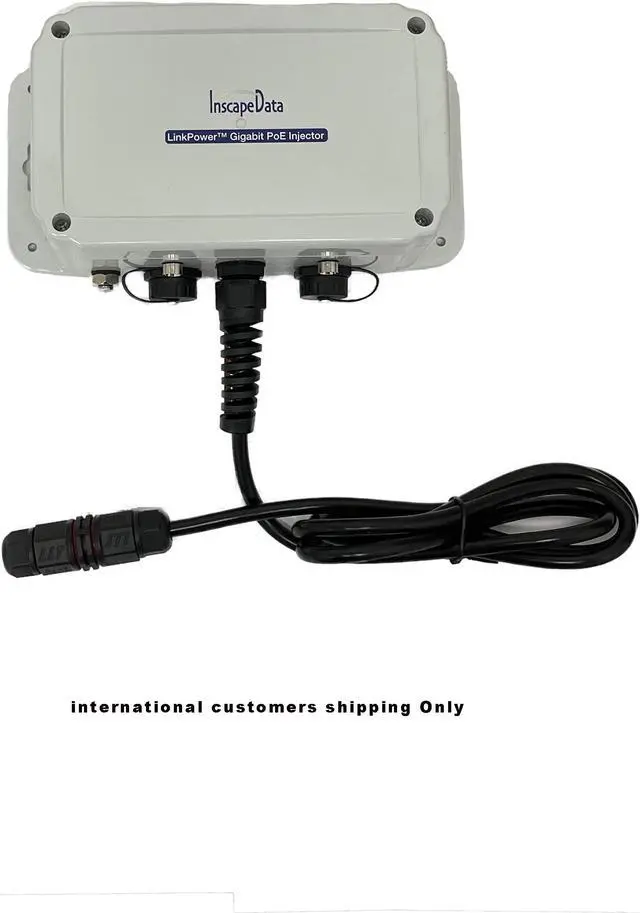

LinkPower PIS2095 Outdoor 2-Port Gigabit PoE Injector, 802.3bt, Up to 90W, 3-Year Warranty
- Built-in AC to DC power supply to deliver power over an Ethernet cable to all Type 1/15.4W, Type 2/30W, Type 3/60W, and Type 4/95W powered devices
- 2x 10/100/1000 Mbps RJ45 ports and support network port, lightning-proof power input port (the secondary lightning protection)
- PoE power supply type is four line pairs of twisted pair, the positive power supply side is 1/2 or 4/5 line pair, and the negative power supply side is 3/6 or 7/8 line pair
- PoE PSE output power is up to 90W, output voltage is 43.2~52.8V , and the total power is 100.8W
- External LEDs - Highly Visible LED Indicator for Ethernet Link, PoE Power, System Power, & AC Output Port
- No fans, natural cooling, small and exquisite, no noise design, suitable for outdoor installation
- IP67 weatherproof compliant, operating temperature:-22ºF to +158ºF (-30ºC to +70ºC)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The PIS2095 Two Port 10/100/1000Mbps PoE Injector, Supports IEEE 802.3 bt Class 8, PoE
Port Output: 90W DC and other following key features:
Built-in AC to DC power supply to deliver power over an Ethernet cable to all Type 1/ 15.4W, Type 2/30W, Type 3/60W, and Type 4/95W powered devices
Two 10/100/1000 Mbps RJ45 ports
Support network port, lightning-proof power input port (the secondary lightning protection)
The RJ45 PoE PIN output is four-line pairs of twisted pair, the positive power supply side is 1/2 or 4/5 line pair, and the negative power supply side is 3/6 or 7/8 line pair
PIS2095 supports IEEE 802.3 bt high power standard and are designed with Texas Instruments' latest TPS23881 chipset, backward compatible with IEEE 802.3 af/IEEE 802.3 at standards
The PoE output power is 95W, output voltage is 47.04 ~ 50.4V, and the total power is 100.8W
IP67 Compliant Rating and Water Tight Connectors Based on Patent Pending Technology
External LEDs - Highly Visible LED Indicator for Ethernet Link, PoE Power, System Power, & AC Output Port.
No fans, natural cooling, small and exquisite, and no noise design, suitable for outdoor installations
IP67 weatherproof compliant,
operating temperature: -22ºF to +158ºF (-30ºC to +70ºC)
Port Output: 90W DC and other following key features:
Built-in AC to DC power supply to deliver power over an Ethernet cable to all Type 1/ 15.4W, Type 2/30W, Type 3/60W, and Type 4/95W powered devices
Two 10/100/1000 Mbps RJ45 ports
Support network port, lightning-proof power input port (the secondary lightning protection)
The RJ45 PoE PIN output is four-line pairs of twisted pair, the positive power supply side is 1/2 or 4/5 line pair, and the negative power supply side is 3/6 or 7/8 line pair
PIS2095 supports IEEE 802.3 bt high power standard and are designed with Texas Instruments' latest TPS23881 chipset, backward compatible with IEEE 802.3 af/IEEE 802.3 at standards
The PoE output power is 95W, output voltage is 47.04 ~ 50.4V, and the total power is 100.8W
IP67 Compliant Rating and Water Tight Connectors Based on Patent Pending Technology
External LEDs - Highly Visible LED Indicator for Ethernet Link, PoE Power, System Power, & AC Output Port.
No fans, natural cooling, small and exquisite, and no noise design, suitable for outdoor installations
IP67 weatherproof compliant,
operating temperature: -22ºF to +158ºF (-30ºC to +70ºC)
