8 Port Gigabit PoE Switch with 2 Gigabit Uplink, 1000Mbps, 802.3af/at, 120W Built-in Power, Vlan, Unmanaged Metal Plug and Play,Ideal for NVR and Power Over Ethernet IP Cameras

NO 8-Port Gigabit PoE Switch with 2 Gigabit Uplink

Plug-and-play unmanaged PoE switch designed for PoE IP cameras, NVR systems, and small network expansions.

Key Highlights

• 8x Gigabit PoE+ ports (IEEE 802.3af/at) + 2x Gigabit uplink ports
• Total PoE budget: 120W (up to 30W per PoE port)
• Built-in power supply (AC cable included)
• 3 modes: Default / VLAN isolation / Extend (CCTV) mode
• Fanless metal housing for silent operation
• 4KV lightning/surge protection

Compatibility Notes (Important)

• Provides Active PoE via IEEE 802.3af/at for standard 48V PoE devices.
• Passive PoE devices and non-PoE devices receive data only (no power). Use a separate power adapter or an active PoE splitter if power is required.
• 24V passive wireless APs are not supported directly; use a suitable PoE splitter/converter if needed.

Whats in the Box

• 1 x (8+2) Gigabit Active PoE Switch (120W)
• 1 x AC Power Cable
• 1 x User Manual

Specifications (Provided)

• Data rate: 10/100/1000 Mbps per port
• Voltage: 48V
• Max power: 120W
• Enclosure: Aluminum/metal
• Operating temperature (upper rating): 55°C
• Dimensions: 7.87" x 4.72" x 1.57"
• Warranty: 1-year replacement + lifetime technical support

FAQ

• Q: Will this PoE switch power non-PoE devices?
• A: No. Non-PoE devices will get data only; power must be provided separately or via an active PoE splitter.
• Q: Does it work with 24V passive PoE wireless access points?
• A: Not directly. It supports IEEE 802.3af/at (48V) active PoE; use an appropriate PoE splitter/converter for devices that require 24V passive PoE.
• Q: How many cameras can I run on this switch?
• A: It depends on each cameras wattage. The switch provides up to 120W total PoE budget, with up to 30W maximum per PoE port.

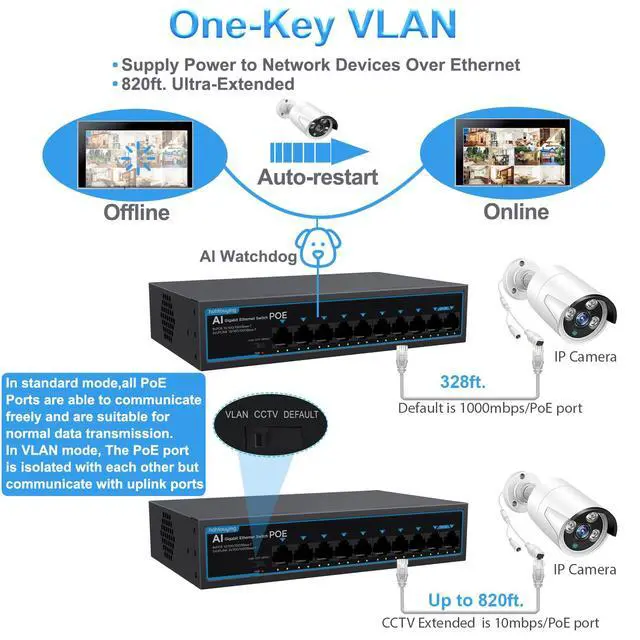

• Q: What is VLAN mode used for on an unmanaged switch?
• A: VLAN mode isolates downlink ports from each other while allowing communication to the uplink ports, helping reduce interference between cameras and improving network stability.
• Q: Can I extend PoE distance for long camera cable runs?
• A: Yes. Extend/CCTV mode supports transmission distance up to 820 ft (250 m), depending on cabling and device requirements.
