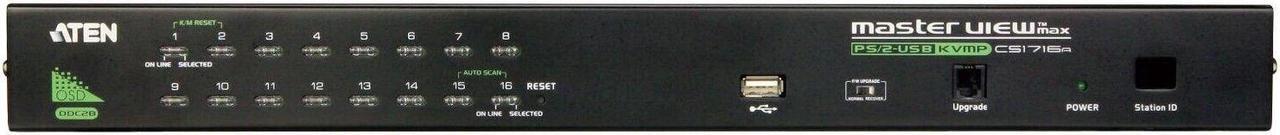

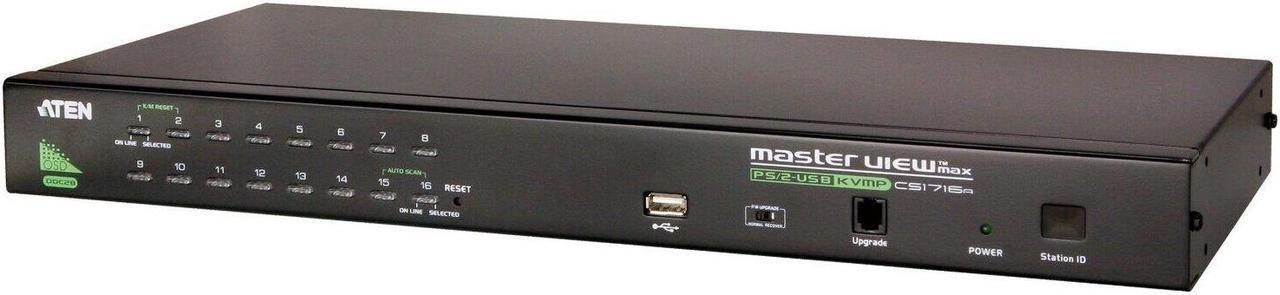

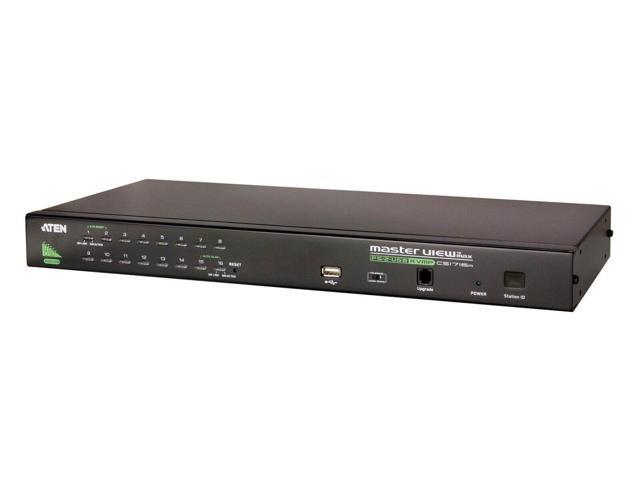

Aten CS1716A 16-Port PS/2-USB VGA KVM Switch with Daisy-Chain Port and USB
- Computer Connections
- Direct 16
- Maximum 512 (via Daisy-chain)
- Port Selection OSD, Hotkey, Pushbutton

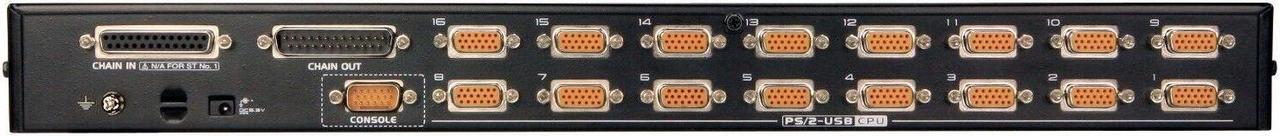

- Connectors
- Console Ports 1 x SPHD-18 Male (Yellow)
- KVM Ports 16 x SPHD-15/17 Female (Yellow)
- Daisy Chain Ports 1 x DB-25 Female (Black)
- 1 x DB-25 Male (Black)
- Firmware Upgrade 1 x RJ-11 Female (Black)
- USB Port 1 x USB Type A Female
- Power 1 x DC Jack Female (Black)
- LEDs
- Online 16 (Orange)
- Selected 16 (Green)
- Station ID 1 x 2-digit, 7-segment (Orange)
- Power 1 (Dark Green)
- Switches
- Port Selection 16 x Pushbutton
- Firmware Upgrade Recovery 1 x Slide
- Emulation
- Keyboard / Mouse PS/2, USB
- Video 2048 x 1536; DDC2B
- Scan Interval 1 255 Seconds (Default: 5 secs)
- Power Consumption DC5.3V:5.31W:40BTU
- Environmental
- Operating Temperature 0-50C
- Storage Temperature -20-60C
- Humidity 0-80% RH, Non-condensing
+
+
Overview
Specs
Reviews
Computer Connections
Direct 16
Maximum 512 (via Daisy-chain)
Port Selection OSD, Hotkey, Pushbutton
Connectors
Console Ports 1 x SPHD-18 Male (Yellow)
KVM Ports 16 x SPHD-15/17 Female (Yellow)
Daisy Chain Ports 1 x DB-25 Female (Black)
1 x DB-25 Male (Black)
Firmware Upgrade 1 x RJ-11 Female (Black)
USB Port 1 x USB Type A Female
Power 1 x DC Jack Female (Black)
LEDs
Online 16 (Orange)
Selected 16 (Green)
Station ID 1 x 2-digit, 7-segment (Orange)
Power 1 (Dark Green)
Switches
Port Selection 16 x Pushbutton
Firmware Upgrade Recovery 1 x Slide
Emulation
Keyboard / Mouse PS/2, USB
Video 2048 x 1536; DDC2B
Scan Interval 1 255 Seconds (Default: 5 secs)
Power Consumption DC 5.3V: 5.31W: 40BTU
Environmental
Operating Temperature 0-50C
Storage Temperature -20-60C
Humidity 0-80% RH, Non-condensing
Direct 16
Maximum 512 (via Daisy-chain)
Port Selection OSD, Hotkey, Pushbutton
Connectors
Console Ports 1 x SPHD-18 Male (Yellow)
KVM Ports 16 x SPHD-15/17 Female (Yellow)
Daisy Chain Ports 1 x DB-25 Female (Black)
1 x DB-25 Male (Black)
Firmware Upgrade 1 x RJ-11 Female (Black)
USB Port 1 x USB Type A Female
Power 1 x DC Jack Female (Black)
LEDs
Online 16 (Orange)
Selected 16 (Green)
Station ID 1 x 2-digit, 7-segment (Orange)
Power 1 (Dark Green)
Switches
Port Selection 16 x Pushbutton
Firmware Upgrade Recovery 1 x Slide
Emulation
Keyboard / Mouse PS/2, USB
Video 2048 x 1536; DDC2B
Scan Interval 1 255 Seconds (Default: 5 secs)
Power Consumption DC 5.3V: 5.31W: 40BTU
Environmental
Operating Temperature 0-50C
Storage Temperature -20-60C
Humidity 0-80% RH, Non-condensing
