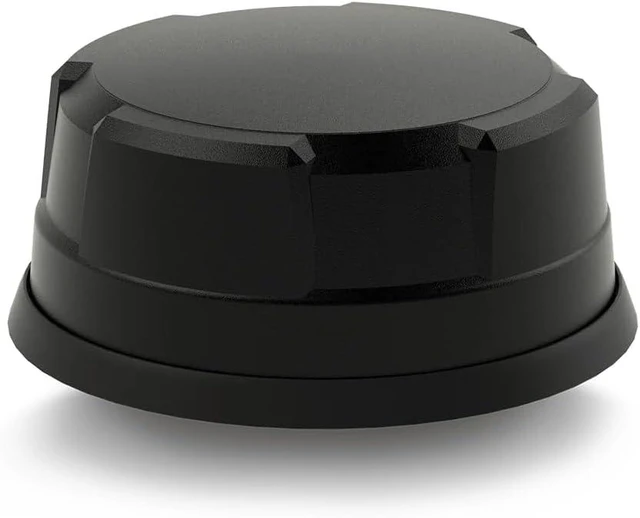

Panorama Antennas Inc LG-IN2446 9-in-1 5g Dome Blk -ftd Ext Cbls
- Cellular 4G/5G 1-4 Elements: 617-960MHz 4 dBi, 1710-3800MHz 8 dBi, 4900-6000MHz 9 dBi
- WiFi Elements 5-8: 2.4GHz 9 dBi & 4.9-6(7.2)GHz 9 dBi
- GPS/GNSS Element 9: 1562-1612MHz 26dB LNA gain
- Cables Type: RG174-FR(UNECER118 Compliant) / Cable Length: 5m (16 FT)
- Terminations: 4G/5G SMA(m), WiFi (RP-SMA) & GPS/GNSS SMA(m)
- Mounting type: Panel mount
- Max panel thickness(mm) 7 (0.27) & Mounting hole (mm) 19 (3/4)
- Dimensions (mm) Height 80 (3.1) Diameter 180 (7.1)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The MAKO 5G Dome range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profle package. The fexible platorm allows the main elements to be combined with a number of other functions including GPS/GNSS and 4x4 MiMo WiFi 2.4/5.0GHz. The MAKO 5G Dome have an integrated GPS/GNSS module supporting GPS, Glonass, Galileo, QZSS and Compass with 26dB LNAgain. This GPS module features advanced fltering for LTE B13/14 designed to minimise potential in band interference.
