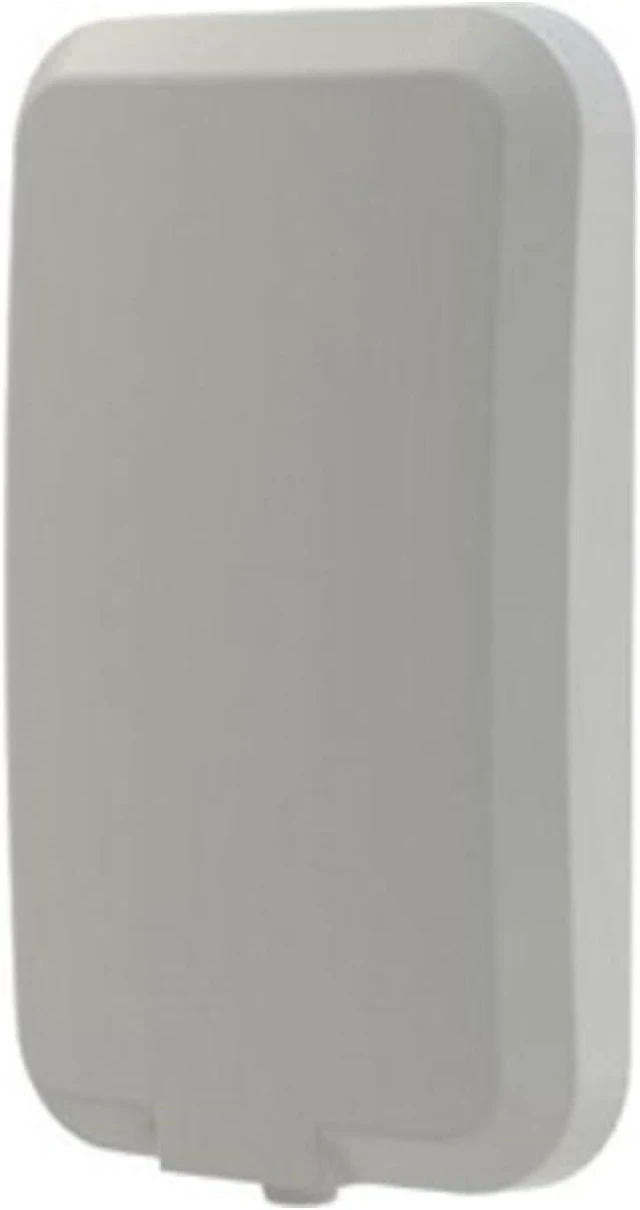

Panorama Antennas WMM4G-6-60-05NJ 4-in-1 4G-5G LTE Directional 4 x 4 MIMO Antenna - 9 dBi Gain

The WMM4G660 is a directional highgain 4x4 MIMO panel antenna, which boosts 4G and 5G signals. Incorporating four separately fed wideband element assemblies in a single housing, it provides 6 dBi of peak gain in the 617 to 960 MHz frequency range and 9 dBi peak gain within the 1710 to 6000 MHz range. The WMM4G660 is a highperformance but costeffective 4x4 MIMO panel antenna for network operators, service providers, and endusers. It ensures stability and improved data throughput for cellular routers and modems and is ideal for enterprise, branch, and failover applications. Features. Directional 4x4 MIMO LTE cellular antenna for 4G and 5G networks. 617 to 960 MHz and 1710 to 6000 MHz frequency ranges. Cat 18 ready. High gain from 6 to 9 dBi peak. 20 W max input power. Lowloss cable with choice of length 4 total cables. Select SMA plug or NType jack connectors. Wall or pole mounting brackets included. White radome with IP66 rating for outdoor useSpecifications. Combination / MIMO Antennas 41 4 LTE. Pattern Directional. Cellular Frequencies 617 960 MHz, 1710 6000 MHz. VSWR 21. Gain 9 dBi peak gain. Impedance 50 Ohms. Power 20 W. Weight 9.85 lbs
