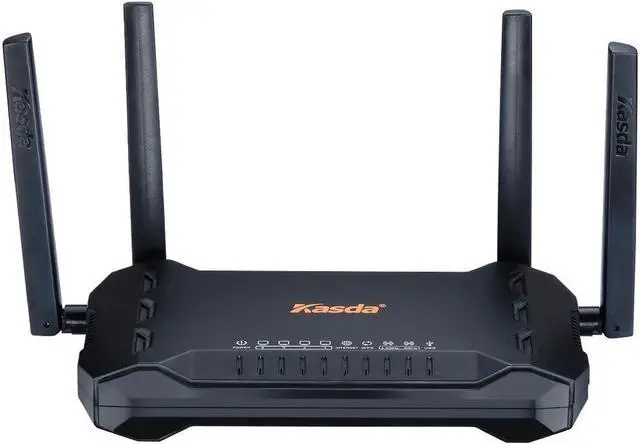

AC1200 Dual Band Gigabit WiFi Router, Long Range Wireless with High Gain 5dBi Antennas, Easy Setup via Smartphone (KW6516)

IMPORTANT TIPS:
1. This is a Dual band WiFi router without Modem integrated, you still need to use your existing modem from service provider.
2. Before login to the router, make sure your Smartphone is already CONNECTED to the router's WiFi network successfully, so you can open the login website properly.
3. If you are using CABLE Service, please REBOOT the CABLE MODEM after finished router setup, so the cable modem can assign IP address to the router properly and you can access to internet.

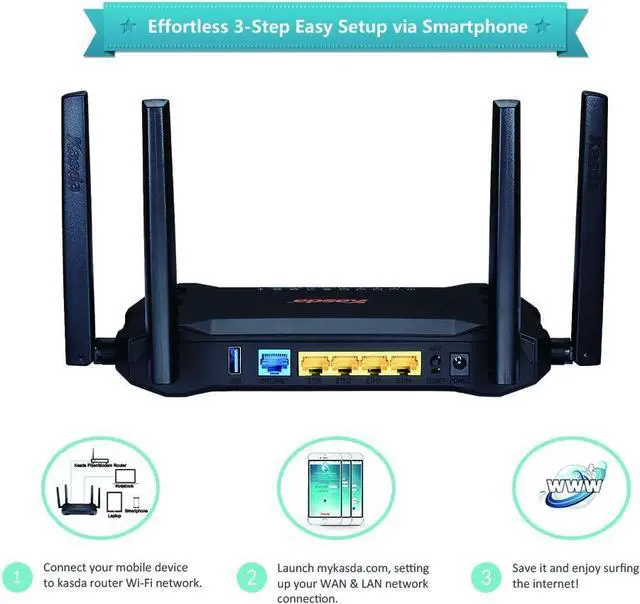

Setup Instruction:STEP 1: Use your Smartphone to search the Routers WiFi network named Kasda XXXX KW6516 and connect to it.
STEP 2: Open a browser on your Smartphone and login to the setup page.
STEP 3: Follow the Quick Setup guide to finish all the settings.
STEP 4: Reboot both your cable modem and Kasda router.
Specifications:

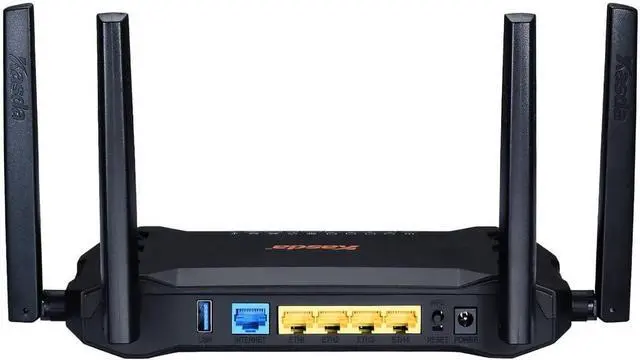

>>HardwarePhysical Interface: 4*10/100/1000Mbps LAN & 1*10/100/1000Mbps WAN, 1*USB3.0 Host Port
Buttons: Reset, WPS
LED Indicators: Power, INTERNET, LAN1/2/3/4, 5G, 2.4G, WPS
Antenna: 4*External 5dBi Fixed Antennas
Power: Input: 100-240V AC, 50Hz; Output: 12V/1.5A
Memory: 16MB Flash, 128MB RAM Processor: Dual Core MTK Chip Software WAN
Connection Types: DHCP/Static IP/PPPoE

WirelessWireless Standards: 802.11ac router for 5GHz, 802.11b/g/n for 2.4GHz
Frequency: Dual Band 2.4GHz&5GHz
Wireless Speed: 2.4GHz up to 300Mbps & 5GHz up to 867Mbps, total speed up to 1200Mbps
Transmit Power: up to(20dBm)Wireless Security: 64/128-bit WEP, WPA-PSK/WPA2-PSK/TKIP/AES
Guest Network: 2.4GHz WiFi Guest network, 5GHz WiFi Guest network
>>Others Packing List:

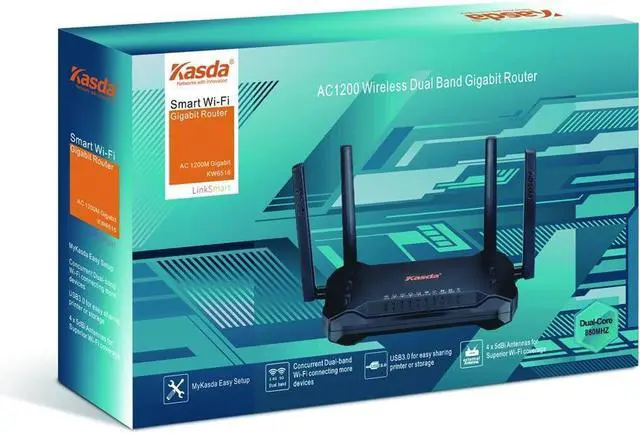

* AC1200 Dual Band Gigabit Wifi Router x1
* RJ-45 Ethernet Cable x1
* Quick Setup Manual x1
* US Standard 100-240V Power Adapter x1
