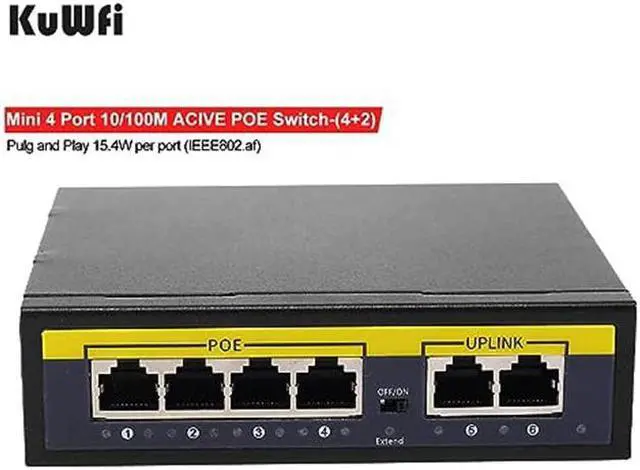

KuWFi 4 Port Ethernet Network Switch - Office Ethernet Splitter | Plug & Play Active POE Switch with 2 UP-Link Ports 60W
- 1.4-Port PoE Switch:4 x 10/100 Mbps PoE ports for Security IP Camera Connection +2 x 100/1000Mbps fast Ethernet Uplink ports for Router/NVR connection, Plug & Play
- 2.48V POE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable.
- 3.Seitch can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af power.
- 4.Advanced auto-sensing algorithm gives power to 802.3af end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.

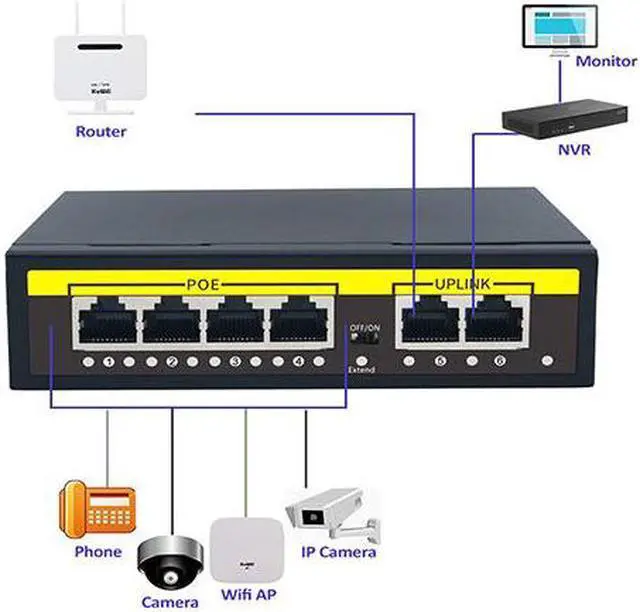

- 5.PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Detail
Product Name: MINI 4 Port 10/100M ACTIVE POE Switch(4+2)
Data Pin: 1/2+, 3/6-
Power Supply Type: Build in, 1/2+, 3/6-
PoE Output Power: 15.4W /30W
Connector: 4*10/100mbps POE port, 2*10/100mbps uplink port
Network Medium Cat5 (UTP) or more
Network Standards: IEEE 802.3 i 10BASE-T IEEE 802.3 u 100BASE-TX
IEEE 802.3 x Flow Control IEEE 802.3 af Power over Ethernet
PoE power: 15.4W per port(IEEE 802.3 af).
Wiring: Data & power provided over pairs 1/2 and 3/6
Half-duplex back pressure and IEEE 802.3 x full-duplex flow control
Buffer memory: 48Kb embedded memory per unit
Backboard Bandwidth: 1. 2G
Network Latency: Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission
PowerInput: 52V DC input
PoE power consumption: 15.4W per port(IEEE802. af)
LED Indicators System: Power, PoE Maximum power
Per port: Link, Activity, Speed, PoE active, PoE error
Environment specification
Operating temperature -10-55(32-104)
Storage temperature -40-70(14-158)
Operating humidity 90% maximum relative humidity, non-condensing
Storage humidity 95% maximum relative humidity, non-condensing
Package
1 x PoE switch
1 x Power cable
1 x User Manual
Product Name: MINI 4 Port 10/100M ACTIVE POE Switch(4+2)
Data Pin: 1/2+, 3/6-
Power Supply Type: Build in, 1/2+, 3/6-
PoE Output Power: 15.4W /30W
Connector: 4*10/100mbps POE port, 2*10/100mbps uplink port
Network Medium Cat5 (UTP) or more
Network Standards: IEEE 802.3 i 10BASE-T IEEE 802.3 u 100BASE-TX
IEEE 802.3 x Flow Control IEEE 802.3 af Power over Ethernet
PoE power: 15.4W per port(IEEE 802.3 af).
Wiring: Data & power provided over pairs 1/2 and 3/6
Half-duplex back pressure and IEEE 802.3 x full-duplex flow control
Buffer memory: 48Kb embedded memory per unit
Backboard Bandwidth: 1. 2G
Network Latency: Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission
PowerInput: 52V DC input
PoE power consumption: 15.4W per port(IEEE802. af)
LED Indicators System: Power, PoE Maximum power
Per port: Link, Activity, Speed, PoE active, PoE error
Environment specification
Operating temperature -10-55(32-104)
Storage temperature -40-70(14-158)
Operating humidity 90% maximum relative humidity, non-condensing
Storage humidity 95% maximum relative humidity, non-condensing
Package
1 x PoE switch
1 x Power cable
1 x User Manual
