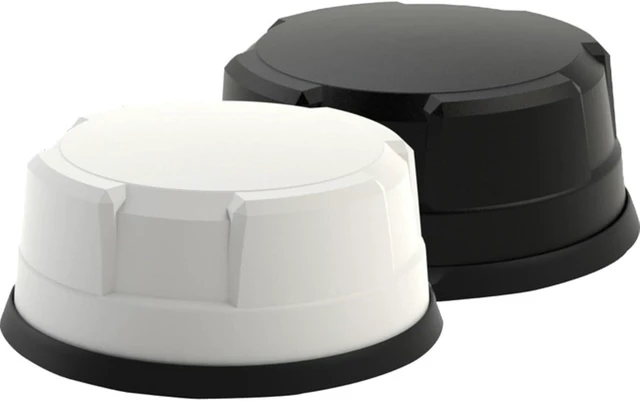

![Main image of Sierra Wireless 6001400 9in1 Dome Antenna [cellular+wifi+gnss] White](https://c1.neweggimages.com/productimage/nb640/C9PBD26092404K67J7F.jpg)
Sierra Wireless 6001400 9in1 Dome Antenna [cellular+wifi+gnss] White
- 4 x 5G/LTE 617-6000MHz (MiMo) + GNSS + 4 x Wi-Fi 2.4/5GHz
- 4G/5G Elements: 617-960MHz 4dBi, 1710-3800MHz 6dBi, 4900-6000MHz 6dBi / Wi-Fi Elements 2.4 GHz 5dBi & 4.9-6.0GHz 7dBi / GPS/GNSS 1562-1612MHz LNA 26dB
- Cellular Cables: Cable Type C32 Cable Length 5m (16) Termination FAKRA D (Purple)
- Wi-Fi Cables: Cable Type C29 Cable Length 5m (16) Termination FAKRA C (Blue)
- GPS/GNSS Cable: Cable Type C32 Cable Length 5m (16) Termination FAKRA I (Beige)
- Supported Networks CBRS, FirstNet, 5G NR
- Mounting: Bolt / Mounting Hole: 19mm (3/4)
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
The 9-in-1 Dome is a custom 5G single antenna solution for the AirLink XR90, tested and certified for mobile applications. The antenna has a low-profile design that contains nine isolated high-performance antenna elements in a single housing for optimal coverage; four ultra-wideband elements spanning 6176000MHz; a high performance GNSS antenna with an integrated 26dB gain LNA; and 4x4 MIMO dual band 2.4/5GHz Wi-Fi elements.
