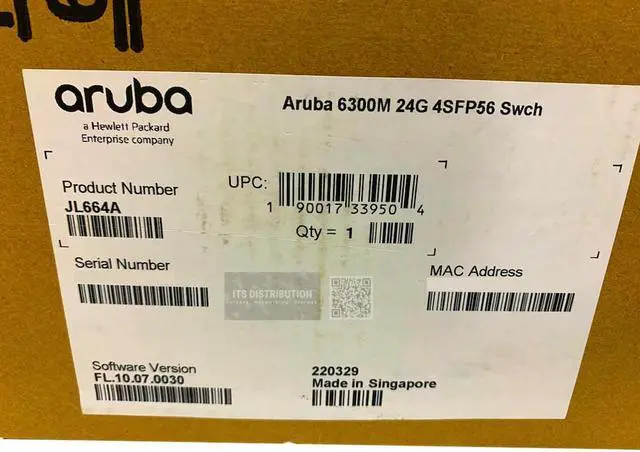

HPE Aruba 6300M 24-Port 1GbE and 4-Port SFP56 Switch (JL664A)

Ports:

-24x ports 10/100/1000 BaseT PoE+ ports supporting up to 30W per port

-4x 1G/10G/25G/50G1 SFP ports

-1x USB-C Console Port

-1x OOBM port

-1x USB Type A Host port

-1x Bluetooth dongle to be used with CX Mobile App

Power supplies:

-2 field-replaceable, hot-swappable power supply slots

-1 minimum power supply required (ordered separately) Supports JL085A PSU

Fan tray:

-Switch has two fan tray slots and comes with one fan tray installed

-Fan trays are field replaceable and hot-swappable.

-Minimum 1 fan tray required.

-Second fan tray ordered separately. Each fan tray is comprised of two fans.

CPU:

-Quad Core ARM Cortex A72 @ 1.8GHz

Memory and Flash:

-8 GBytes DDR4 32 GBytes eMMC

Packet Buffer:

- 8 MB packet buffer memory

System switching capacity: 880 Gbps

System throughput capacity: 660 Mpps

Model switching capacity: 448 Gbps

Model throughput capacity: 334 Mpps

Average latency: (LIFO, 64-byte packets) 1Gbps: 2.28Sec 10Gbps: 1.46Sec 25Gbps: 1.90Sec 50Gbps: 3.49Sec

Stack size: 10 members

Frequency: 50-60 Hz

AC voltage: JL085A PSU: 100V-240V

Current (for voltages listed above): JL085A PSU: 3A/1.2A

Power Consumption (230VAC): Hibernation (0 rpm fan): 9W Idle: 49W 100% traffic rate: 64W
