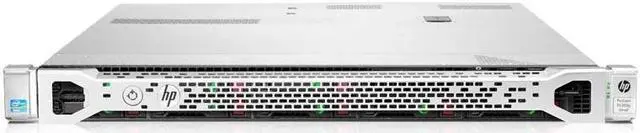

HPE 733732-001 Dl360P Gen8 E5-2603V2 1P 4G 8SFF Svr

Detail overviewGeneral
Information:
Manufacturer: Hewlett Packard EnterpriseManufacturer
Part Number: 733732-001Manufacturer
Website Address: WWW. HPE.
COM
Product Name: Proliant Dl360p Gen8 - 2-way 1u Rack Server ( Entry Model)
Processor & Chipset: Processor
Type: Intel Xeon E5-2603v2 / 1.8
GhzNumber Of Cores: Quad-core64-bit
Computing: YesInstalled
Qty: 1Max
Supported Qty:
2Upgradability: UpgradableChipset
Type: Intel C600Processor
Main Features: Hyper-threading Technology, Intel Quickpath Interconnect, Intel Turbo Boost
Technology 2Cache Memory: Cache
Memory Type: L3
CacheInstalled Size: 10
MbCache Per Processor: 10
MbRam: Installed
Size: 4 Gb / 384 Gb (max)
Technology: Ddr3 SdramEffective
Memory Speed: 1600 MhzRated
Memory Speed: 1600 MhzMemory
Specification Compliance: Pc3-12800Form
Factor: Dimm
240-pinSlots: 24 (total) / 23 (empty)
Features: Registered, Quad Channel Memory Architecture, Hp
SmartmemoryConfiguration Features: 1 X 4
GbRam Supported: Pc3-14900 - 384 Gb Registered Pc3-14900 - 768 Gb Load-reduced Pc3-14900 - 128 Gb Unbuffered -
Advanced EccStorage & Optical Storage: Hard
Drive: NoneOptical
Drive: NoneStorage &
Storage Controller:
Type: 1 X Raid - Integrated - Pcie 3.0 X8Controller
Interface Type: Sata 6gb/s / Sas 6gb/sStorage
Controller Name: Smart
Array P420iChannel Qty: 8Raid
Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60Buffer
Size: ZmDisplay &
Graphics Controllers: Graphics
Controller Type: IntegratedGraphics
Processor: Matrox
G200Video Interfaces: VgaNetwork
& Communication:
Type: Plug-in CardInterface (bus)
Type: Pci
Express X4Ethernet Ports: 4
X Gigabit EthernetEthernet Controller: Hp 331flrData
Link Protocol: Ethernet, Fast Ethernet, Gigabit EthernetRemote
Management Protocol: Ipmi 2.0, Smash ClpRemote
Management Controller: Integrated
Lights-out 4Features: Wake On Lan (wol), Pxe
SupportCompliant Standards: Ieee 802.3, Ieee 802.3 u, Ieee 802.1 q, Ieee 802.3 ab, Ieee 802.1 p, Ieee 802.3 ad (lacp)
Expansions & Connectivity: Expansion
Bays Total (free): 1 (total) / 1 (free) X External 5.25 inch8 (total) / 8 (free) X Hot-swap 2.5 inch SffExpansion
Slots Total (free): 24 (total) / 23 (free) X Dimm 240-pin2 (total) / 1 (free) X Cpu1 (total) / 1 (free) X Pcie 3.0 X16 - Half-length, Full-height1 (total) / 1 (free) X Pcie 3.0 X8 - Low-profile1 (total) / 0 (free) X Flexiblelom ( X4 Mode )
Interfaces & Ports: 1 X Serial1 X Vga4 X Lan (gigabit Ethernet) 1 X Hp Ilo7 X Usb 2.0 ( 2 Front, 4 Rear, 1
Internal )Miscellaneous: Included
Accessories: Hp
Easy Install Rail KitFeatures: Administrator PasswordPower-on PasswordSerial Port I/o Control80 Plus Platinum PlusCompliant Standards: Acpi 2.0 b, Fcc Class A Certified, En 61000-3-2, En55022, Ices-003, En 61000-3-3, En55024, Cispr 22, Fcc Cfr47 Part 15, Iec 60950-1, En 60950-1, Weee, Gb 9254, Cns 13438Power
Device: Device
Type: Power Supply -
Hot-plugPower Redundancy: OptionalPower
Redundancy Scheme: 1+1 (with
Optional Power Supply) Installed Qty: 1Max
Supported Qty: 2Nominal
Voltage: Ac 120/230 V (50/60
Hz)Power Provided: 460
Watt80 Plus Certification: 80
Plus PlatinumEfficiency: 94%Dimensions
& Weight:
Width: 17.1
InDepth: 27.5
InHeight: 1.7
InWeight: 31.99
LbsCondition:
RefurbishedAvailability: In
StockOur Warranty: 30 Days
