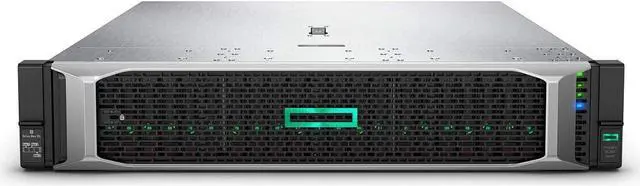

HPE P43357-B21 DL380 Gen10+ 5315Y 1P 32G Nc 8Sff Server

Detail overviewGeneral
Information:
Manufacturer: Hewlett Packard EnterpriseManufacturer
Part Number: P43357-B21Manufacturer
Website Address: WWW. HPE. COM
Server Scalability: 2-wayHeight (
Rack Units): 2uProduct
Name: HPE Proliant Dl380 Gen10 Plus 5315y 3.2 ghz 8-core 1p 32gb-r P408i-a Nc Bcm57412 8sff 800w Ps Server ( Networking Choice Model)
Processor & Chipset:
Cpu: Intel Xeon Gold 5315y / 3.2
GhzMax Turbo Speed: 3.6
GhzType: Xeon
GoldGeneration: 3rd
GenModel:
5315yCore: Octa-core (8
Core) Installed Quantity: 1Supported
Quantity:
2Upgradability: UpgradableMain
Features: Hyper-threading Technology, Intel Turbo Boost
Technology 2Socket: Fclga4189
SocketChipset Model: C620aCache
Memory: Installed
Size: L3 Cache - 12
MbCache Per Processor: 12
MbRam: Installed
Size: 32 Gb / 2 Tb (
Max) Technology: Ddr4 Sdram - Advanced EccEffective
Memory Speed: 2933 MhzRated
Memory Speed: 3200
MhzForm Factor: Dimm
288-pinSlots: 32 (total) / 31 (
Empty) Features: Registered, 8-channel Memory Architecture, HPE Smartmemory, Slots 17 - 32 Are Available In Two-processor
Configuration OnlyConfiguration Features: 1 X 32
GbRam Supported: 8 Tb Load-reduced, 2 Tb Registered, 8 Tb - HPE Persistent Memory -
Optane Dc PersistentHard Drive:
Type: No
HddStorage Controllers:
Type: 1 X RaidController
Interface Type: Sata 6gb/s / Sas 12gb/sStorage
Controller Name: HPE Smart Array P408i-a Sr Gen10Channel Qty: 8Raid
Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10
AdmBuffer Size: 2
GbOptical Storage:
Type: No
Optical DriveMonitor: Monitor
Type: NoneGraphics
Controller: Graphics
Memory Capacity: Up To 16 MbGraphics
Memory Accessibility: SharedGraphics
Memory Technology: Ddr4
SdramNetwork & Communication: Interface (
Bus) Type: Open Compute Project Mezzanine ( Ocp) 3.0E thernet
Ports: 2 X 10
Gigabit EthernetEthernet Controller: Broadcom
Bcm57412Data Link Protocol: 10 Gigabit EthernetRemote
Management Controller: Integrated Lights-out 5Expansion /
Connectivity: Expansion Bays Total (
Free): 8 ( Total) / 8 ( Free) X Hot-swap 2.5 SffExpansion Slots Total (
Free): 1 ( Total) / 1 ( Free) X Pcie 4.0 X16 - Full-length, Full-height1 ( Total) / 1 ( Free) X Pcie 4.0 X16 - Half-length, Full-height (x8 Mode) 1 ( Total) / 1 ( Free) X Pcie 4.0 X16 - Full-length, Full-height (x8 Mode)
Interfaces & Ports: 1 X HPE Ilo - Rj-451 X Usb 3.01 X HPE Ilo (service Port) 2 X Lan (10gigabit Ethernet) -
Sfp+1 X VgaMiscellaneous: Included
Accessories: 4 Standard Fans, Cpu Standard Heatsink, HPE Easy Install Rails With CmaCompliant Standards: Aes, Fips 140-2, Weee, Triple Des, Tls V 1.2, Ashrae Class A4, Ashrae Class A3, Redfish Api, Uefi, Acpi 6.3, Smbios 3.2P ower
Description: Device
Type: Power Supply -
Hot-plugPower Redundancy: OptionalPower
Redundancy Scheme: 1+1 ( With Optional Power Supply) Installed Qty: 1Max
Supported Qty: 2Voltage
Required: Ac 120/230 V (50/60
Hz)Plug/connector Type: C13/c14Power
Provided: 800
Watt80 Plus Certification: 80 Plus PlatinumOperating
System / Software: Os
Provided: No
Operating SystemEnvironmental Standards: Energy
Star Certified: YesEnergy
Star Version: 3.0E nvironmental
Parameters: Min
Operating Temperature: 50 °fMax
Operating Temperature: 95 °fHumidity
Range Operating: 8 - 90% (non-condensing)Dimensions
& Weight:
Width: 17.5
InDepth: 28
InHeight: 3.4
InWeight: 35.54
LbsCondition: New
Cto BuildAvailability: In
StockManufacturer Warranty: FullOur
Warranty: 30 Days
