PoE Texas 802.3bt PoE++ to 12V Splitter with 60W Output - Works with Cisco UPOE & 802.3bt Switches - Gigabit Data Splitter with Phoenix Connector for Tablet Computers, Wireless APs, Network Cameras

Our 802.3bt PoE++ to 12V Splitter delivers 60W of power to non-PoE devices over standard Ethernet cables. Get maximum power where you need it without running additional power lines or sacrificing bandwidth.

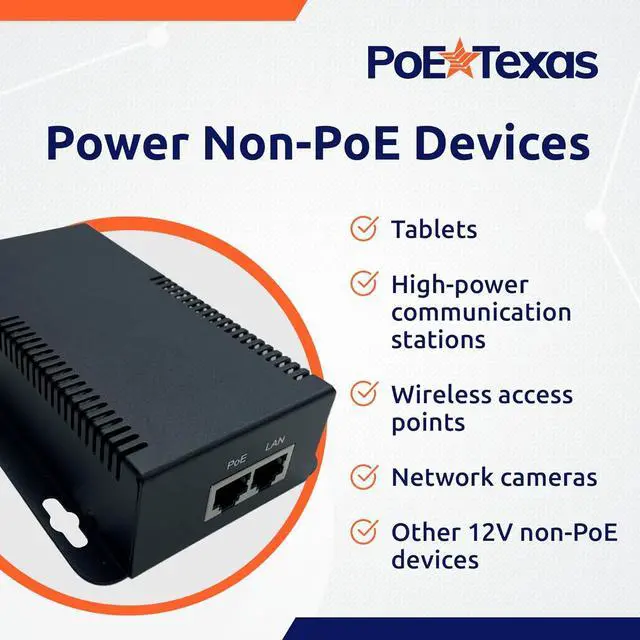

This device handles input voltages between 40-57V DC and maintains full gigabit data speeds. Ideally suited for powering tablets, communication stations, wireless access points, and network camerasall through a single Ethernet cable running up to 328 feet from your power source.

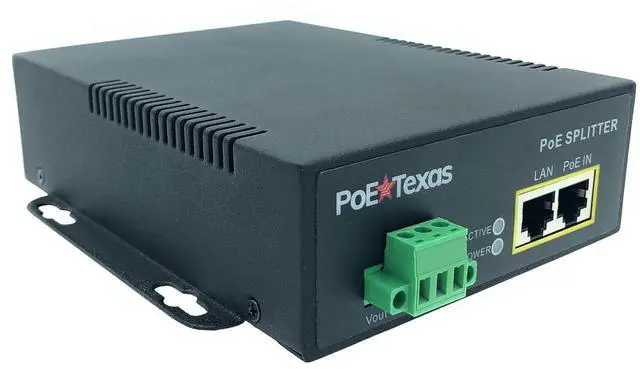

The metal-housed splitter brings enterprise-grade power to your 12V devices. It features a secure wall-mount design and professional Phoenix connector for direct wiring, and is compatible with all IEEE 802.3bt and Cisco UPOE switches and injectors.

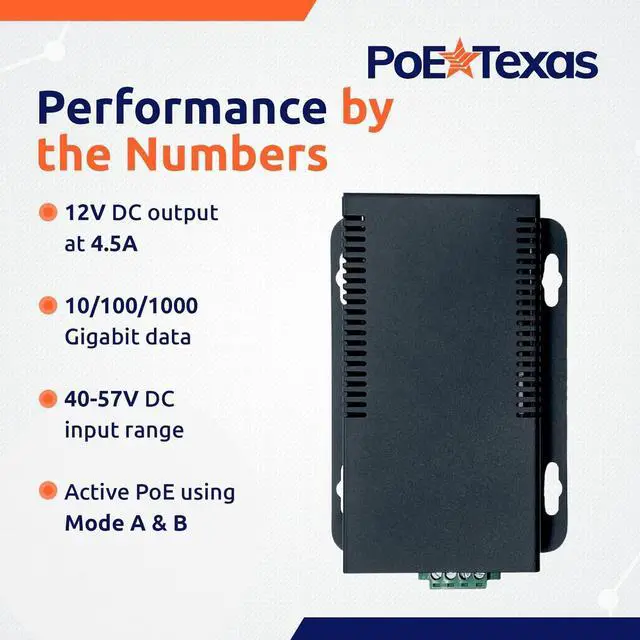

The GBT-12V60W splitter delivers 60W conversion from 802.3bt PoE++ sources to 12V devices and supports 40-57V DC input and outputting 12V DC at 4.5A.
Dual PoE mode support ensures compatibility with IEEE 802.3bt Type 3 and Cisco UPOE systems while maintaining Gigabit speeds. The metal housing (9.6 x 6.1 x 2.25 inches) includes wall-mounting and operates from 0-40°C. This IP20 unit works indoors up to 328 feet using Cat6 cables for optimal performance.
Convert PoE++ power to 12V DC at 4.5 amps - enough to drive demanding devices through a single Ethernet connection.

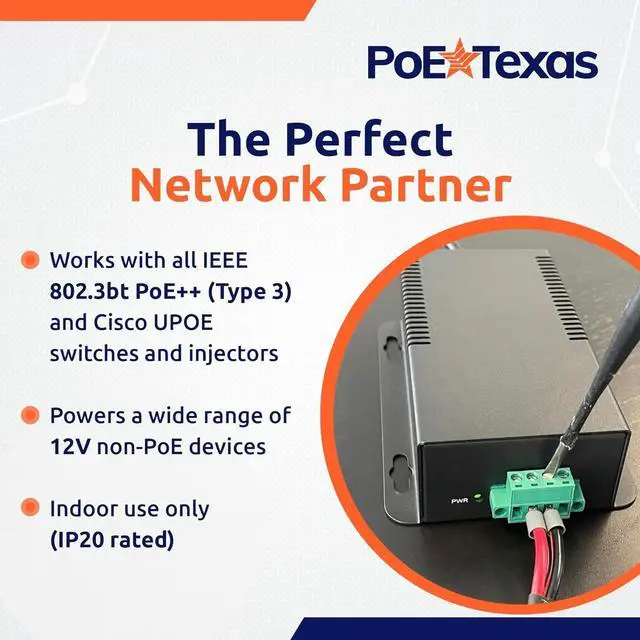

Fully compatible with all IEEE 802.3bt PoE++ and Cisco UPOE switches and injectors.

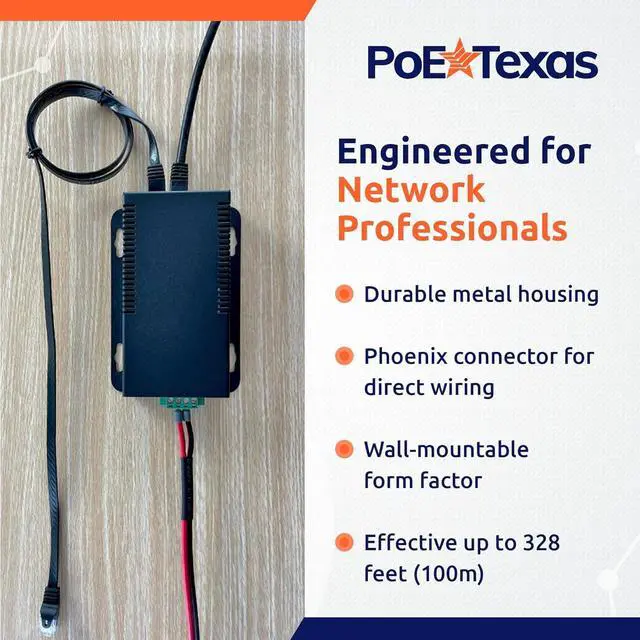

Metal housing with wall-mount capability offers flexible installation options. A professional Phoenix connector for direct wiring is included.
Maintain full 10/100/1000 Mbps data rates while delivering power. Has an effective range up to 328 feet (100m) with recommended Cat6 cabling.
PoE Texas delivers Power over Ethernet solutions that expand the potential of your IT infrastructure without replacing it. With more than 150 products designed to integrate with existing network technology, PoE Texas makes the promise of PoE accessible to businesses all around the world. Our top-rated team of Austin, TX based PoE experts work with companies to deliver smart buildings for lighting and automation, displays, infrastructure, and anything else in need of intelligent power.
GBT-12v60w
GAT-12V25W
GAF-12v12w
Data Rate
Gigabit
Data Rate
Gigabit
Data Rate
Gigabit
PoE Standard
802.3bt, POE++
PoE Standard
802.3at, POE+
PoE Standard
802.3af, POE
Mounting
Wall mounted
Mounting
in-line/mounting tabs
Mounting
in-line
Cables Included
no
Cables Included
no
Cables Included
Integrated RJ45 Male, 2.1mm DC Barrel
Max Power
60w
Max Power
25w
Max Power
12w
