PoE Texas 3-Port 2.5 Gigabit PoE++ Injector with 90W Per Port, Up to 328 Ft - 10/100/1000/2500Mbps Wall Mount or DIN Rail Mount 802.3af/at/bt PoE Injector - Includes 48 Volt 240 Watt Power Supply

Upgrade your network with our BT Class 2.5 gigabit Injectors. Enjoy uninterrupted data transmission, plug-and-play installation, and 90 watts of high-powered PoE++ output per port. Power PTZ IP cameras, desktop computers, high-end WiFi Access Points, digital signage, LED lighting systems, and more.
Flexible mounting options include DIN rail and wall mounts, suitable for various industrial and commercial environments. All BT series injectors come with a DIN rail mounting bracket. The design is efficient: super small form factor with rails to attach units together.
Designed to provide up to 90 watts of power per port, these injectors can power a range of 802.3bt devices from up to 328 ft. away. Minimize your energy consumption with efficient design and cost-effective performance.
Small form factor: This injector packs PoE++ into the size of a regular PoE injector. Need more ports? Simply slide another BT-1 into the first one for a clean Modular installation. Supports IEEE 802.3af, 802.3at, and 802.3bt standards for wide compatibility. Multiple PoE modes (Mode A, Mode B, and Mode A + B) offer flexibility for versatile applications. Supports 10/100/1000/2500Mbps Gigabit data rate. Includes one CE/FCC/RoHS/UL Rated power supply in compliance with industry standards.
The BT-1 model includes a 56V 120W power supply, perfect for small setups.

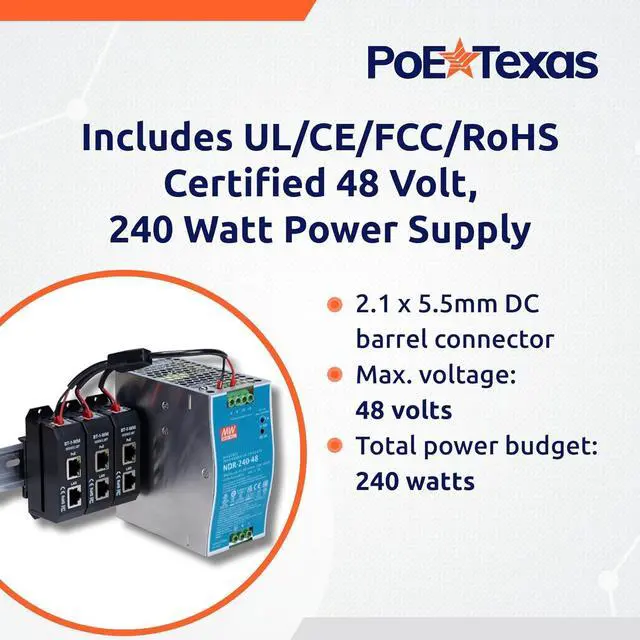

The BT-3 model comes with a 48V 240W power supply, ideal for medium-sized environments.
The BT-6 model features a 48V 480W power supply, designed for large installations.
PoE Texas delivers Power over Ethernet solutions that expand the potential of your IT infrastructure without replacing it. With more than 150 products designed to integrate with existing network technology, PoE Texas makes the promise of PoE accessible to businesses all around the world. Our top-rated team of Austin, TX based PoE experts work with companies to deliver smart buildings for lighting and automation, displays, infrastructure, and anything else in need of intelligent power.
BT-1-56v120w
BT-3-48v240w
BT-6-48v480w
Power Supply Included
56V 120W
Power Supply Included
48V 240W
Power Supply Included
48V 480W
Ports
1
Ports
3
Ports
6
Max Power per Port
90W
Max Power per Port
90W
Max Power per Port
90W
Mounting Options
Wall or DIN Rail
Mounting Options
Wall or DIN Rail
Mounting Options
Wall or DIN Rail
Data Rate
2.5 Gigabit (2500 Mbps)
Data Rate
2.5 Gigabit (2500 Mbps)
Data Rate
2.5 Gigabit (2500 Mbps)
