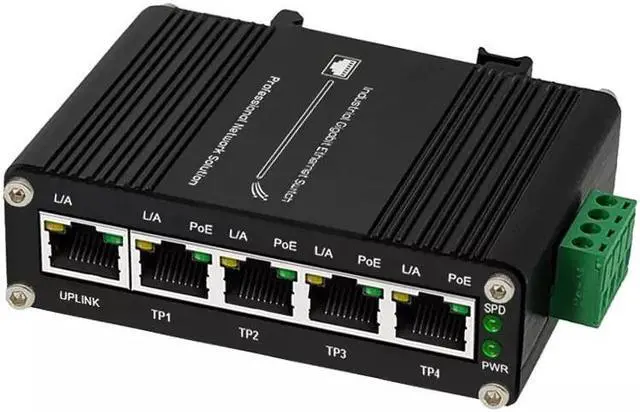

Industrial 5 Ports POE Gigabit Switch @120W 10/100/1000Mbps RJ45 802.3at/af Ethernet Switch Din Rail Mount 10Gbps Capacity Network Switch Universal for 12~48V DC Power input

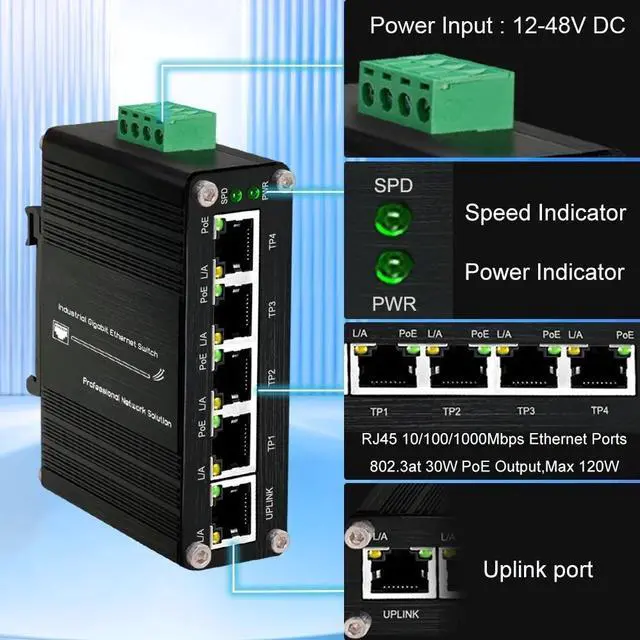

- *Gigabit Switch:5x10/100/1000Mbps RJ45 with auto-MDI/MDI-X function,30W POE power supply, Supports IEEE 802.3at/af,9K Bytes Jumbo Frame.

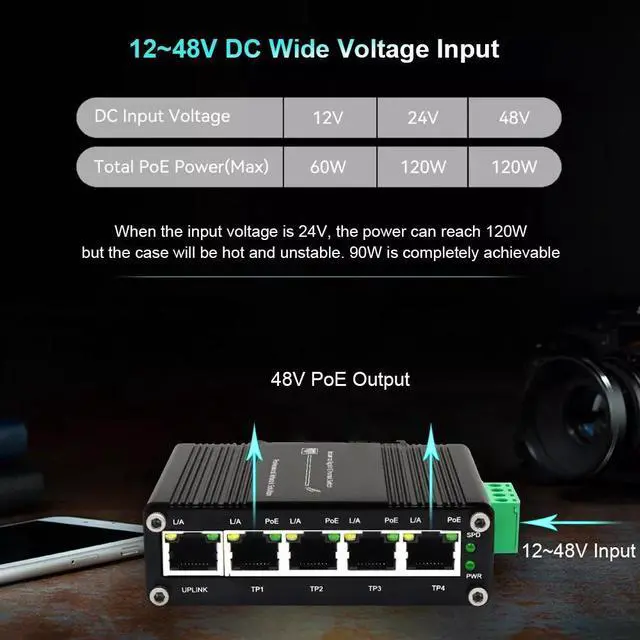

- *Universal for DC 12V-48V: Please note that this product is used in industrial field. If you use AC power supply, you must be equipped with "PSU" to convert AC current into DC current. The ethernet switch support 12~48V DC redundant power input.
- *Industrial grade: Outdoor switch are made of industrial aviation aluminum material, with heat dissipation performance far superior to ordinary metal shells. The working temperature is -40 deg C to 80 deg C (-40 deg F to 176 deg F), and the protection level is IP40. Suitable for outdoor work in harsh environments.
- *6KV Lightning Protection: Our poe injector adopts surge protection design and makes it can be used in harsh environment and can survive from lightning strikes up to 6KV.
- *Package included: 1 x network switch and 1 x user manual.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Industrial Full Gigabit 5 Ports PoE Switch 12~48V DC
Industrial 5 Ports Gigabit Solar POE Switch with DC12V-48V to DC48V Voltage Booster, Supports 4 x IEEE802.3af/at 30W POE Ports @120W, Compact POE Power Supply for Solar Power/RV Truck/VoIP Systems.
Feature:
- *Standard: IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE802. 3af (PoE), IEEE802. 3at (PoE+), IEEE 802.3x flow control

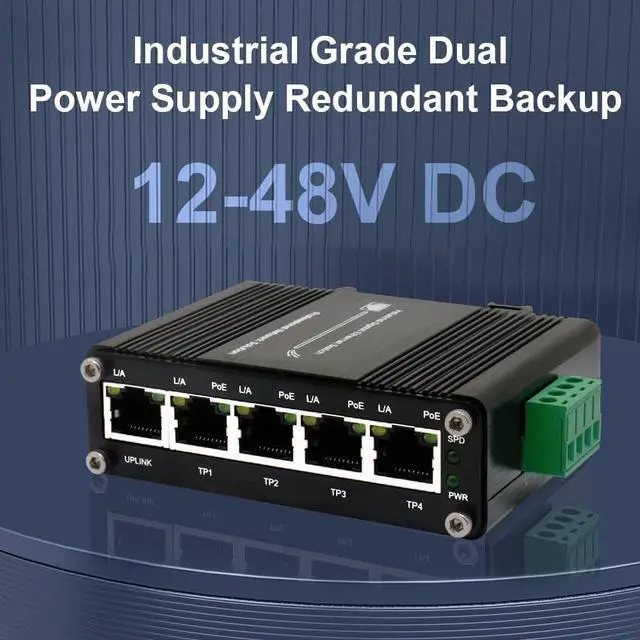

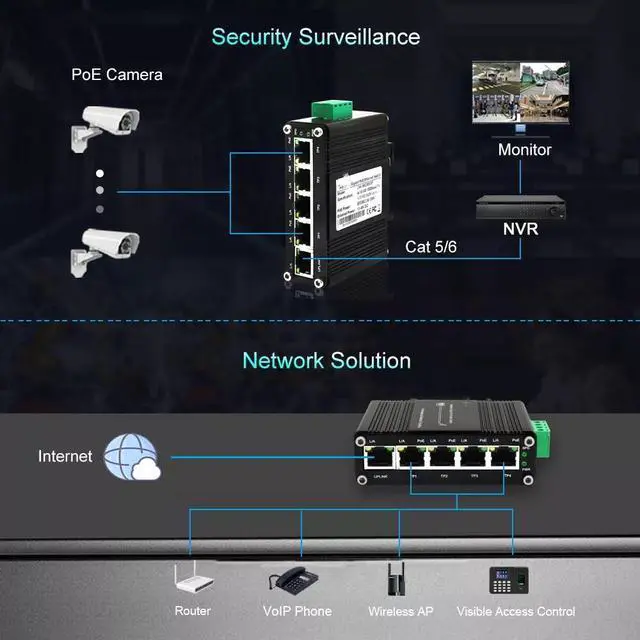

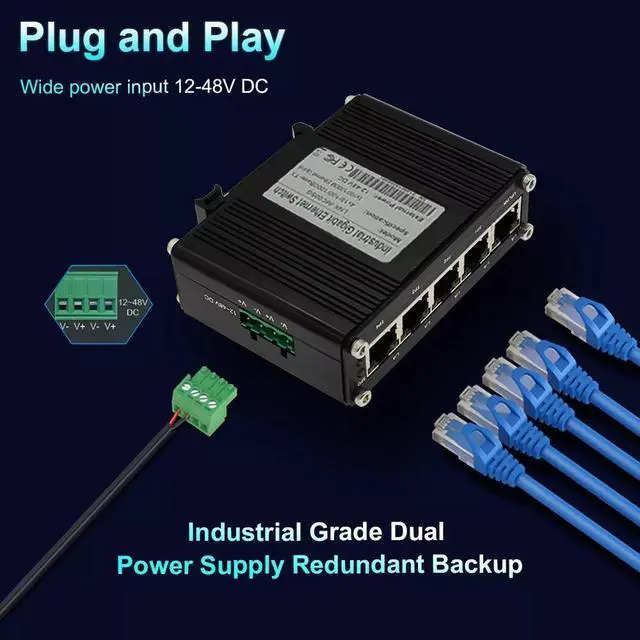

- *Dual Redundant Power Input 12-48V DC, Support 2 channel DC12V-48V redundant power inputs and auto failover, ensure high reliability networking system. DC 12~48V input and PoE 48V output, can be uesd in PoE cameras, wireless access points, access control etc With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.
- Casing Material: Aluminum Case
- Input Power: 12~48V DC (Terminal Block)
- Packet Buffer Memory: 1Mbits
- Max Packet Length: 9K Bytes
- Switch Capacity: 10Gbps/non-blocking
- Transmission Distance: up to 20KM

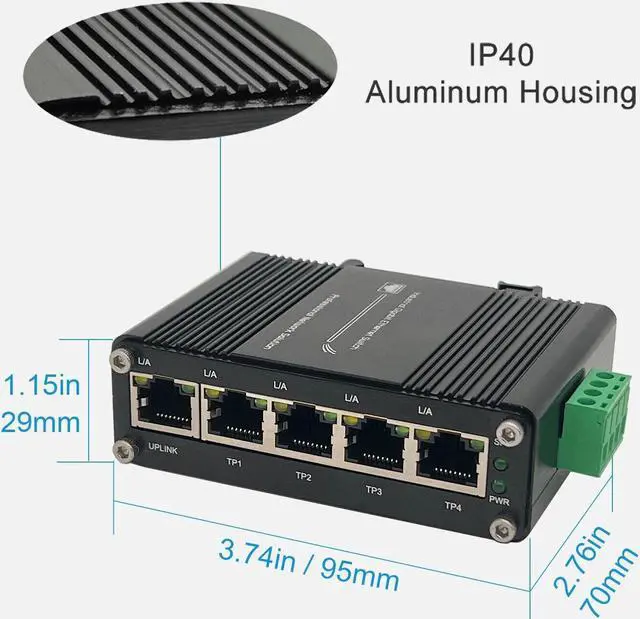

- Dimensions (WxDxH): 90 x 70x 29mm(3.74 x 2.76 x 1.15in)
Package Included:
- 1x 5Port PoE Switch
