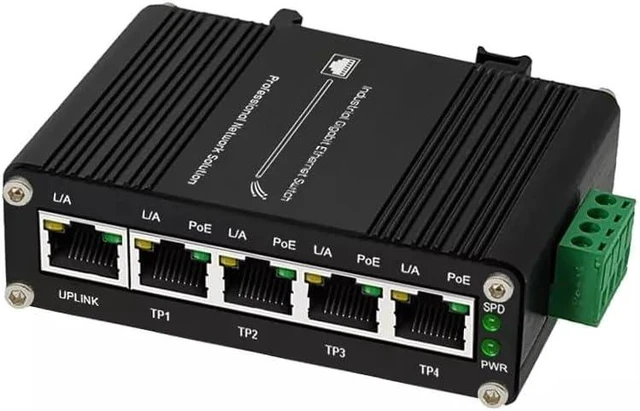

Industrial 5-Port Full Gigabit POE Switch Supports DC12V ~ DC48V Input with Voltage Booster, Total IEEE802.3at POE Power Budget 120W
- 10/100/1000Mbps Ethernet The Industrial 5 ports Ethernet PoE Switch have 5 RJ45 ports 10/100/1000Mbps half/full duplex.

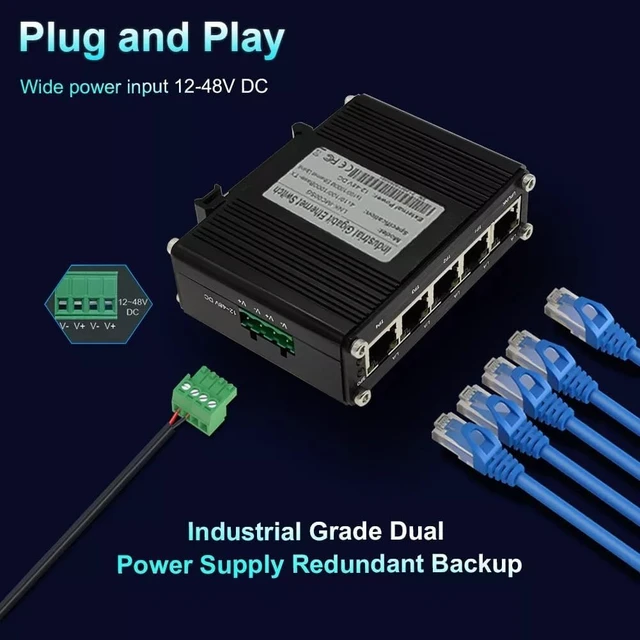

- 12~48V DC Input: The PoE switch support 12~48V DC Input and boost to 48V output. It will solve the problem that you only have 12V or 24V centralized power supply or solar power supply. And also support Redundant power.

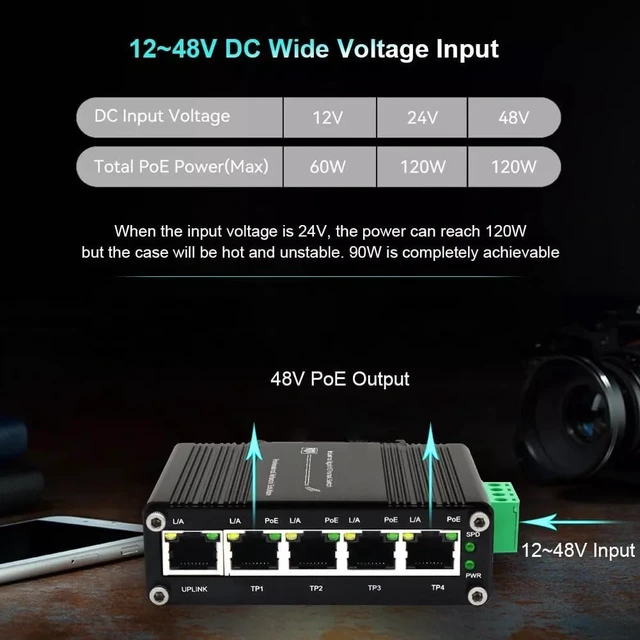

- IEEE802.3af/at PoE: The poe port 1-4 support IEEE802.3af/at standard, max 30W per port. Total POE budget 120W (DC48V input),90W(DC24V input) or 60W (DC12V input). Please note that passive 24v poe is not supported.

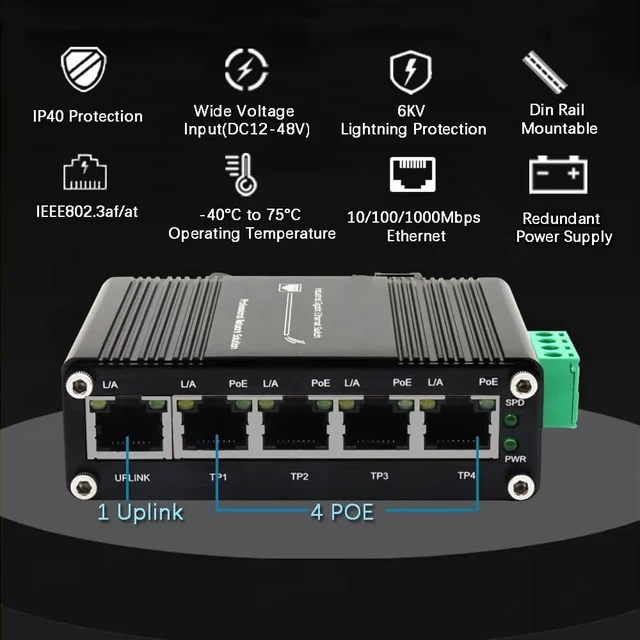

- Industrial Design: IP40 protection grade, aluminum alloy case, industrial grade chips and electronic components, working temperature -40~75°C(-40~185°F), super robustness, anti-lightning, anti-static and anti-overload protection, adapt to various harsh environments
- Widely Use: Mini Size only 2.9 x 7 x 8.5 cm; includes DIN rail/Wallmount kit, Support auto-negotiation, plug and play, no configuration needed, low-power consumption CPU, no
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Industrial Full Gigabit 5 Ports PoE Switch 12~48V DC
Industrial 5 Ports Gigabit Solar POE Switch with DC12V-48V to DC48V Voltage Booster, Supports 4 x IEEE802.3af/at 30W POE Ports @120W, Compact POE Power Supply for Solar Power/RV Truck/VoIP Systems.
Feature:
*Standard: IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE802. 3af (PoE), IEEE802. 3at (PoE+), IEEE 802.3x flow control

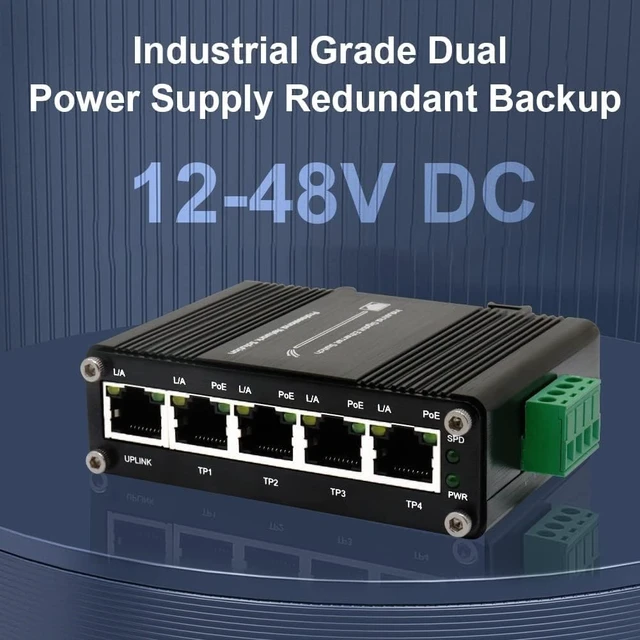

*Dual Redundant Power Input 12-48V DC, Support 2 channel DC12V-48V redundant power inputs and auto failover, ensure high reliability networking system. DC 12~48V input and PoE 48V output, can be uesd in PoE cameras, wireless access points, access control etc With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.
Casing Material: Aluminum Case

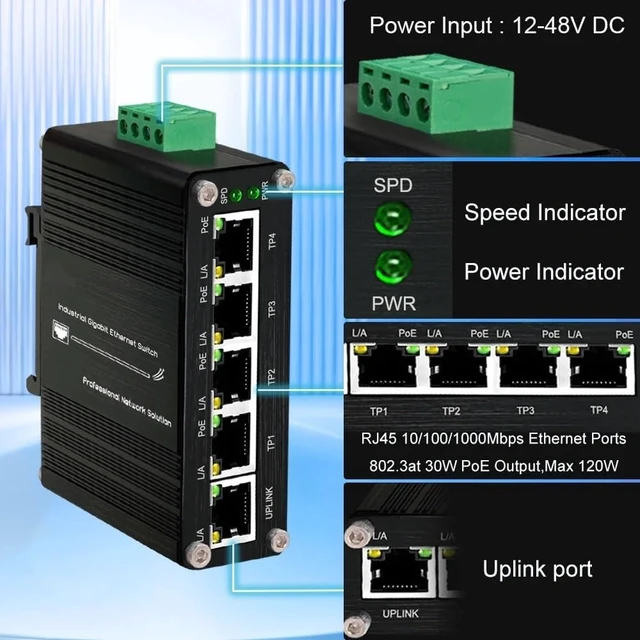

Input Power: 12~48V DC (Terminal Block)
Packet Buffer Memory: 1Mbits
Max Packet Length: 9K Bytes
Switch Capacity: 10Gbps/non-blocking
Transmission Distance: up to 20KM

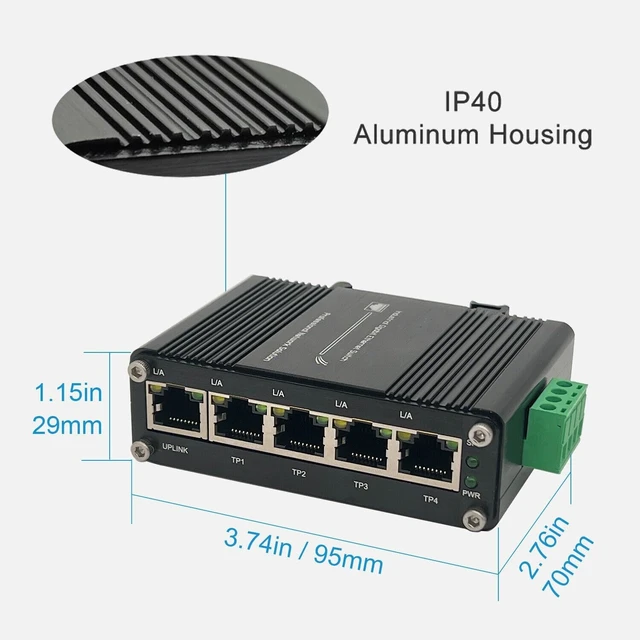

Dimensions (WxDxH): 90 x 70x 29mm(3.74 x 2.76 x 1.15in) Package Included:
1x 5Port PoE Switch
