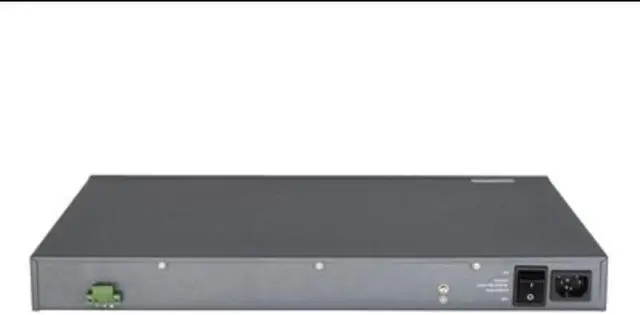

BDCOM S2900 L3-lite Series S2900-48P6X - Switch - L3 Lite - managed - 48 x 10/100/1000 (PoE+) + 6 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ - rack-mountable - PoE+ (740 W)

General:-

• Device Type: Switch - 48 ports - L3 Lite - managed
• Enclosure Type: Rack-mountable 1U
• Subtype: Gigabit Ethernet
• Ports: 48 x 10/100/1000 (PoE+) + 6 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
• Power Over Ethernet (PoE): PoE+
• PoE Budget: 740 W
• Performance: Backplane bandwidth: 216 Gbps ¦ Forwarding rate (64-byte packets): 162 Mpps
• Capacity: Packet buffer size: 1.5 MB ¦ Virtual interfaces (VLANs): 64 ¦ Routing tables: 512 ¦ Units per virtual stack: up to 16
• MAC Address Table Size: 16K entries
• Jumbo Frame Support: 9KB
• Routing Protocol: OSPF, RIP, IGMPv2, IGMP, VRRP, static IP routing, IGMPv3, OSPFv3, static IPv6 routing, RIPng, MLD, MSTP, RSTP, STP
• Remote Management Protocol: SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, SFTP, NTP, ICMP, DHCP
• Encryption Algorithm: MD5, 256-bit AES, 1024-bit RSA, SHA-256
• Authentication Method: RADIUS, TACACS+
• Features: VLAN support, IGMP snooping, traffic shaping, store and forward, Broadcast Storm Control, Multicast Storm Control, Automatic Protection Switching (APS), Weighted Random Early Detection (WRED), DHCP snooping, Committed Access Rate (CAR), DHCP server, MLD snooping, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), DHCP client, Multicast VLAN Registration (MVR), port isolation, Class of Service (CoS), GARP VLAN Registration Protocol (GVRP), Type of Service (ToS), DiffServ Code Point (DSCP) support, Ethernet Ring Protection Switching (ERPS), IGMP filtering, In-Service Software Upgrade (ISSU), Weighted Tail Drop (WTD), Authentication, Authorization and Accounting (AAA), Static Link Aggregation, Root Guard, Loop Guard, Voice VLAN, Hierarchical Quality of Service (HQoS), IP/Mac/Port Binding (IPMB), Private VLAN, ISATAP tunnel support, IGMP fast leave, Zero-touch provisioning (ZTP), PPPoE+, Switched Port Analyzer (SPAN), Weighted Round Robin (WRR), flow monitoring, Unknown Storm Control, BPDU Guard, Dying Gasp, IPv4 and IPv6 dual stack, DDoS Protection, Unidirectional Link Detection (UDLD), ACL support, FTP support, path maximum transmission unit (MTU) discovery, BDCOM Virtual Switch System (BVSS)
• Compliant Standards: IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3at
• RAM: 512 MB
• Flash Memory: 16 MB
• Built-in Devices: 2 x fans
• Status Indicators: Port status, system

Expansion / Connectivity:-

• Interfaces: 48 x 10/100/1000 Base-T (PoE+) RJ-45 ¦ 6 x 1/10Gbit LAN SFP+ ¦ 1 x console RJ-45

Power:-

• Voltage Required: AC 100-240/ DC 36-72 V

Miscellaneous:-

• MTBF: >200,000 hours
• Compliant Standards: FCC, RoHS


Environmental Parameters:-

• Min Operating Temperature: 32 °F
• Max Operating Temperature: 122 °F
• Humidity Range Operating: 10 - 90% (non-condensing)
• Min Storage Temperature: -4 °F
• Max Storage Temperature: 158 °F
• Humidity Range Storage: 5 - 95% (non-condensing)
