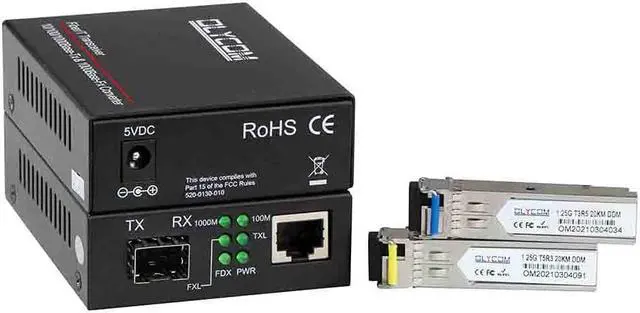

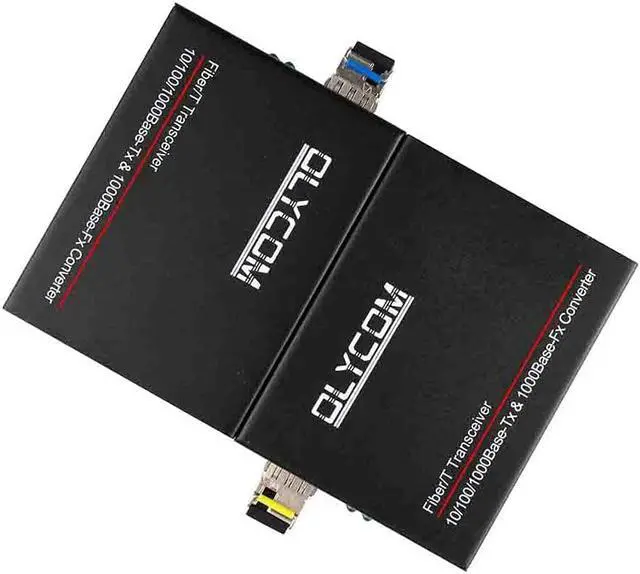

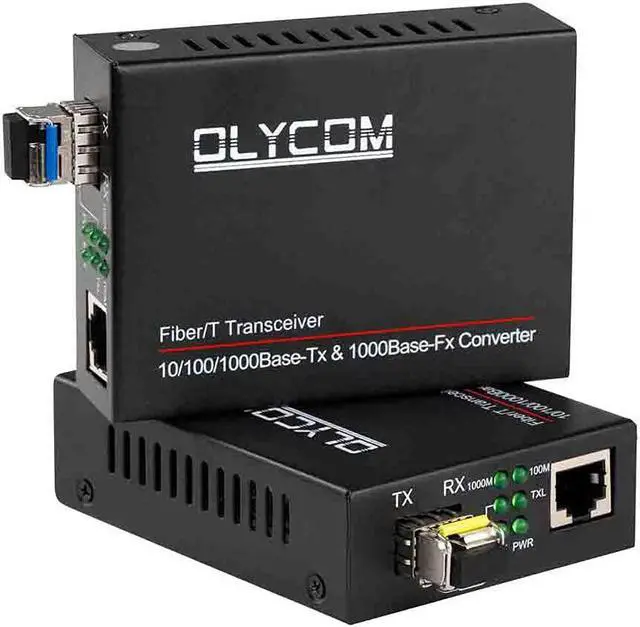

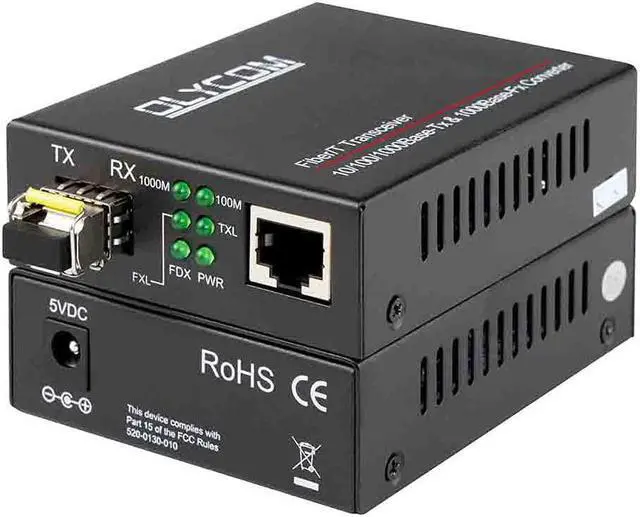

A Pair of Gigabit Ethernet Fiber Optical Media Converter Bidi 10/100/1000Base-Tx Optic SM 20km to RJ45 Port with 1.25Gbs SFP Transceivers
- SFP OPTICAL PORT: Gigabit Ethernet,1310nm/1550nm wavelength,Connect Singlemode bidirectional LC Fiber Cable,20km Transmission Distance,SFP fiber optical transceiver included.
- NETWORK PORT: 10/100/1000M, Full duplex-flow control, Half duplex-back pressure; Connect UTP CAT5 Cable,Supports MDI/MDI-X auto sensing.
- EASY to PLUG & PLAY: Support hot plug-and-play, plug and play. And it will work immediatelly.The LED indicators for TX, FXL/TXL,POWER, FDX can dynamic feedback link connection state and fault detection to easily monitor network status.Complies with IEEE 802.3/802.3u/802.3x/802.1q/IEEE802.1p QoS,/IEEE802.1d Spanning Tree.
- AVAILABLE FOR RACK: Can work with 2U 19" 14 slots chassis,support wide power supply voltage (100V-240V).Standalone operating voltage is 5VDC /1.0A.

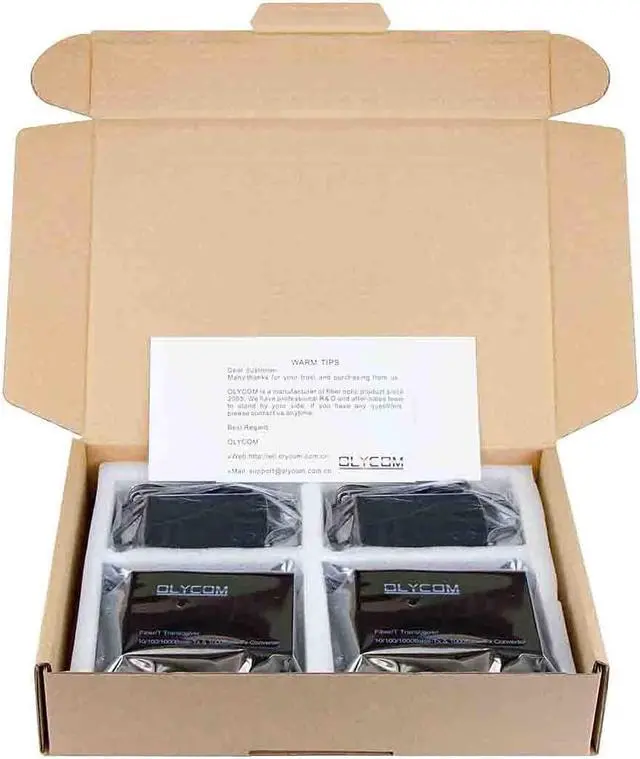

- WHAT YOU GET: One Pair of 20km single mode bidirectional Gigabit Ethernet Desktop Media transceiver; 2pcs US-Plug PSU; one-year warranty, 30 Days free-returned, free Lifelong technology support.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Main Features
High flexibility with hot-swappable SFP
1600byte super data packet transmission
Available for 14 slots rack
Full duplex-flow control, half duplex-back pressure
Full- positioned LEDs to indicate power and network status
Standard : IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
Ethernet port
RJ-45 Connector
10/100/1000M Auto-sensing
Optical Port
Gigabit SFP Socket
SM, Simplex, 20km, LC connector, 1310nm/1550nm
Specification
10/100/1000BASE-T: STP or UTP Category 5/5e/6 cable (Max. 100m)
SFP: Bi-Di fiber optical transceiver
Conversion Mode / Delay Time:Store-and-Forward <10us, straight-through<0.9us

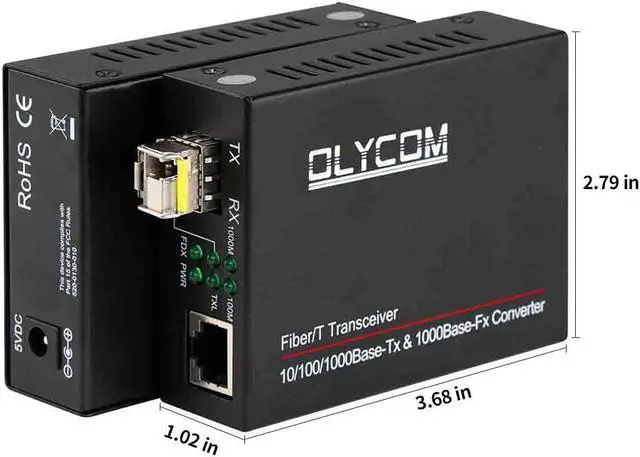

Dimensions : 2.76 inch*3.66 inch * 0.98 inch (W*D*H)
Weight0.3 kg
Input VoltageDC5V1A with External power adapter
Power Consumption<2.5W
MTBF50,000 hours
BER<1/1000000000
MAC Address Table1K
Bufer Size128K
Operating Temperature0-50
Storage Temperature-40-70
Storage Humidity5%-90% non-condescending
Warranty
One year
High flexibility with hot-swappable SFP
1600byte super data packet transmission
Available for 14 slots rack
Full duplex-flow control, half duplex-back pressure
Full- positioned LEDs to indicate power and network status
Standard : IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
Ethernet port
RJ-45 Connector
10/100/1000M Auto-sensing
Optical Port
Gigabit SFP Socket
SM, Simplex, 20km, LC connector, 1310nm/1550nm
Specification
10/100/1000BASE-T: STP or UTP Category 5/5e/6 cable (Max. 100m)
SFP: Bi-Di fiber optical transceiver
Conversion Mode / Delay Time:Store-and-Forward <10us, straight-through<0.9us
Dimensions : 2.76 inch*3.66 inch * 0.98 inch (W*D*H)
Weight0.3 kg
Input VoltageDC5V1A with External power adapter
Power Consumption<2.5W
MTBF50,000 hours
BER<1/1000000000
MAC Address Table1K
Bufer Size128K
Operating Temperature0-50
Storage Temperature-40-70
Storage Humidity5%-90% non-condescending
Warranty
One year
