6-Port Hardened Industrial Gigabit PoE+ DIN-Rail Fiber Network Switch 4 x Gigabit PoE+ Ports 2 x 1.25G SFP Fiber Ports 120W for Outdoor Use

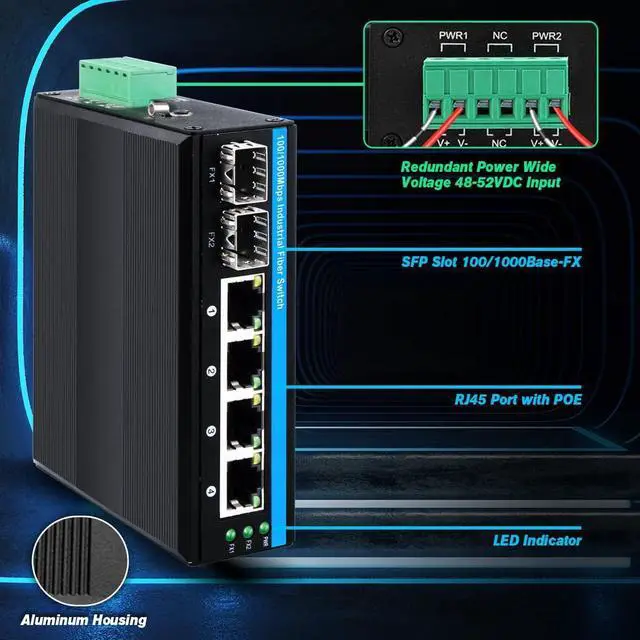

- INTERFACE: This is 2x10/100/1000Base-X SFP uplink port and 4x10/100/1000Base-TX Gigabit RJ45 ports with POE AT (30w each RJ45 port) industrial POE fiber switch. (Not include SFP module and power adapter
- EXTREME TEMPERATURE SWITCH: This Gigabit PoE+ Fiber Switch is equipped with a rugged IP40 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 75 °C (- 40 - 167 °F)) for harsh environments.
- DIN-RAIL & WALL MOUNT: This 6-port Gigabit PoE+ industrial switch comes with an integrated DIN-rail mount .
- REDUNDANT POWER: The industrial network switch has dual redundant power inputs with overload current protection (power supply sold separately)
- WHAT YOU GET: 1pc 6-port Hardened DIN-Rail Fiber Switch, 1pc user manual, and lifetime technical support.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
IM-FP244GE series is the 10/100/1000 Mbps industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 to + 75 , meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Package List:
- 1pc 6-port Hardened POE DIN-Rail Fiber Switch
- 1pc User Manual
- Removable Terminal Block

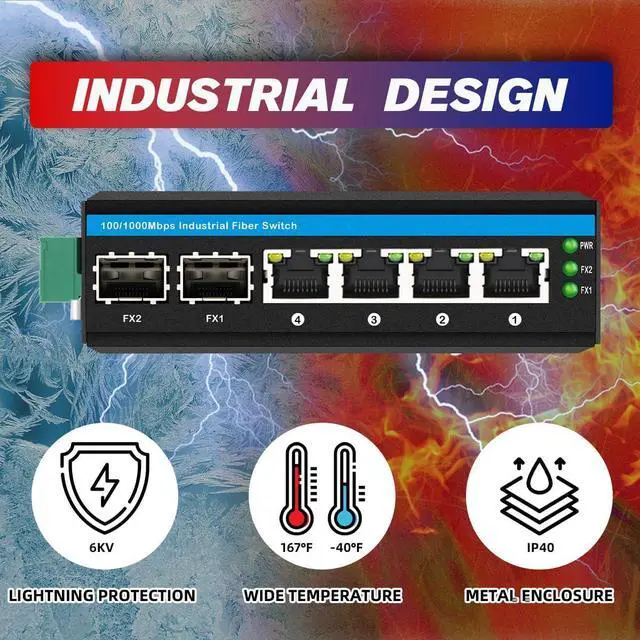

The industrial switch's 4KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environments and ensure the reliability of the uninterrupted network system.
The 6 port industrial Ethernet switches are designed with industrial operating temperatures ranging from -40ºC to 75ºC to pass through dangerous environmental.
The industrial Ethernet switch supports a dual power supply which input voltage is 48-52VDC (Sold without a power adapter and need to order separately). Support reverse connection.

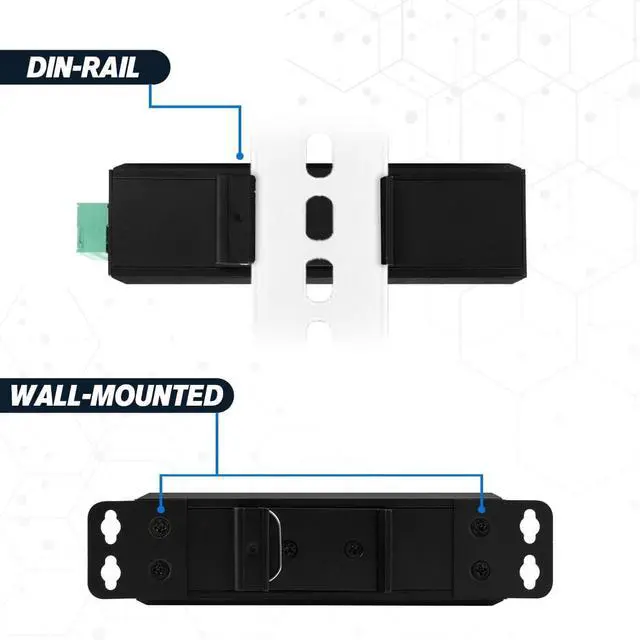

Easy to use with Din-rail mounted and save space and time. ( Sold without din rail mount and need to order separately). The din rail switch aslo can be customized to be desktop.
Product Name6port POE Industrial Fiber Switch Product No.IM-FP244GEPort2x1000Base-FX SFP fiber port4x10/100/1000Base-T RJ45 portPOE StandardAF/AT (15.4W/30W) Input Power48-52VDC ( Sold without a power adapter), redundant power supplyPower TerminalPhoenix terminalShellIP40 protection grade, metal shellMount TypeDin-RailWorking Temperature-4075-40167°F Product Size11.4 x 9.4 x3.6cm (4.48x3.66x1.37in)Product Weight0.45Kg(1 lb)Industry StandardsEMIFCC Part 15 Subpart B Class AEN 55022 Class A EMSEN 61000-4-2 (ESD) Level 3EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3EN 61000-4-8 Traffic ControlNEMA-TS2 VibrationIEC 60068-2-6 FreefallIEC 60068-2-32 ShockIEC 60068-2-27 Rail TrafficEN 50121-4 Lightning Protection Industrial Operating Temperature Dual Power Supply Din-rail Mounted Specification
Package List:
- 1pc 6-port Hardened POE DIN-Rail Fiber Switch
- 1pc User Manual
- Removable Terminal Block
The industrial switch's 4KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environments and ensure the reliability of the uninterrupted network system.
The 6 port industrial Ethernet switches are designed with industrial operating temperatures ranging from -40ºC to 75ºC to pass through dangerous environmental.
The industrial Ethernet switch supports a dual power supply which input voltage is 48-52VDC (Sold without a power adapter and need to order separately). Support reverse connection.
Easy to use with Din-rail mounted and save space and time. ( Sold without din rail mount and need to order separately). The din rail switch aslo can be customized to be desktop.
Product Name6port POE Industrial Fiber Switch Product No.IM-FP244GEPort2x1000Base-FX SFP fiber port4x10/100/1000Base-T RJ45 portPOE StandardAF/AT (15.4W/30W) Input Power48-52VDC ( Sold without a power adapter), redundant power supplyPower TerminalPhoenix terminalShellIP40 protection grade, metal shellMount TypeDin-RailWorking Temperature-4075-40167°F Product Size11.4 x 9.4 x3.6cm (4.48x3.66x1.37in)Product Weight0.45Kg(1 lb)Industry StandardsEMIFCC Part 15 Subpart B Class AEN 55022 Class A EMSEN 61000-4-2 (ESD) Level 3EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3EN 61000-4-8 Traffic ControlNEMA-TS2 VibrationIEC 60068-2-6 FreefallIEC 60068-2-32 ShockIEC 60068-2-27 Rail TrafficEN 50121-4 Lightning Protection Industrial Operating Temperature Dual Power Supply Din-rail Mounted Specification
