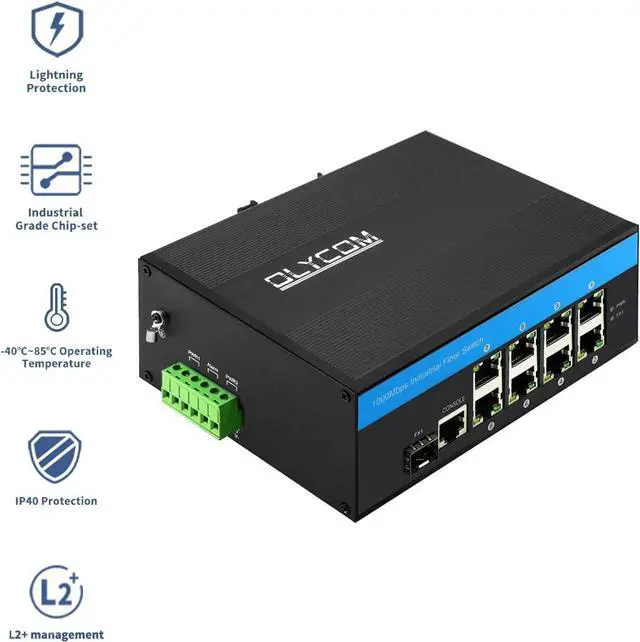

9port Industrial Managed SFP Switch 8 X Gigabit Ports 1 X SFP Slot DIN-Rail Mount IP40 with Vlan Qos LACP STP/RSTP L2 Management
- PORT: 8 x Gigabit Ethernet RJ45 ports, 1 x Gigabit SFP slot, 1 x managed console network port ( WITHOUT SFPS and POWER ADAPTER).
- L2 MANAGED: This 9port managed industrial fiber switch supports STP, RSTP, MSTP, ITU-T G.8032 EPR, Qos, IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching and other managed functions ( Details are in the description).
- EXTREME TEMPERATURE SWITCH: The 9port industrial switch is equipped with a rugged IP40-rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 75 °C (- 40 - 167 °F)) for harsh environments.
- REDUNDANT POWER: The 9 ports industrial managed switch has dual redundant power inputs with overload current protection (power supply sold separately).
- WHAT YOU GET: 1pc 9-port Outdoor DIN-Rail Industrial Managed SFP Switch, 1pc managed ca
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Q&A
Q: Does this Industrial SFP L2 managed switch include the power supply?
A: No, it doesn't include a power adapter.
Q: Which power adapter does this industrial SFP L2 managed switch require?
A: The input voltage is 9-36VDC. The power adapter can be 12VDC 3A.
Q: Is it a managed switch?
A: Yes, this is an L2-managed 9-port outdoor fiber Ethernet switch.
Q: What managed function does it support?
A: The 9 port managed switch is L2+ managed, and it supports STP, RSTP, MSTP, EPR, Qos, IEEE802.1q VLAN, MVR, IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching, ports aggregation, etc.
Q: What temperature range can this switch reach?
A: The operating temperature is -4075-40167°F
Q: Does it come with a small din rail?

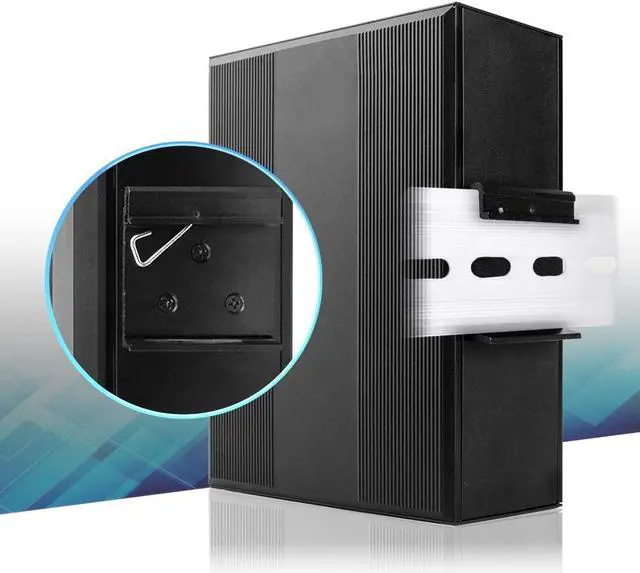

A: This is a din rail switch, but the din rail is not included.
The industrial Gigabit Ethernet L2 managed switch has ports 10/100/1000M downlink network ports, 1 port 1000M uplink SFP fiber port, and one console port. The system bandwidth is 40Gbps and the jumbo frame is 9.6K.
This industrial Gigabit Ethernet L2 managed outdoor switch supports STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR), Qos, transport classificationQos, Cos, IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR, IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching, etc.
The 9 ports managed switches are designed with industrial operating temperatures ranging from -40ºC to 75ºC to pass through dangerous environments.

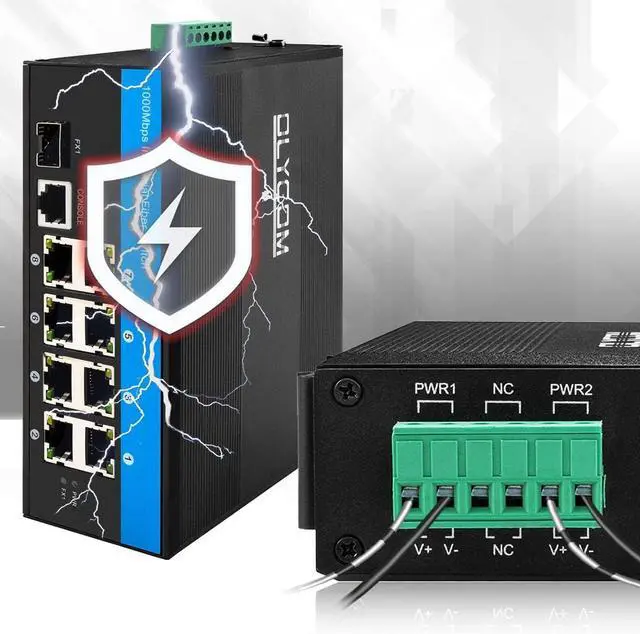

The outdoor switch's 4KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environments and ensure the reliability of the uninterrupted network system.
The 9 ports managed switch support WEB and CLI console managed. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade from failing. DHCP client/Relay/Snooping/Snooping option 82/Relay option 82, RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP.
The industrial Gigabit Ethernet switch supports a dual power supply whose input voltage is 9-36VDC (Sold without a power adapter and needs to order separately). Support reverse connection.
Product Name 9port Industrial Managed SFP SwitchProduct No.IM-FS180GWPort1x1000Base-FX SFP fiber port, 8x10/100/1000Base-T RJ45 port, 1xconsole port Console Port RJ45 portInput Power9-36VDC ( Sold without a power adapter), redundant power supplyPower TerminalPhoenix terminalShellIP40 protection grade, metal shellMount TypeDin-RailWorking Temperature-4075-40167°F Product Size158 x 114.8 x 60mm (6.22x4.53x2.36in)Product Weight0.85Kg(1.87 lb)Industry StandardsEMIFCC Part 15 Subpart B Class AEN 55022 Class A EMSEN 61000-4-2 (ESD) Level 3EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3EN 61000-4-8 Traffic ControlNEMA-TS2 VibrationIEC 60068-2-6 FreefallIEC 60068-2-32 ShockIEC 60068-2-27 Rail TrafficEN 50121-4 Full Gigabit Port L2+ Managed Switch Industrial Operating Temperature Lightning Protection Smart Managed Software Dual Power Supply Specification
Q: Does this Industrial SFP L2 managed switch include the power supply?
A: No, it doesn't include a power adapter.
Q: Which power adapter does this industrial SFP L2 managed switch require?
A: The input voltage is 9-36VDC. The power adapter can be 12VDC 3A.
Q: Is it a managed switch?
A: Yes, this is an L2-managed 9-port outdoor fiber Ethernet switch.
Q: What managed function does it support?
A: The 9 port managed switch is L2+ managed, and it supports STP, RSTP, MSTP, EPR, Qos, IEEE802.1q VLAN, MVR, IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching, ports aggregation, etc.
Q: What temperature range can this switch reach?
A: The operating temperature is -4075-40167°F
Q: Does it come with a small din rail?
A: This is a din rail switch, but the din rail is not included.
The industrial Gigabit Ethernet L2 managed switch has ports 10/100/1000M downlink network ports, 1 port 1000M uplink SFP fiber port, and one console port. The system bandwidth is 40Gbps and the jumbo frame is 9.6K.
This industrial Gigabit Ethernet L2 managed outdoor switch supports STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR), Qos, transport classificationQos, Cos, IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR, IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching, etc.
The 9 ports managed switches are designed with industrial operating temperatures ranging from -40ºC to 75ºC to pass through dangerous environments.
The outdoor switch's 4KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environments and ensure the reliability of the uninterrupted network system.
The 9 ports managed switch support WEB and CLI console managed. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade from failing. DHCP client/Relay/Snooping/Snooping option 82/Relay option 82, RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP.
The industrial Gigabit Ethernet switch supports a dual power supply whose input voltage is 9-36VDC (Sold without a power adapter and needs to order separately). Support reverse connection.
Product Name 9port Industrial Managed SFP SwitchProduct No.IM-FS180GWPort1x1000Base-FX SFP fiber port, 8x10/100/1000Base-T RJ45 port, 1xconsole port Console Port RJ45 portInput Power9-36VDC ( Sold without a power adapter), redundant power supplyPower TerminalPhoenix terminalShellIP40 protection grade, metal shellMount TypeDin-RailWorking Temperature-4075-40167°F Product Size158 x 114.8 x 60mm (6.22x4.53x2.36in)Product Weight0.85Kg(1.87 lb)Industry StandardsEMIFCC Part 15 Subpart B Class AEN 55022 Class A EMSEN 61000-4-2 (ESD) Level 3EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3EN 61000-4-8 Traffic ControlNEMA-TS2 VibrationIEC 60068-2-6 FreefallIEC 60068-2-32 ShockIEC 60068-2-27 Rail TrafficEN 50121-4 Full Gigabit Port L2+ Managed Switch Industrial Operating Temperature Lightning Protection Smart Managed Software Dual Power Supply Specification
