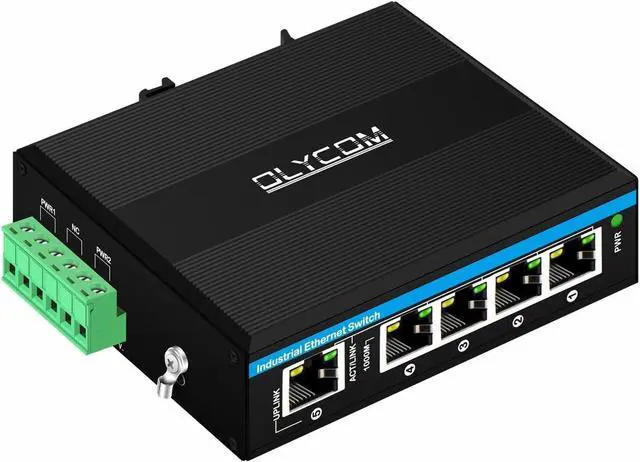

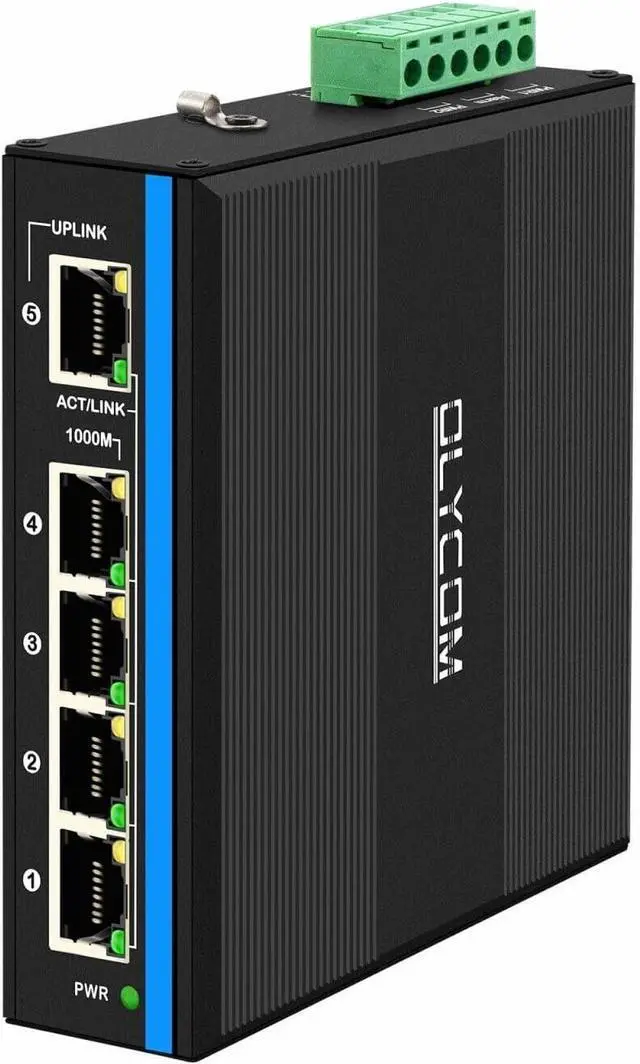

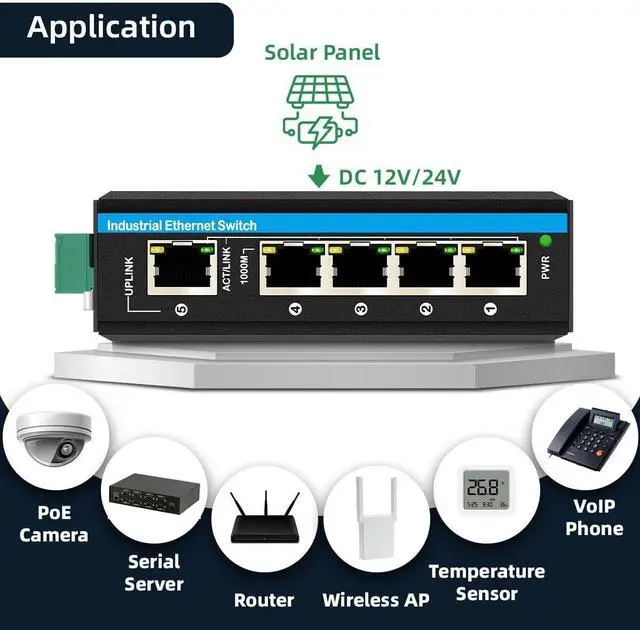

Outdoor PoE Switch 5port Gigabit Ethernet Switch with DC12V-48V Voltage Input and DC48V Output 30W PoE+ Switch Total 120W Budget Din-Rail Unmanaged Network Switch for Solar Power System

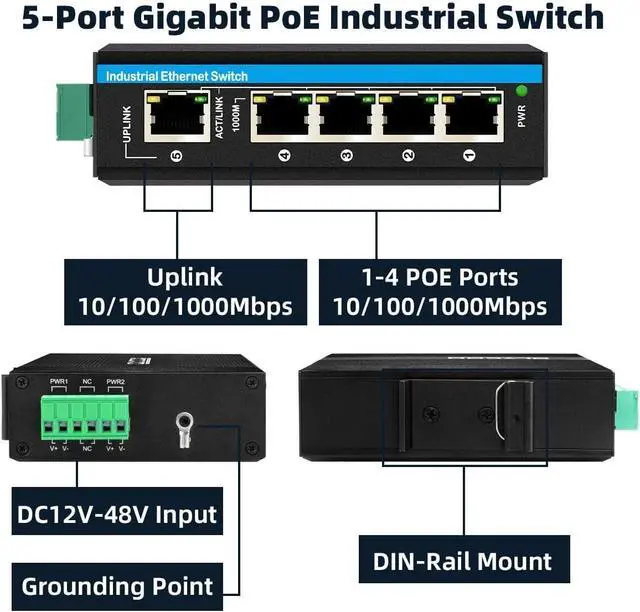

- INTERFACE: This is a full Gigabit outdoor POE switch. 1*10/100/1000M uplink network port + 4*10/100/1000M downlink network ports with POE AT (30w each RJ45 port). NOT include the power adapter.
- 12-48VDC POE SWITCH: Support wide voltage DC12V-48V input and standard IEEE802.3af/at POE output with one built-in voltage booster. The Max PoE budget is 120W for 24VDC and 48VDC. If uses 12VDC voltage input, the PoE budget is 60W.

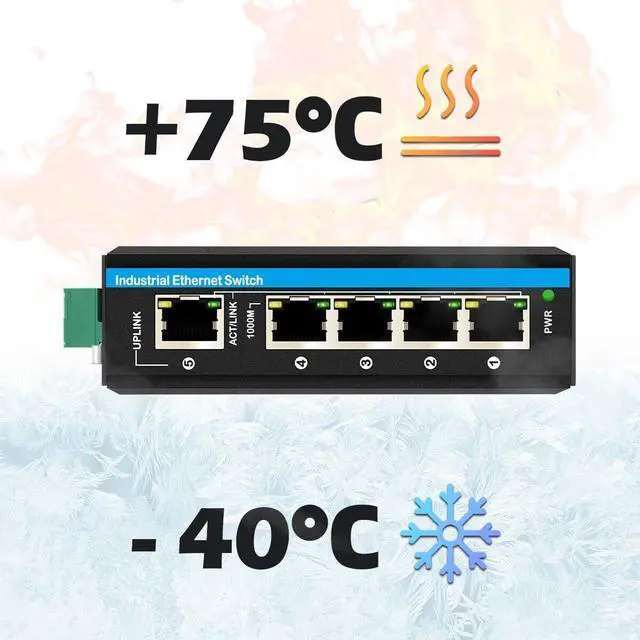

- OUTDOOR ETHERNET SWITCH: This outdoor PoE switch is equipped with a rugged IP40 rated enclosure and designed to withstand a high degree of vibration, shock, and protection against ESD / EMI / surge. The operating temperature range is - 40 75 °C (- 40 - 167 °F)) for harsh environments.
- REDUNDANT POWER: The industrial PoE+ switch has dual redundant power inputs (DC12-48V) with overload current protection which can ensure the systems work well even one power is failed (power supply sold separately).
- WHAT WE PROVIDE: 1pc outdoor Poe switch with DC12V-48V input, 1pc
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
IM-FP054BGE series is the 10/100/1000 Mbps outdoor Poe switch, operating temperature-40 to + 75 , meets IP40 protection degree and EMC industrial grade requirements, DIN rail installation. The reliable industrial grade design could ensure continuous and stable operation of the automation system. It offers 5 Gigabit Ethernet network ports and the 4 uplink network ports support IEEE802.3 af/at PoE output.
Q&A
1. Q: How does this outdoor PoE switch compare to other standard POE switches?
A: This outdoor PoE switch 5port Gigabit Ethernet switch has a built-in voltage booster which enables it to utilize a power input range of 12-48VDC, whereas typical POE switches support 48VDC input only.
2. Q: Does this outdoor 5port PoE switch support 24VDC power output?
A: No, this product doesn't support passive 24VDC PoE devices, and it supports standard IEEE802.3af/at PoE 48VDC devices only.
3. Q: Does it come with a power adapter?
A: The power adapter is sold separately. You could use one industrial din-rail power adapter or commercial grade. The voltage can be 12-48VDC. If need 120W power output, please use 48V 2.5A or 24V 5A power supply.
4. Q: What's the PoE Pin Assignment of this outdoor 5 Ports POE solar Switch?
A: It supports both 1/2 (V+),3/6 (V-) and 4/5 (V+),7/8 (V-).
5. Q: Can i use it with one Non-PoE devices?
A: Yes, sure. If one Non-PoE devices is connected with this 5port PoE solar switch, it will provide data only, and don't provide power any more.
The outdoor PoE switch's 6KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environments and ensure the reliability of the uninterrupted network system.
The 5 port outdoor PoE network switches are equipped with a rugged IP40 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 75 °C (- 40 - 167 °F)) for harsh environments.

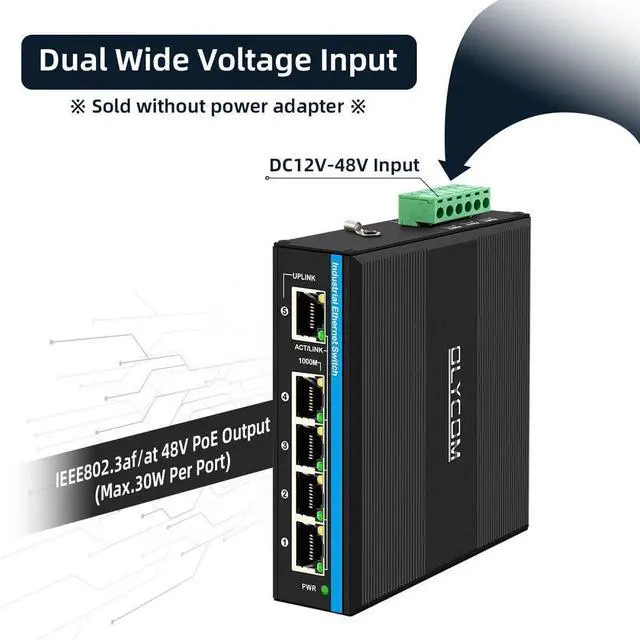

The Gigabit PoE Ethernet switch supports a dual power supply which input voltage is 12-48VDC (Sold without a power adapter and need to order separately). Support reverse connection.
Easy to use with Din-rail mounted and save space and time. ( Sold without din rail mount and need to order separately). The din rail switch aslo can be customized to be desktop.
Product NameOutoor PoE Switch 5Port Product No.IM-FP054BGEUplink Port1x10/100/1000Base-T RJ45 portDownlink Port4x10/100/1000Base-T RJ45 port with standard PoE af/atInput Power12-48VDC ( Sold without a power adapter), redundant power supplyPower TerminalPhoenix terminalMount TypeDin-RailWorking Temperature-4075-40167°F Product Size11.4 x 9.4 x3.6cm (4.48x3.66x1.37in)Product Weight0.45Kg(1 lb)Industry StandardsEMIFCC Part 15 Subpart B Class AEN 55022 Class A EMSEN 61000-4-2 (ESD) Level 3EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3EN 61000-4-8 Traffic ControlNEMA-TS2 VibrationIEC 60068-2-6 FreefallIEC 60068-2-32 ShockIEC 60068-2-27 Rail TrafficEN 50121-4 Lightning Protection Industrial Operating Temperature Dual Power Supply Din-rail Mounted Specification
Q&A
1. Q: How does this outdoor PoE switch compare to other standard POE switches?
A: This outdoor PoE switch 5port Gigabit Ethernet switch has a built-in voltage booster which enables it to utilize a power input range of 12-48VDC, whereas typical POE switches support 48VDC input only.
2. Q: Does this outdoor 5port PoE switch support 24VDC power output?
A: No, this product doesn't support passive 24VDC PoE devices, and it supports standard IEEE802.3af/at PoE 48VDC devices only.
3. Q: Does it come with a power adapter?
A: The power adapter is sold separately. You could use one industrial din-rail power adapter or commercial grade. The voltage can be 12-48VDC. If need 120W power output, please use 48V 2.5A or 24V 5A power supply.
4. Q: What's the PoE Pin Assignment of this outdoor 5 Ports POE solar Switch?
A: It supports both 1/2 (V+),3/6 (V-) and 4/5 (V+),7/8 (V-).
5. Q: Can i use it with one Non-PoE devices?
A: Yes, sure. If one Non-PoE devices is connected with this 5port PoE solar switch, it will provide data only, and don't provide power any more.
The outdoor PoE switch's 6KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environments and ensure the reliability of the uninterrupted network system.
The 5 port outdoor PoE network switches are equipped with a rugged IP40 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 75 °C (- 40 - 167 °F)) for harsh environments.
The Gigabit PoE Ethernet switch supports a dual power supply which input voltage is 12-48VDC (Sold without a power adapter and need to order separately). Support reverse connection.
Easy to use with Din-rail mounted and save space and time. ( Sold without din rail mount and need to order separately). The din rail switch aslo can be customized to be desktop.
Product NameOutoor PoE Switch 5Port Product No.IM-FP054BGEUplink Port1x10/100/1000Base-T RJ45 portDownlink Port4x10/100/1000Base-T RJ45 port with standard PoE af/atInput Power12-48VDC ( Sold without a power adapter), redundant power supplyPower TerminalPhoenix terminalMount TypeDin-RailWorking Temperature-4075-40167°F Product Size11.4 x 9.4 x3.6cm (4.48x3.66x1.37in)Product Weight0.45Kg(1 lb)Industry StandardsEMIFCC Part 15 Subpart B Class AEN 55022 Class A EMSEN 61000-4-2 (ESD) Level 3EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3EN 61000-4-8 Traffic ControlNEMA-TS2 VibrationIEC 60068-2-6 FreefallIEC 60068-2-32 ShockIEC 60068-2-27 Rail TrafficEN 50121-4 Lightning Protection Industrial Operating Temperature Dual Power Supply Din-rail Mounted Specification
