Gigabit Hardened Ethernet Media Converter Single Mode Duplex Industrial Fiber SC to Network Switch DIN-Rail/Wall Mount 9/12/24VDC Input IP40 Safety Class

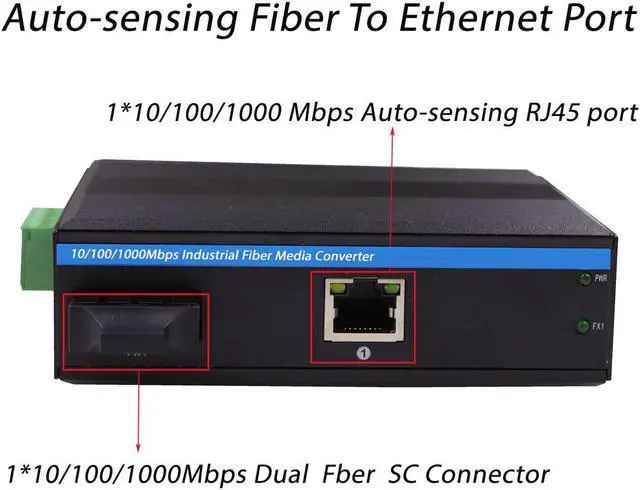

- Interface: 1 10/100/1000 Base-TX UTP port and 1 10/100/1000 Base-X SC fiber port. Operating wavelength 1310nm,single mode, dual fiber,20km transmission distance.
- Industry Standards: EMIFCC Part 15 Subpart B Class AEN 55022 Class A EMSEN 61000-4-2 (ESD) Level 3EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3EN 61000-4-8 Traffic ControlNEMA-TS2 VibrationIEC 60068-2-6 FreefallIEC 60068-2-32 ShockIEC 60068-2-27 Rail TrafficEN 50121-4

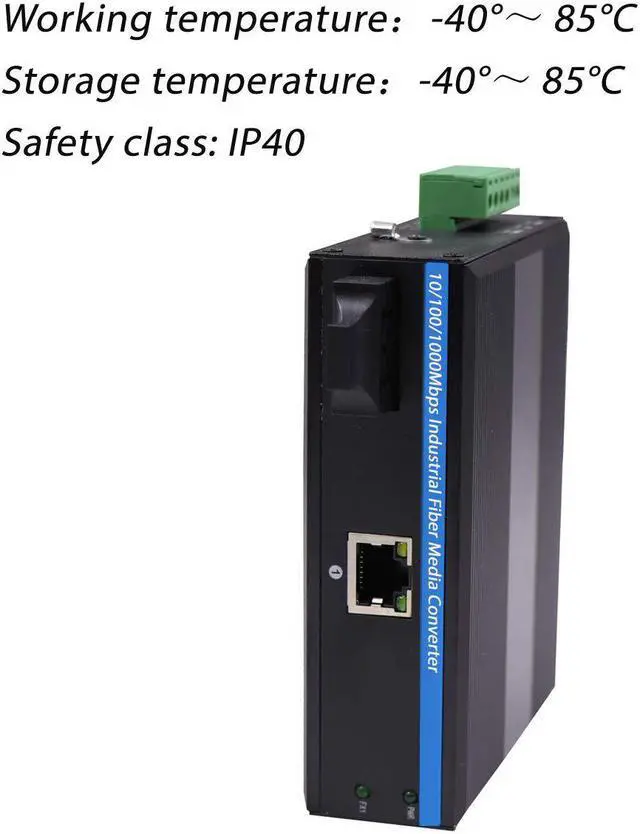

- Wide Temperature & Environment: Working temperature-40° 75°C (-40° 167°F),Storage temperature :-40° 85°C (-40° 185°F).Working humidity:10%90%,non-condensing; Storage humidity: 10%95%,non-condensing
- Safety, Installation& PowerSupply: Meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. Commercial CE/LVD EN60950. Redundant double DC input power suppl
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

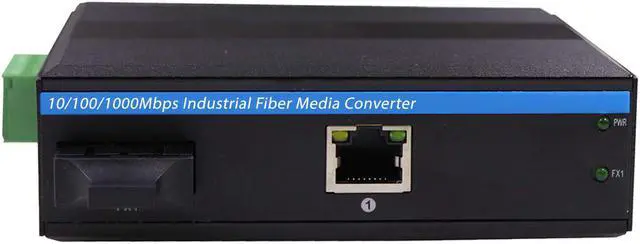

IM-MC110GE series is the 10/100/1000 Mbps industrial media converter, operating temperature-40 to + 75 , meeting IP40 protection degree and EMC industrial grade requirements, and DIN rail installation. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

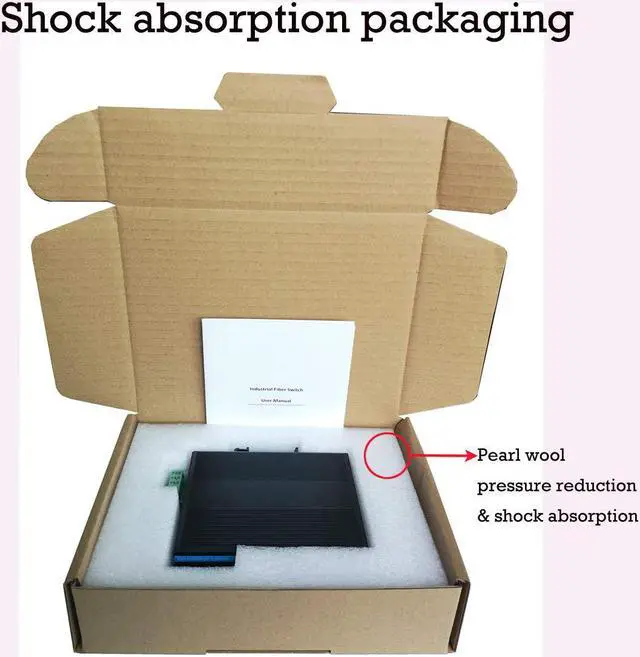

Package List:
- 1pc industrial gigabit ethernet media converter (with built-in 1* 9 fiber module, SM, 1310nm, dual fiber, 20KM, SC)
- 1pc User Manual
- Removable Terminal Block
The industrial media converyer is 4KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environments and ensure the reliability of the uninterrupted network system.
The industrial Gigabit Ethernet media converter is equipped with a rugged IP40 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 75 °C (- 40 - 167 °F)) for harsh environments.

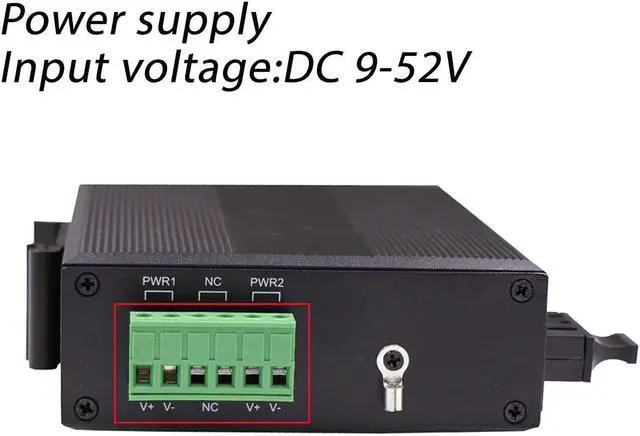

The Gigabit Ethernet industrial fiber optic converter supports a dual power supply which input voltage is 9-36VDC (Sold without a power adapter and need to order separately). Support reverse connection.

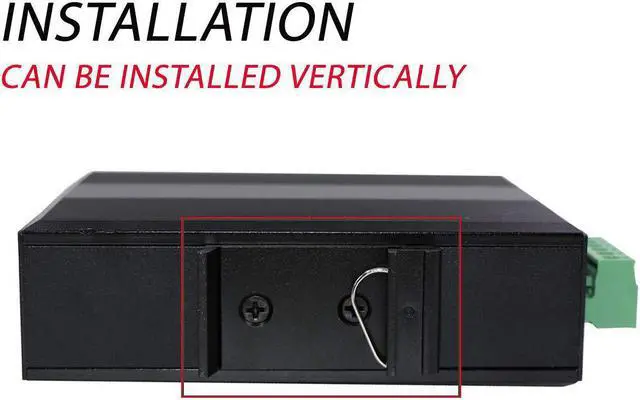

Easy to use with Din-rail mounted and save space and time. ( Sold without din rail mount and need to order separately). The din rail switch aslo can be customized to be desktop.

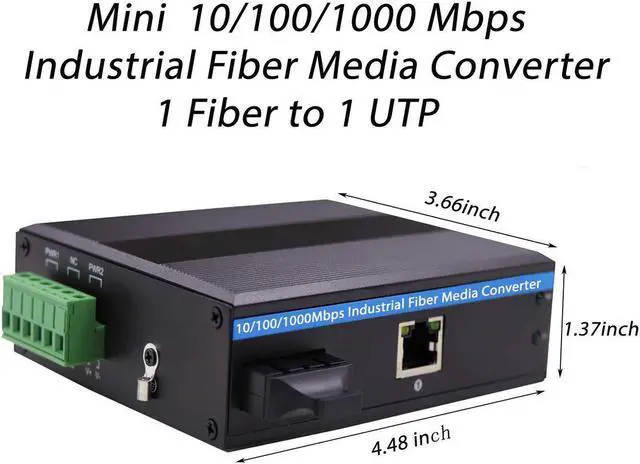

Product NameIndustrial Gigabit Ethernet Media ConverterProduct No.IM-MC110GEPort1x10/100/1000Base-T RJ45 port, 1x1000Base-X fiber portInput Power9-36VDC ( Sold without a power adapter), redundant power supplyPower TerminalPhoenix terminalShellIP40 protection grade, metal shellMount TypeDin-RailWorking Temperature-4075-40167°F Product Size11.4 x 9.4 x3.6cm (4.48x3.66x1.37in)Product Weight0.45Kg(1 lb)Industry StandardsEMIFCC Part 15 Subpart B Class AEN 55022 Class A EMSEN 61000-4-2 (ESD) Level 3EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3EN 61000-4-8 Traffic ControlNEMA-TS2 VibrationIEC 60068-2-6 FreefallIEC 60068-2-32 ShockIEC 60068-2-27 Rail TrafficEN 50121-4 Lightning Protection Industrial Operating Temperature Dual Power Supply Din-rail Mounted Specification
Package List:
- 1pc industrial gigabit ethernet media converter (with built-in 1* 9 fiber module, SM, 1310nm, dual fiber, 20KM, SC)
- 1pc User Manual
- Removable Terminal Block
The industrial media converyer is 4KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environments and ensure the reliability of the uninterrupted network system.
The industrial Gigabit Ethernet media converter is equipped with a rugged IP40 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 75 °C (- 40 - 167 °F)) for harsh environments.
The Gigabit Ethernet industrial fiber optic converter supports a dual power supply which input voltage is 9-36VDC (Sold without a power adapter and need to order separately). Support reverse connection.
Easy to use with Din-rail mounted and save space and time. ( Sold without din rail mount and need to order separately). The din rail switch aslo can be customized to be desktop.
Product NameIndustrial Gigabit Ethernet Media ConverterProduct No.IM-MC110GEPort1x10/100/1000Base-T RJ45 port, 1x1000Base-X fiber portInput Power9-36VDC ( Sold without a power adapter), redundant power supplyPower TerminalPhoenix terminalShellIP40 protection grade, metal shellMount TypeDin-RailWorking Temperature-4075-40167°F Product Size11.4 x 9.4 x3.6cm (4.48x3.66x1.37in)Product Weight0.45Kg(1 lb)Industry StandardsEMIFCC Part 15 Subpart B Class AEN 55022 Class A EMSEN 61000-4-2 (ESD) Level 3EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3EN 61000-4-8 Traffic ControlNEMA-TS2 VibrationIEC 60068-2-6 FreefallIEC 60068-2-32 ShockIEC 60068-2-27 Rail TrafficEN 50121-4 Lightning Protection Industrial Operating Temperature Dual Power Supply Din-rail Mounted Specification
