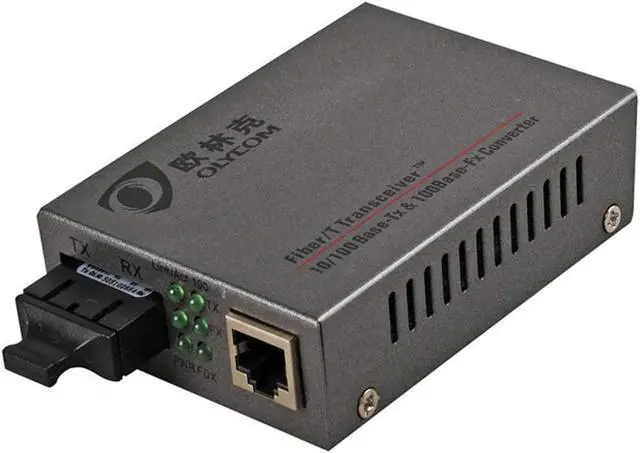

Fast Ethernet CAT5 Converter Singlemode Dual Fiber Optic to RJ45 Transceiver SC 60km
- OPTICAL PORTFast Ethernet,SC Standard,1550nm wavelength, Connect Singlemode Dual Fiber Cable, 60km Transmission Distance
- RJ45 PORT10/100M, Full duplex-flow control, Half duplex-back pressure; Connect UTP CAT5 Cable,Supports MDI/MDI-X auto sensing.

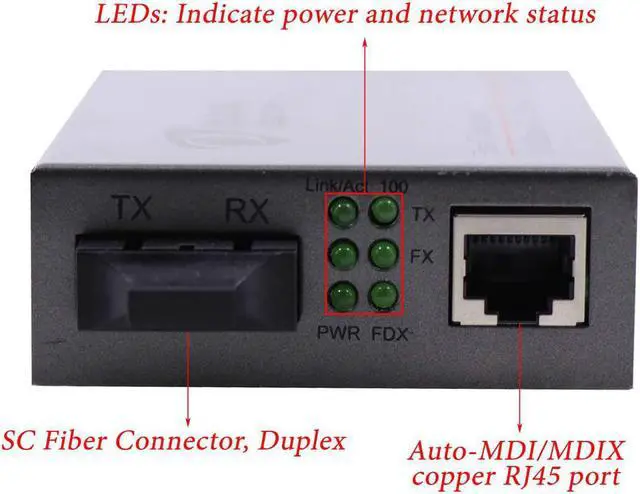

- STANDARDComplies with IEEE IEEE 802.3/802.3u/802.3z/802.3ab. The LED indicators for TX, FXL/TXL,POWER, FDX can dynamic feedback link connection state and fault detection to easily monitor network status.

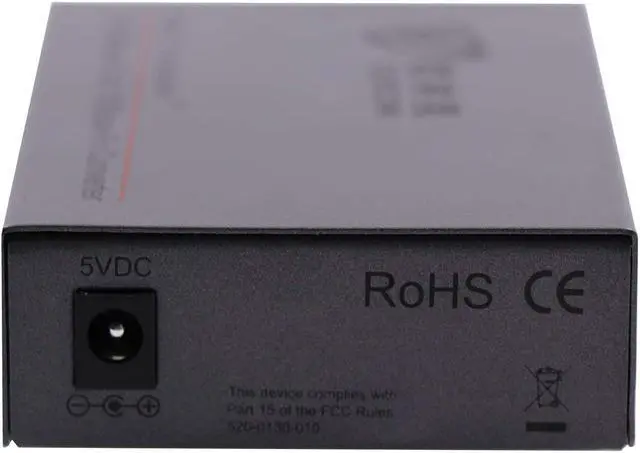

- AVAILABLE FOR CHASSISCan work with 2U 19" 14 slots chassis,support wide power supply voltage (100V-240V).Standalone operating voltage is 5VDC /1.0A.
- WHAT YOU GET1pc Fast Ethernet Fiber Optical Converter; 1pc power supply; one-year warranty, 30 Days free-returned, free Lifelong technology support.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Main Features
100BASE-FX FIBER to 10/100BASE-T COPPER Ethernet conversionAuto-MDI/MDIX copper RJ45 port1600byte super data packet transmissionFull duplex-flow control, half duplex-back pressureFull-positioned LEDs to indicate power and network statusStandard : IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning TreeEthernet port
Copper RJ45 port10/100M Auto-sensingOptical Port
MM, Duplex, 2km, SC connector,1310nmSM, Duplex, 40km, SC connector, 1310nmSM, Duplex, 60km, SC connector, 1550nmSM, Duplex, 80km, SC connector, 1550nmSpecification

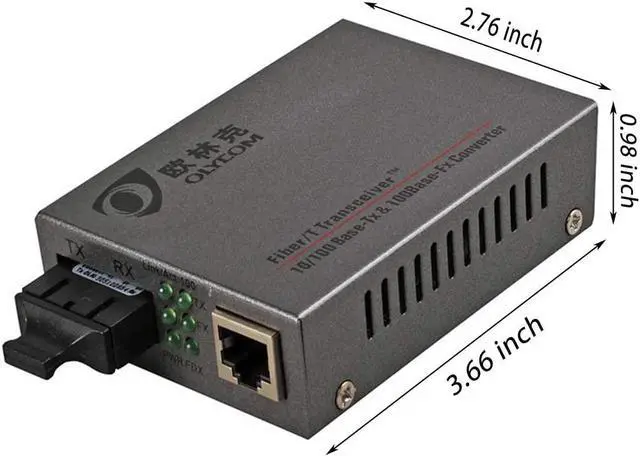

Conversion Mode / Delay Time:Store-and-Forward <10us, straight-through<0.9usDimensions : 2.76 inch*3.66 inch * 0.98 inch (W*D*H)Weight0.3 kgInput VoltageDC5V1A with External power adapterPower Consumption<2.5WMTBF50,000 hoursBER<1/1000000000MAC Address Table1KBuffer Size128KOperating Temperature0-50Storage Temperature-40-70Storage Humidity5%-90% non-condescendingWarranty
One year
100BASE-FX FIBER to 10/100BASE-T COPPER Ethernet conversionAuto-MDI/MDIX copper RJ45 port1600byte super data packet transmissionFull duplex-flow control, half duplex-back pressureFull-positioned LEDs to indicate power and network statusStandard : IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning TreeEthernet port
Copper RJ45 port10/100M Auto-sensingOptical Port
MM, Duplex, 2km, SC connector,1310nmSM, Duplex, 40km, SC connector, 1310nmSM, Duplex, 60km, SC connector, 1550nmSM, Duplex, 80km, SC connector, 1550nmSpecification
Conversion Mode / Delay Time:Store-and-Forward <10us, straight-through<0.9usDimensions : 2.76 inch*3.66 inch * 0.98 inch (W*D*H)Weight0.3 kgInput VoltageDC5V1A with External power adapterPower Consumption<2.5WMTBF50,000 hoursBER<1/1000000000MAC Address Table1KBuffer Size128KOperating Temperature0-50Storage Temperature-40-70Storage Humidity5%-90% non-condescendingWarranty
One year
