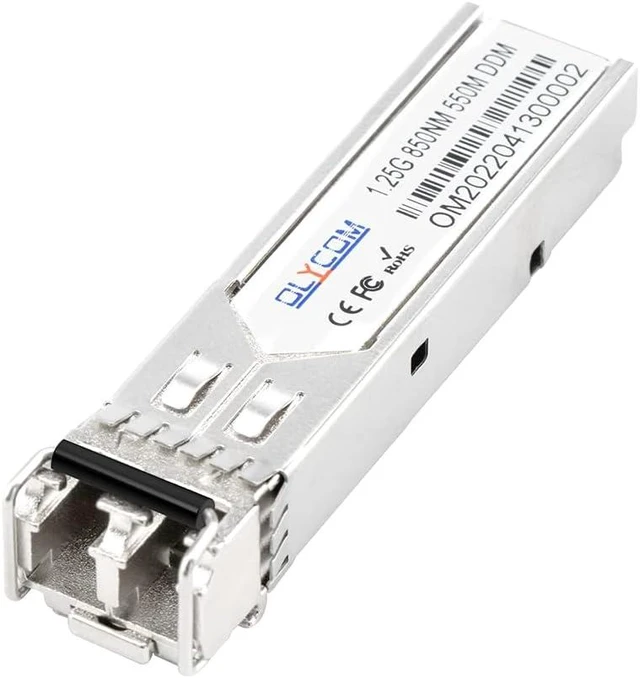

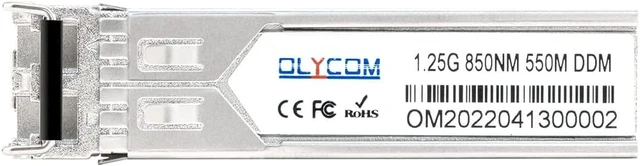

1.25G SFP 1000Base-SX 850nm Industrial MMF Multimode up to 550m Duplex LC DDM for Outdoor Use (10Pack)
- Rate and Distance: Up to 1.25Gb/s 1000Base-SX Data Links, 850nm Multimode Dual Fiber 550M LC DDM. Support Hot-Pluggable.
- Application: The industrial 1000Base-SX can be used on industrial fiber media converter, fiber switch, and server which the operating environment is harsh and require stable and high-quality transceivers.
- Electrical and Optical: Electrical Characteristics(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts) ;Optical Parameters(Optical Output Power: -9 to -3 dBm, RX Sensitivity: -18dBm).
- Industrial Working Environment: Industrial operating temperature range: -40°C to 85°C; Storage Temperature:-40°C to 85°C.

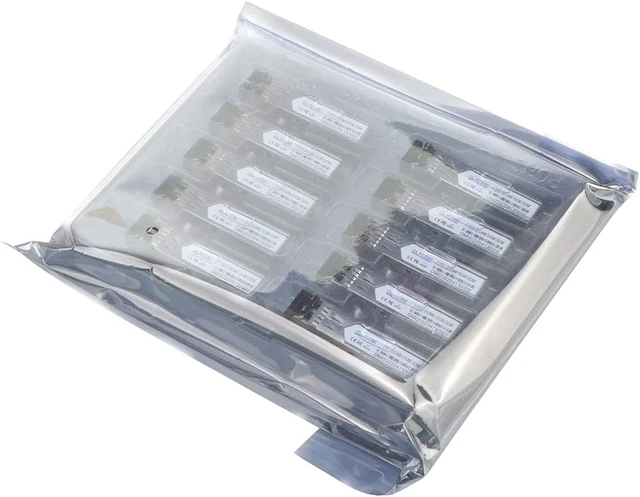

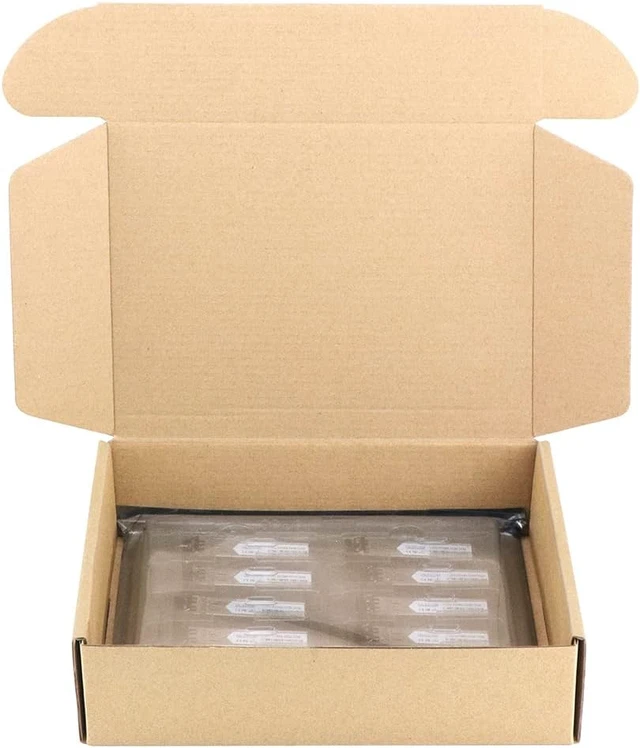

- What You Get: 10pcs 1.25Gb/s 1000Base-SX 550m SFP Transceiver Duplex 850nm Multi-mode Industrial SFP Module.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Description
OLYCOMs OSPL1G05D 1000Base-SX SFP Transceiver is a high-performance, cost-effective module which has a duplex LC optics interface. The SFP is hot-Pluggable and uses an 85 0nm VCSEL laser transmitter. The working temperature is -40°C to 85°C.
Features
Up to 1.25Gb/s Data Links.
Support Hot-Pluggable.
Duplex LC connector.
Up to 550m on 50/125m MMF. 850nm VCSEL laser transmitter.
Single +3.3V Power Supply.
Monitoring Interface Compliant with SFF-8472.
Maximum Power <1W.
Industrial operating temperature range: -40°C to 85°C.
RoHS is compliant and Lead-Free.
Comply with international Electromagnetic Compatibility (EMC) and international safety requirements and standards.
Application
Metro/Access Networks
1.25 Gb/s 1000Base-SX Ethernet
1×Fibre Channel Other Optical Links
