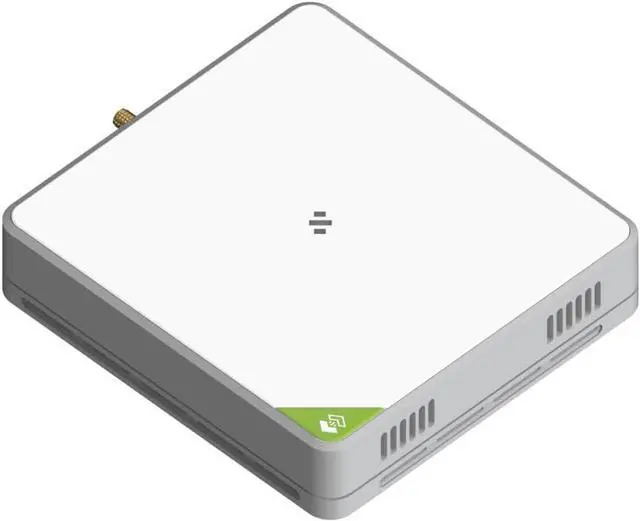

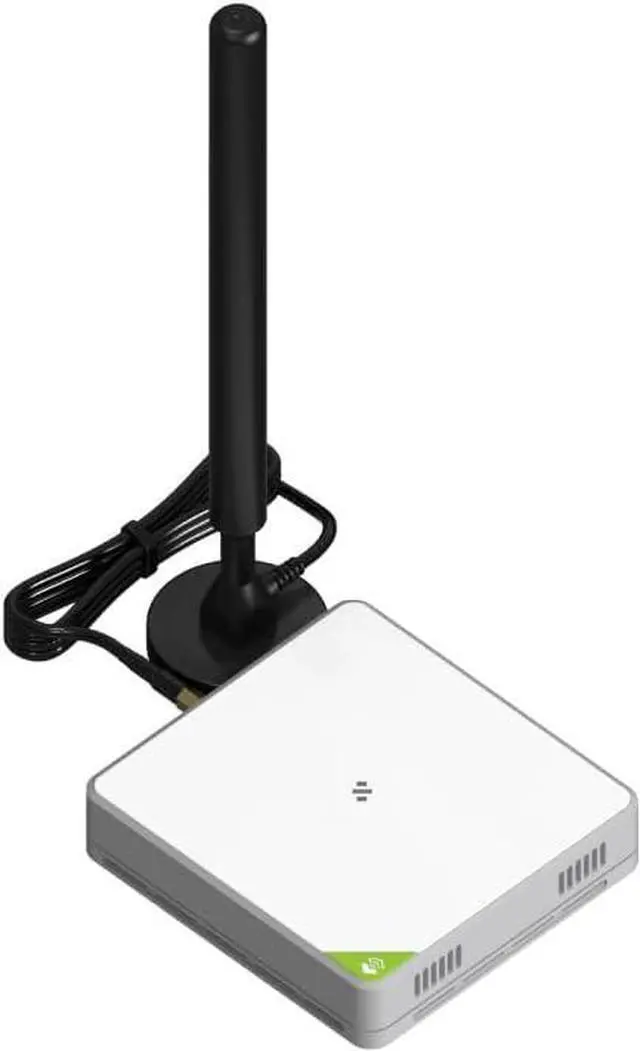

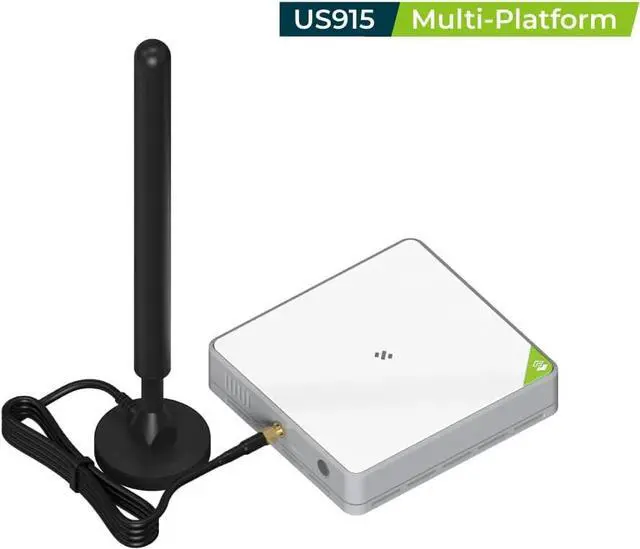

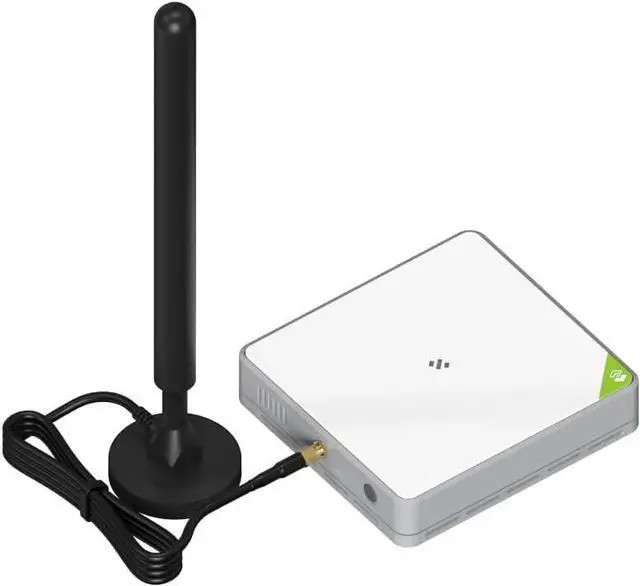

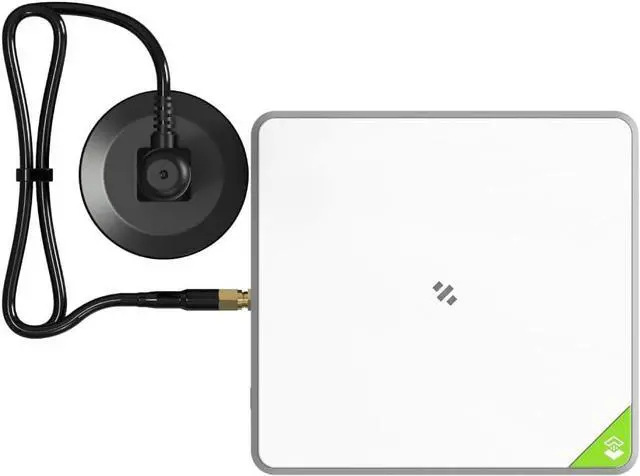

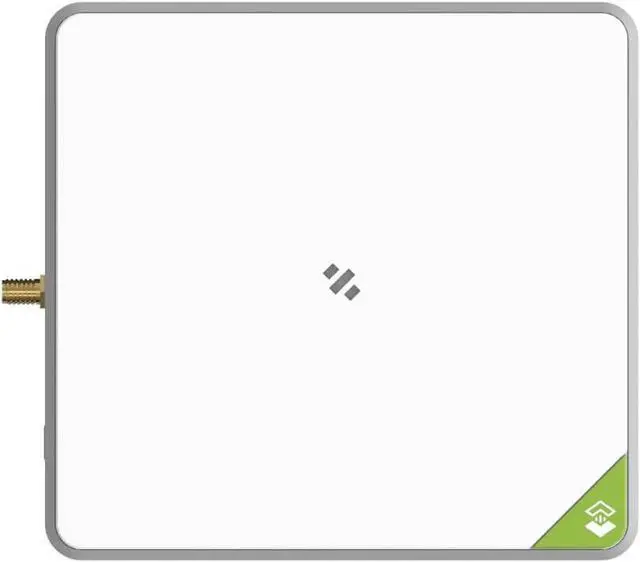

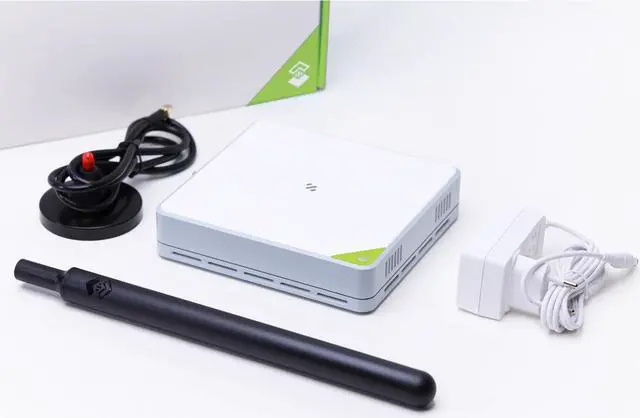

SenseCAP Multi-Platform LoRaWAN Indoor Gateway(SX1302-4G) - US915 (M2- US915)
- Support Multiple LoRaWAN Network ServersCompatible with multiple LNS like AWS, TTN, ChirpStack, etc. via using the Packet Forwarder / Basics Station mode.
- Built-in LoRaWAN Network ServerBased on Chirpstack, provides a fast and reliable solution for launching a LoRaWAN network.
- Built-in SenseCAP Local Console for ConfigurationProvides a simple setup experience to configure the device on Web UI through Wi-Fi AP and Ethernet.
- Support Power-over-Ethernet (PoE)For users who need to power the gateway on Ethernet instead of an extra power supply cable, the PoE feature is also added to this device, making your deployment more reliable and faster.
- Wide-range Coverage and Strong SignalProvides up to 10km of LoRaWAN coverage and strong signal, allowing users to send data with extremely long ranges at low data rates.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SenseCAP M2 Multi-Platform LoRaWAN Gateway is a standard LoRaWAN gateway that supports connecting to different network servers. Itsupports global LoRaWAN frequency plans from 865 MHz to923 MHz andcan be used in multiple LoRaWAN applications like smart building,environmental monitoring systems, precision farming, etc. It haswide-range coverage and strong signal output capability and otherfeatures, making it the perfect gateway for building a LoRaWAN network.
The Gateway can be set up easily out of the box. Users can bind and manage the device through SenseCAP Mate APP and SenseCAP Portal in 4 steps. After that, users can start configuring the sensors in the same way to create the LoRaWAN network solutions.
Scan the QR code for device binding
Connect gateway to internet and power on
Check gateway status on the SenseCAP platform
Connect sensors to the network and upload data to the cloud
Processor MT7628(MIPS24KEc@580MHz)RAMDDR2 128MBFlash32MBLong Range Gateway ChipSX1302Channel8LoRaWAN ProtocolV1.0.3 Class A/Class B/Class CFrequency PlanUS915Wi-Fi Support 2.4 GHz 802.11 b/g/nEthernet1xRJ45 (10M / 100 M), PoE PD supportOperating Temperature-20°C to 55°CRelative Humidity0% - 85% (non-condensing) Here is the network architecture for reference Applications Specifications
The Gateway can be set up easily out of the box. Users can bind and manage the device through SenseCAP Mate APP and SenseCAP Portal in 4 steps. After that, users can start configuring the sensors in the same way to create the LoRaWAN network solutions.
Scan the QR code for device binding
Connect gateway to internet and power on
Check gateway status on the SenseCAP platform
Connect sensors to the network and upload data to the cloud
Processor MT7628(MIPS24KEc@580MHz)RAMDDR2 128MBFlash32MBLong Range Gateway ChipSX1302Channel8LoRaWAN ProtocolV1.0.3 Class A/Class B/Class CFrequency PlanUS915Wi-Fi Support 2.4 GHz 802.11 b/g/nEthernet1xRJ45 (10M / 100 M), PoE PD supportOperating Temperature-20°C to 55°CRelative Humidity0% - 85% (non-condensing) Here is the network architecture for reference Applications Specifications
