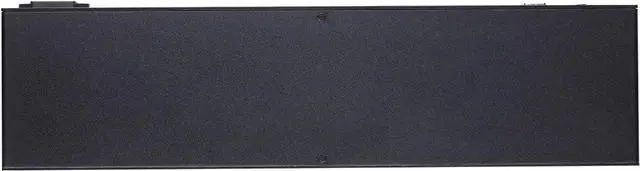

Q515G6Intel Celeron Processor 3865U 2M Cache, 1.80 GHzQ525G6Intel Celeron Processor 3965U 2M Cache, 2.20 GHzQ530G6 Intel Core i3-6100U,2.3GHz,dual coreQ535G6Intel Core i3-7100U Processor,3M Cache, up to 2.40 GHzQ550G6Intel Core i5-6200U,2.3GHz,to 2.8GHz,dual coreQ555G6Intel Core i5-7200U Processor,3M Cache, up to 3.10 GHzQ570G6 Intel Core i7-6500U,2.5GHz,to 3.1GHz,dual coreQ575G6Intel Core i7-7500U Processor,4M Cache, up to 3.50 GHz Item nameQ500G6 with 1U Rack.
Dimension440*112*44MM(L*H*W)
Memory(RAM):DDR4L SO-DIMM Socket (Up 16G,2133MHz)
Storage:1x 2.5 inch HDD/SSD 1X full length Mini-PCIE for Msata
LAN:6 * Intel I211-AT- 10/100/1000 Controller
WiFi :Option 1 : USB WIFI RT3070( by default)
Option 2 : Antheros PCIE WIFI (choose it,there will be 5 LAN works )
(For option 1,pls use it on AP mode Pfsense settings)
Audio Solution:Realtek ALC662 6-Channel HD Audio
Expansion port:1x SIM card slot , 2*RS-485(optional)

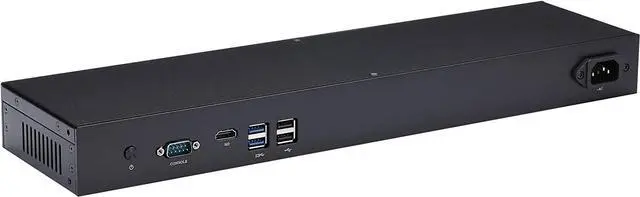

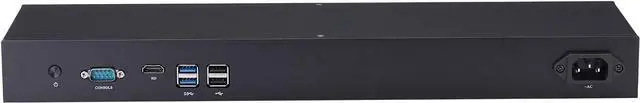

Front-Panel:
Connectorspower on/off button
HDD LED, Power LEDs
2 *USB 2.0 Ports
2 * USB 3.0 ports
Serial port: 1RS-232(COM 1)
HD Video port

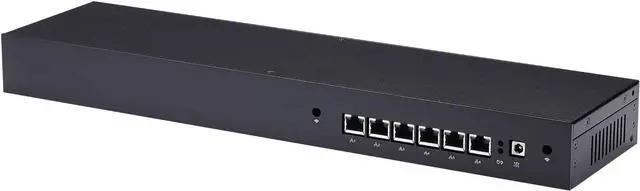

Rear-Panel Connectors
12V DC input ,(DC Jack 5.5mm,2.5mm)
6* Intel RJ-45 Ports for Gigabit LAN
1)Mini PC supports Windows, Linux, pfSense, CentOS, Sophos, OPNsense, VyOS, Linux iptables, Untangle, etc. It will comes with inactive Windows 10 inactive and without any Windows license. If you prefer to install other OS, please leave a message,you also can reinstall OS by yourself.
2)F11 key boot from USB Drive. Delete key enter BIOS.
1 x Mini PC
1 x Power supply: adapter and plug (US/ UK/ EU/ AU/ IT standard)
2 x ears
1 x Packaing box
2 x Antennas if order Wi-Fi.(If you choose Wifi option)
CPU onboard,You can choose what CPU you want. Operating System Packing List
