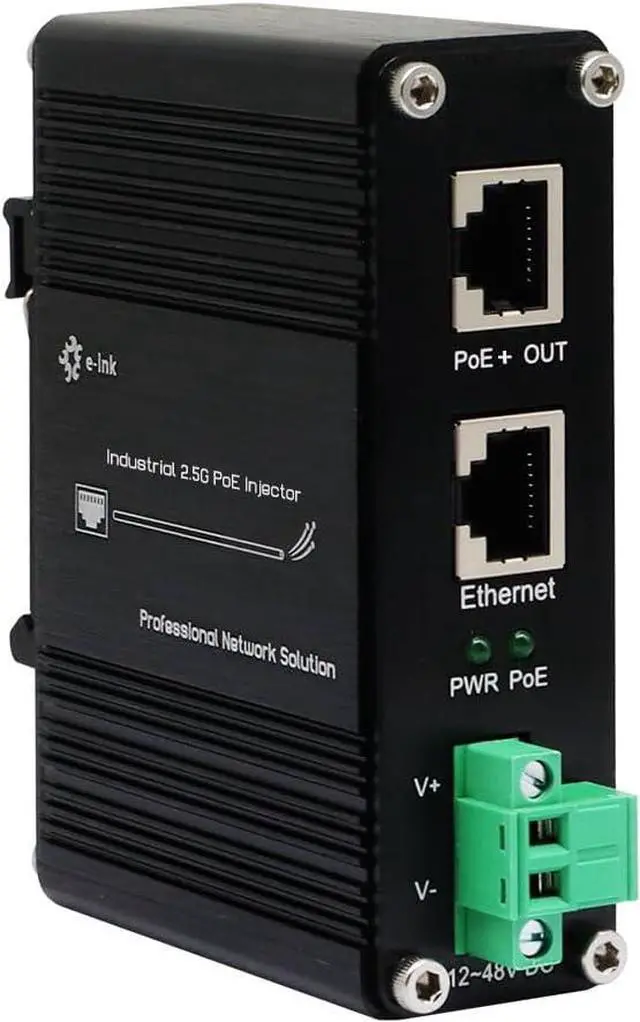

E-link Hardened Industrial 2.5G PoE+ Injector, 12~48V Input PoE+ Adapter, IEEE802.3af/at 30W Output up to 328ft, Din-Rail and Wall-Mount Installation

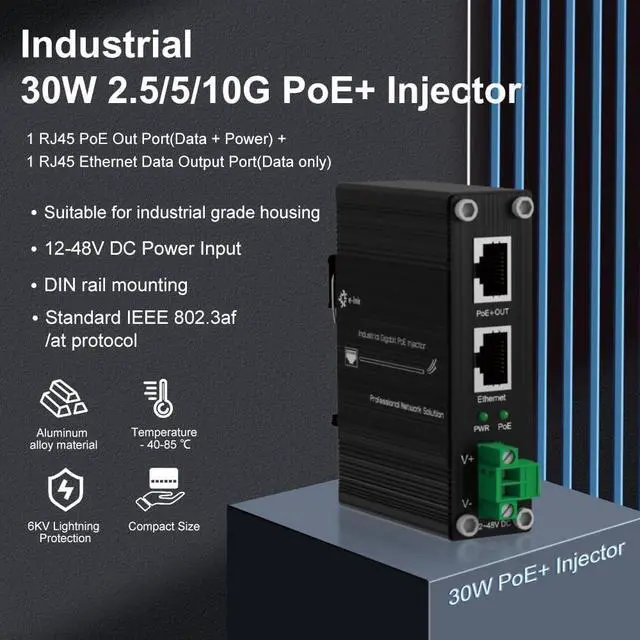

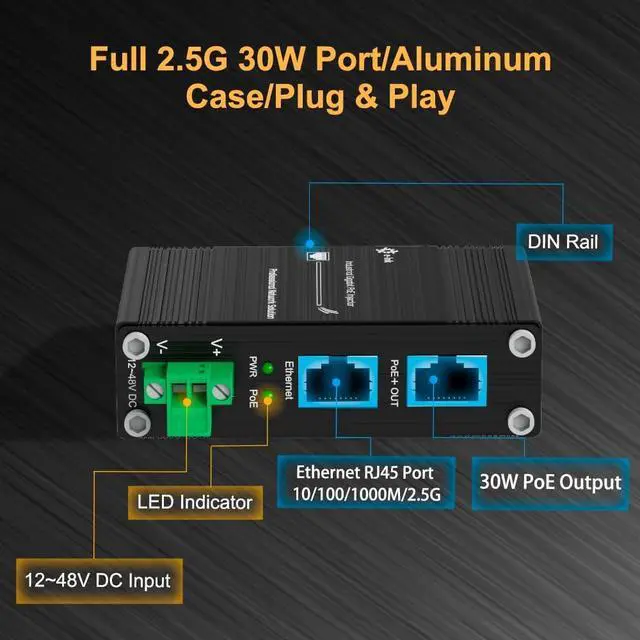

Port Configuration - Equipped with 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power), support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment.
12~48VDC Power Input - This poe injector can use 12V or 24V input and boost to 48V PoE output, so you no longer need to consider the voltage of the powered device, it becomes more convenient.

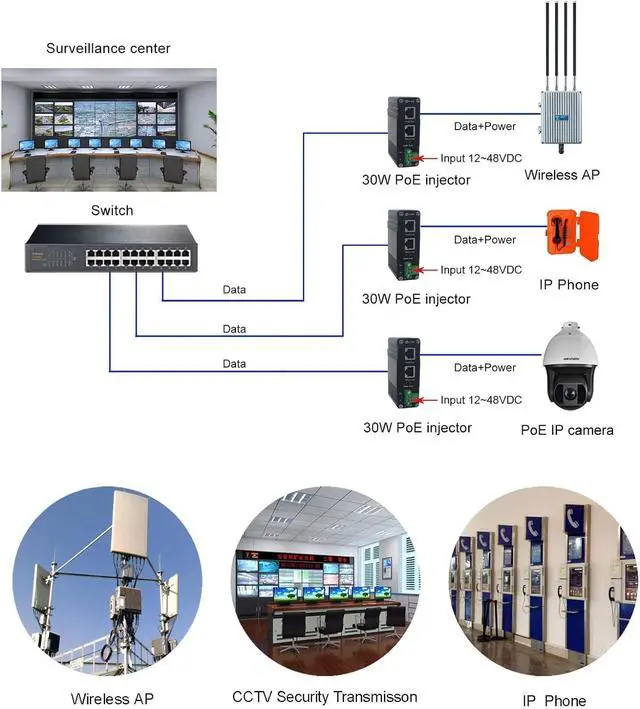

Hardened 2.5G High Power- The poe adapter allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m, support 10/100/1000/2.5G Base-TX.

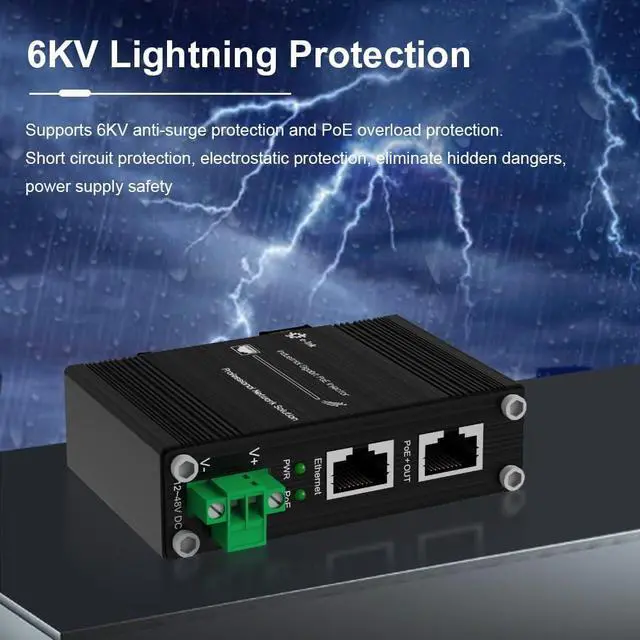

6KV Lightning Protection- Our poe injector has IP40 protection grade and adopts surge protection design and makes it can be used in harsh environment and can survive from lightning strikes up to 6KV. The operation temperature is -40 to 80 ( -40 to 176).

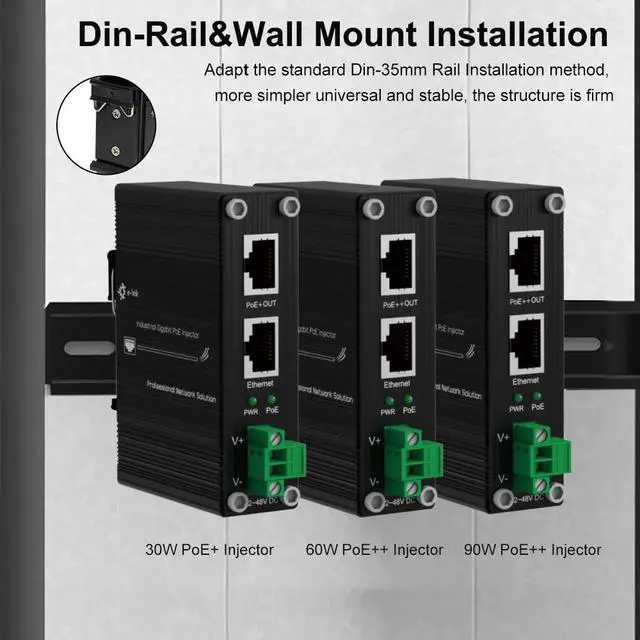

Din-Rail & Wall Mount- The poe injector with industrial grade aluminum alloy housing supports 10/100/1000 Base-T Giga

Overview

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

StandardsIEEE 802.3 af/at Power over EthernetForward Filter Rate3, 720, 000pps ( 2.5G bps)Cabling10/100/1000/ 2.5G
Base-T: Cat6A or aboveMaximum DistanceCat6A UTP up to 100mConnector2x RJ45Input Power12~48VDC (Terminal Block) Power Consumption36W Max. Power Pin Assignment4/5(+), 7/8(-)Max. Power per Port30W Max per port (Alternative B Mode) Dimensions (WxDxH) 95 x 70 x 30 mmWeight 0.25K gMounting OptionsDIN-Rail / Wall-mountMTBF >200, 000hrsOperating Temperature-40°C to 80°C (-40°F to 176°F) Product Description
