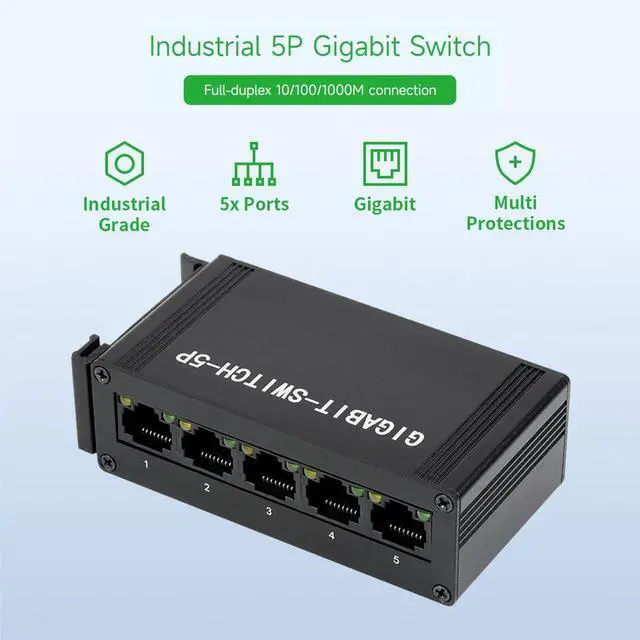

Waveshare Industrial Grade 5P Gigabit Ethernet Switch IEEE 802.3X-Compliant Full-Duplex 10/100/1000M Connection DIN Rail Mount

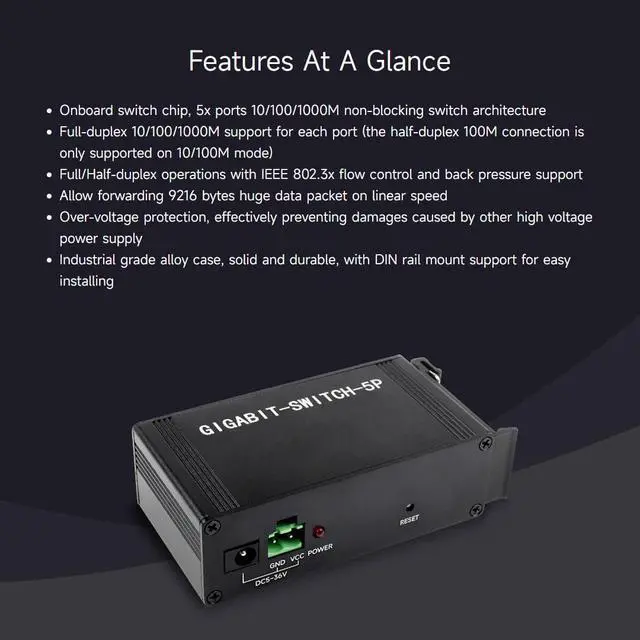

- Onboard switch chip, 5x ports 10/100/1000M non-blocking switch architecture; Full-duplex 10/100/1000M support for each port (the half-duplex 100M connection is only supported on 10/100M mode)
- Full/Half-duplex operations with IEEE 802.3x flow control and back pressure support; Allow forwarding 9216 bytes huge data packet on linear speed

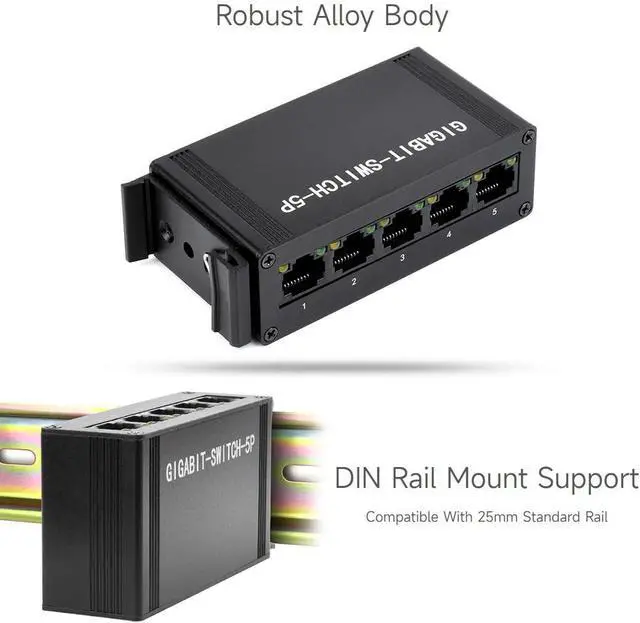

- Industrial solid and durable grade alloy case, with DIN rail mount (Compatible with 25mm standard rail), support for easy installing

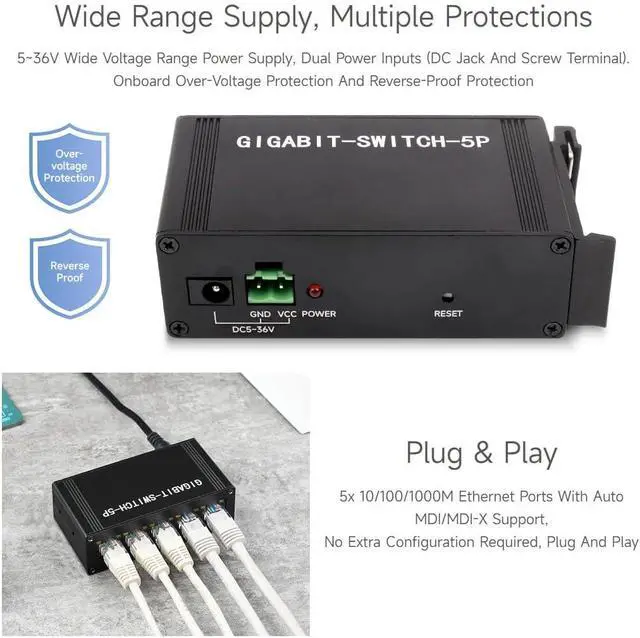

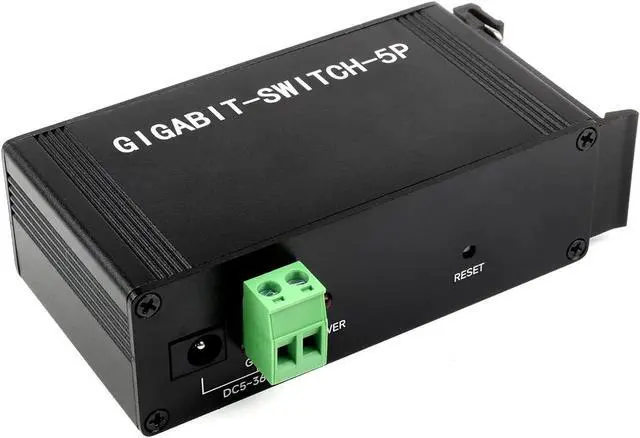

- 5~36V wide voltage range power supply, dual power inputs (DC Jack And Screw Terminal); Onboard over-voltage protection and reverse-proof protection
- 5x 10/100/1000M ethernet ports with auto MDI/MDI-X support, no extra configuration required, plug and play
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Onboard switch chip, 5x ports 10/100/1000M non-blocking switch architecture; Full-duplex 10/100/1000M support for each port (the half-duplex 100M connection is only supported on 10/100M mode)
Full/Half-duplex operations with IEEE 802.3x flow control and back pressure support; Allow forwarding 9216 bytes huge data packet on linear speed
Industrial solid and durable grade alloy case, with DIN rail mount (Compatible with 25mm standard rail), support for easy installing
5~36V wide voltage range power supply, dual power inputs (DC Jack And Screw Terminal); Onboard over-voltage protection and reverse-proof protection
5x 10/100/1000M ethernet ports with auto MDI/MDI-X support, no extra configuration required, plug and play
Full/Half-duplex operations with IEEE 802.3x flow control and back pressure support; Allow forwarding 9216 bytes huge data packet on linear speed
Industrial solid and durable grade alloy case, with DIN rail mount (Compatible with 25mm standard rail), support for easy installing
5~36V wide voltage range power supply, dual power inputs (DC Jack And Screw Terminal); Onboard over-voltage protection and reverse-proof protection
5x 10/100/1000M ethernet ports with auto MDI/MDI-X support, no extra configuration required, plug and play
