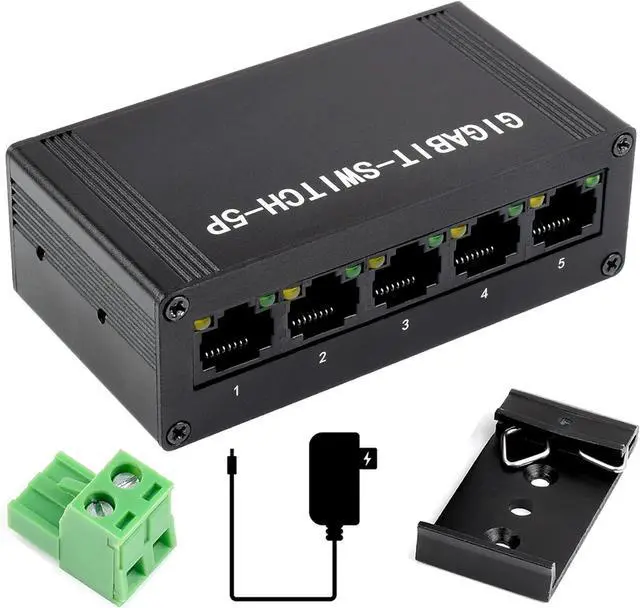

waveshare Industrial Grade 5 Ports Gigabit Ethernet Switch, IEEE 802.3X-Compliant Full-Duplex 10/100/1000M Connection Plug and Play, DIN Rail Mount Onboard Multi Protections

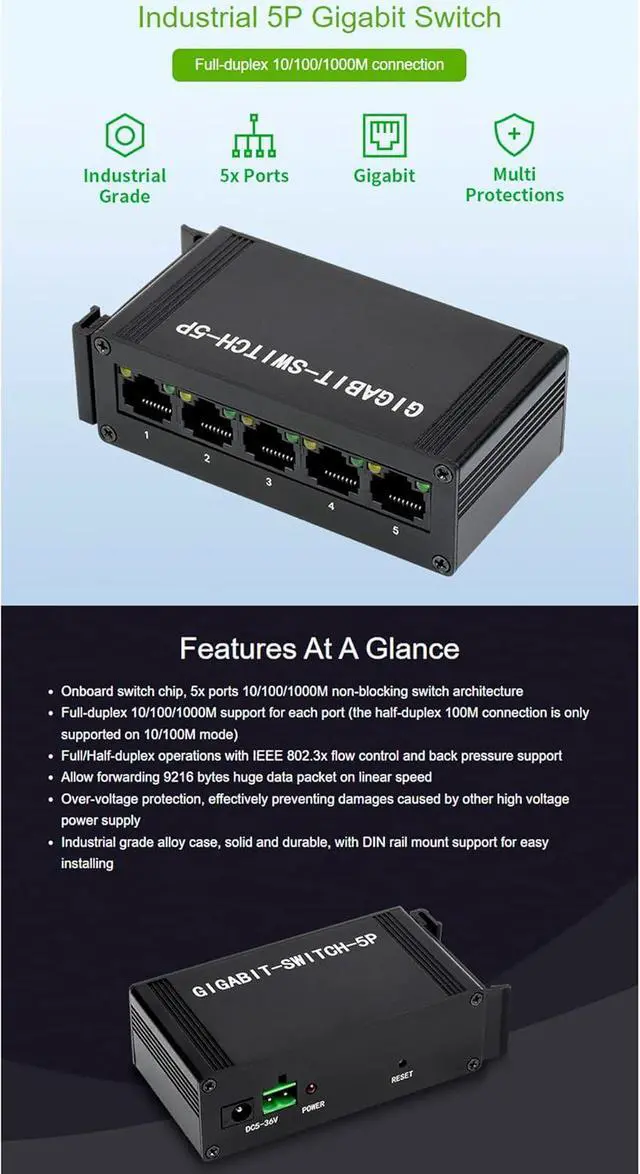

- Industrial 5 Ports Gigabit switch, Onboard switch chip, 5-port 10/100/1000M non-blocking switch architecture. Supply voltage: 5~36V. Main chip: RTL8367N.
- Full-duplex 10/100/1000M support for each port (the half-duplex 100M connection is only supported on 10/100M mode). Full/Half-duplex operations with IEEE 802.3x flow control and back pressure support. Allow forwarding 9216 bytes huge data packet on linear speed.

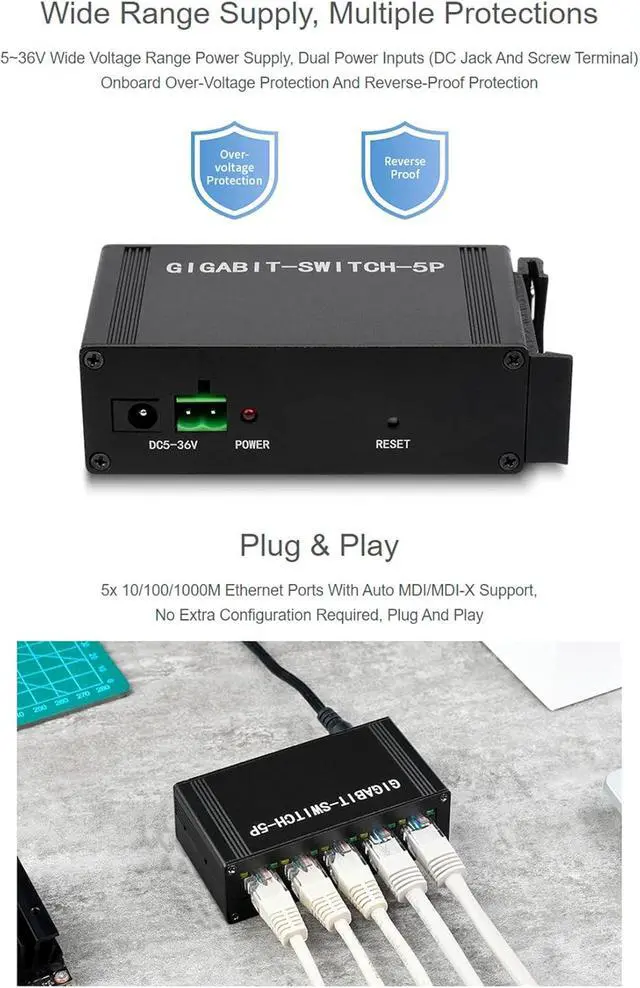

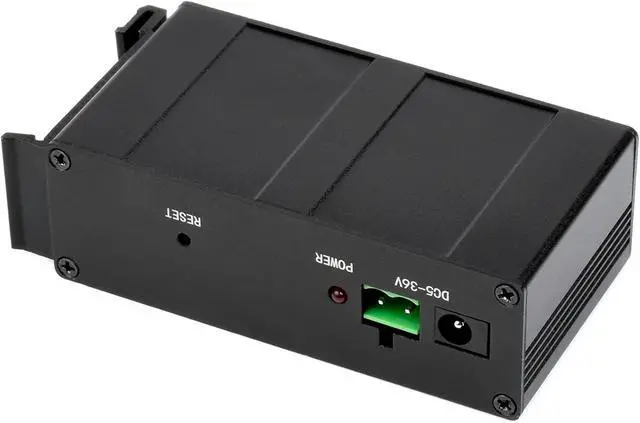

- Wide range supply, Multiple protections: 5~36V wide voltage range power supply, dual power inputs (DC jack and screw terminal) onboard over-voltage protection and reverse-proof protection , effectively preventing damages caused by other high voltage power supply.

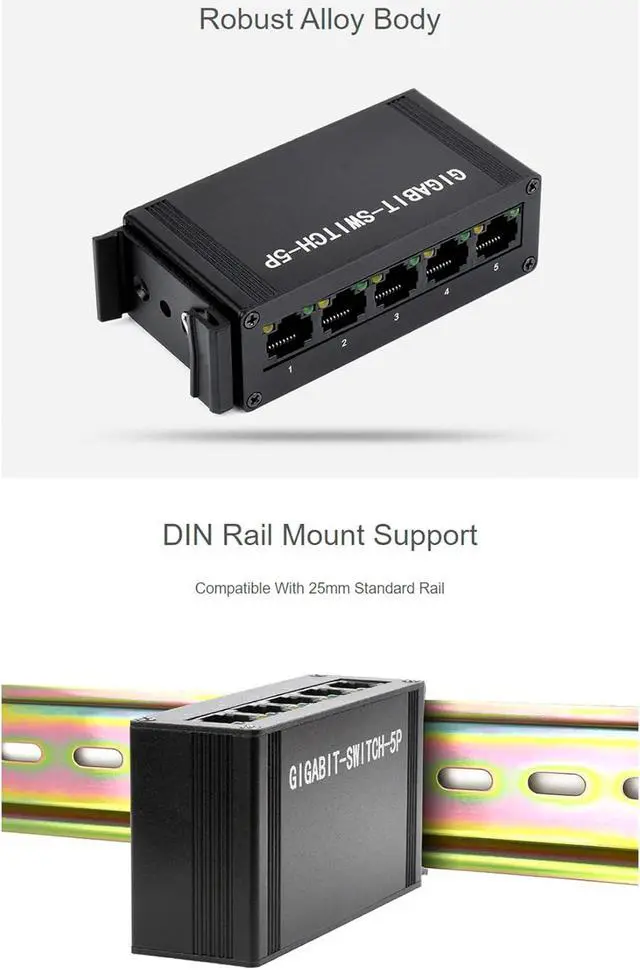

- DIN rail mount support,compatible with 25mm standard rail. Plug & Play:5x 10/100/1000M Ethernet ports with Auto MDI/MDI-X support, no extra configuration required, plug and play.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Industrial 5 Ports Gigabit switch, Onboard switch chip, 5-port 10/100/1000M non-blocking switch architecture. Supply voltage: 5~36V. Main chip: RTL8367N.
Full-duplex 10/100/1000M support for each port (the half-duplex 100M connection is only supported on 10/100M mode). Full/Half-duplex operations with IEEE 802.3x flow control and back pressure support. Allow forwarding 9216 bytes huge data packet on linear speed.
Wide range supply, Multiple protections: 5~36V wide voltage range power supply, dual power inputs (DC jack and screw terminal) onboard over-voltage protection and reverse-proof protection , effectively preventing damages caused by other high voltage power supply.
DIN rail mount support,compatible with 25mm standard rail. Plug & Play:5x 10/100/1000M Ethernet ports with Auto MDI/MDI-X support, no extra configuration required, plug and play.
Full-duplex 10/100/1000M support for each port (the half-duplex 100M connection is only supported on 10/100M mode). Full/Half-duplex operations with IEEE 802.3x flow control and back pressure support. Allow forwarding 9216 bytes huge data packet on linear speed.
Wide range supply, Multiple protections: 5~36V wide voltage range power supply, dual power inputs (DC jack and screw terminal) onboard over-voltage protection and reverse-proof protection , effectively preventing damages caused by other high voltage power supply.
DIN rail mount support,compatible with 25mm standard rail. Plug & Play:5x 10/100/1000M Ethernet ports with Auto MDI/MDI-X support, no extra configuration required, plug and play.
