8 Port PoE Switch With 2 Uplink 120W Extend to 250Meter Unmanaged 803.af/at

10/100 Mbps access, Dual RJ45 port uplink

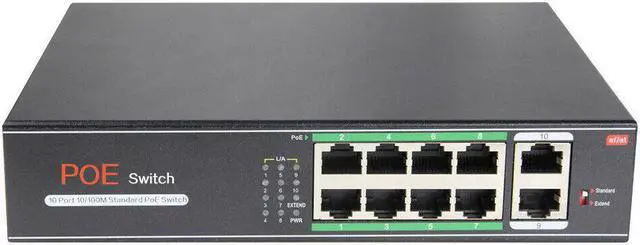

Provides 8*10/100 Base-TX RJ45 ports and dual uplink power ports, which is more
convenient for users to flexibly set up to meet the network requirements of various scenarios

Support non-blocking wire-speed forwarding.

Support full-duplex based on IEEE 802.3 x and half-duplex based on backpressure.








Intelligent PoE power supply function

8*10/100 Base-TX RJ45 ports support PoE power supply, which meets the needs of PoE
power supply in various scenarios in the security field

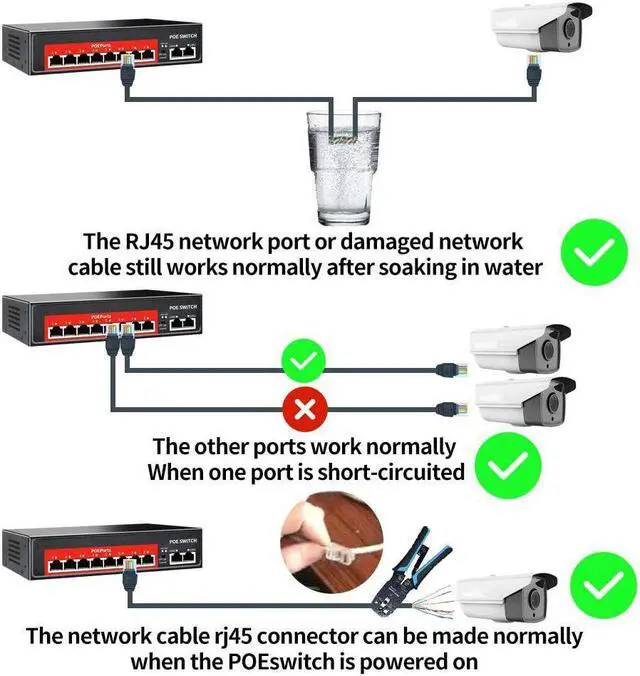

Comply with IEEE 802.3 af /at PoE power supply standard, automatically identify PoE devices
for power supply without damaging non-PoE devices. The maximum PoE output power is 65W,
and the maximum PoE output power of a single port is 30W






Innovative function (only with function switch type)

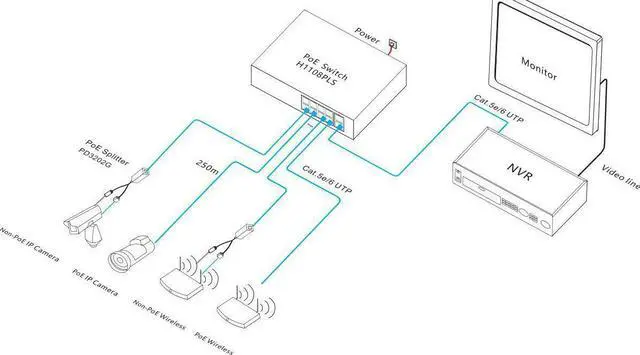

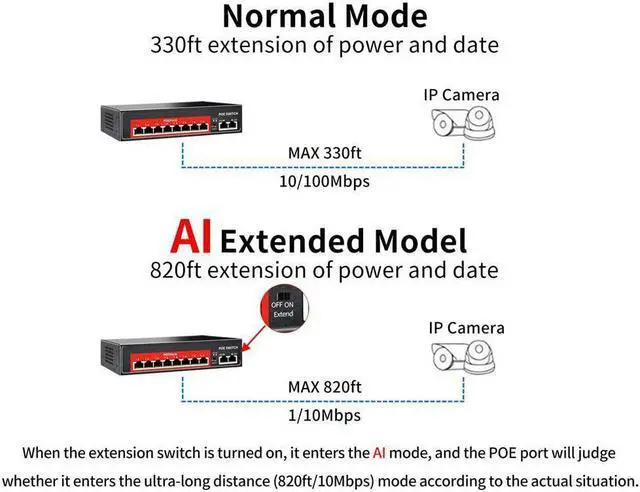

Long distance file: When opening, the speed of 1-8 port is reduced to 10M. With the existing
twisted pair cable, the transmission limit of the twisted pair line can be broken, and the
transmission distance can reach 250 meters; on the other hand, It can solve the problem of
poor transmission caused by line aging.

Video monitoring mode: Open with the long distance switch, 1-4 ports are isolated from each
other but communicate with 9-10 ports to prevent DHCP conflicts, optimize port cache
utilization, and reduce broadcast storms.






The equipment is stable and reliable

The host has low power consumption, no fan and silent design, galvanized steel and metal
casing, and excellent heat dissipation to ensure stable operation of the product

The equipment fully complies with the CCC, CE, FCC, RoHS safety requirements, and is safe
and reliable.

The equipment is stable and reliable

The host has low power consumption, no fan and silent design, galvanized steel and metal
casing, and excellent heat dissipation to ensure stable operation of the product

The equipment fully complies with the CCC, CE, FCC, RoHS safety requirements, and is safe
and reliable.
Model

PS-82-96
Interface Characteristics
Fixed Port
8*10/100Base-TX PoE ports (Data/Power)

2*10/100Base-TX uplink RJ45 ports (Data)
Ethernet Port
Port 1-8 can support IEEE 802.3 af/at standard PoE power supply
Functional Switch
1*(Extender+ CCTV)
Note: when the switch state changes, it must be restarted before the PoE
switch function can take effect
Chip Parameter
Network Protocol
IEEE 802.3 10BASE-T; IEEE 802.3 i 10Base-T;

IEEE 802.3 u 100Base-TX;

IEEE 802.3 x
PoE Standard
IEEE 802.3 af/at international standard
Ethernet Port
Port 1-10 can support 10/100BaseT (X) auto detect, full / half duplex MDI / MDI-X adaptive
Forwarding Mode
Store and Forward (Full Wire Speed)
Switching Capacity
2Gbps (Non-blocking)2Gbps
Forwarding
Rate@64byte
1.488M pps
Mac
1K
Buffer Memory
768K
Twisted Pair
Transmission
10BASE-TX: Cat5 or later UTP (250 meter)
100BASE-TX: Cat5 or later UTP (100 meter)
LED Indicator
power indicator: PWR
(green); network indicator: Link (yellow); POE
working indicator: PoE (green) functional switch indicator: EXTEND (green)
PoE & Power
PoE Port
Port 1 to 8 IEEE 802.3 af/at @ POE
Power Supply Pin
Default 1/2(+), 3/6(-); Optional 4/5(+), 7/8(-) 2-pairs power supply
Max Power Per Port
30W/ 15.4W
Total PWR / Input Voltage
120W (AC100-240V)
Power Supply

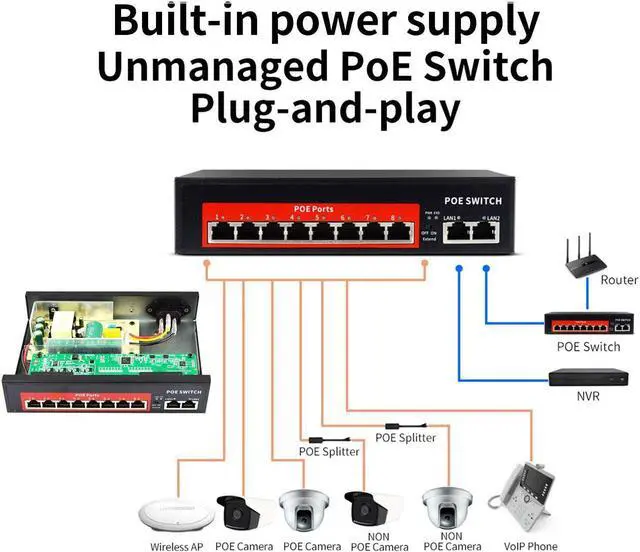

Built-in switching power supply,
AC100~240V 50-60Hz 2.2A
Power Consumption
Standby
