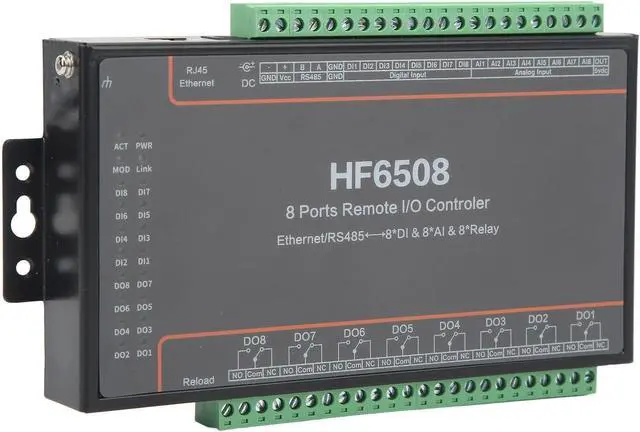

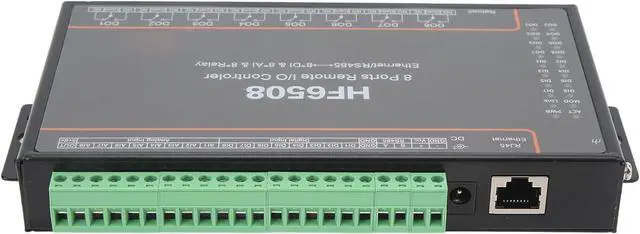

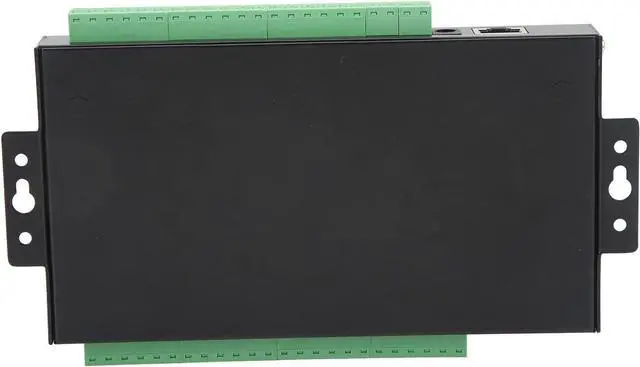

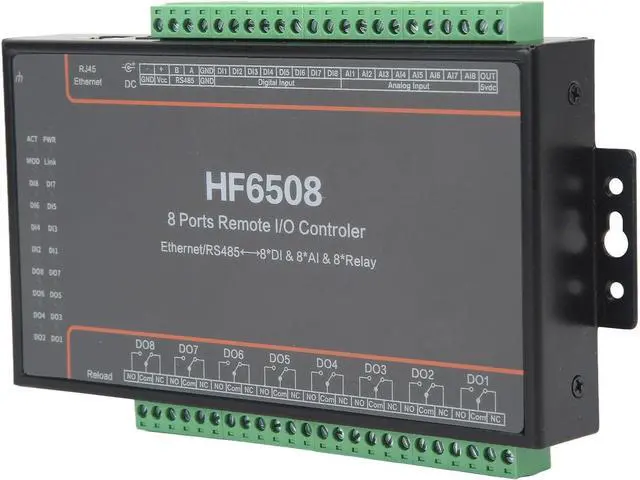

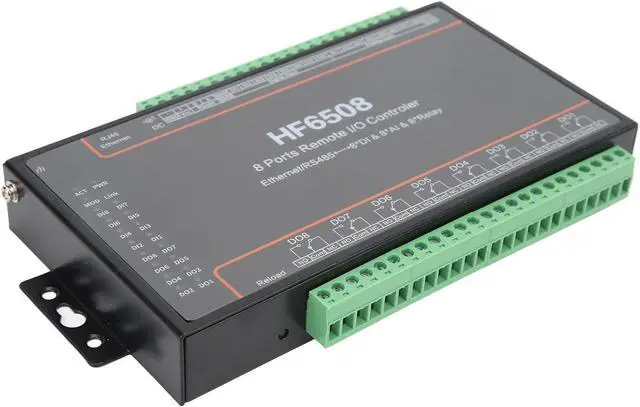

Yosoo Relay Network Controller, Ethernet Relay Ethernet Remote Controller with Serial Wiring Cable 540V DC for Network
- Robustethernet remote controller supports RS485 and utilizes the modus protocol, allowing control over 8 digital inputs, 8 analog inputs, and 8 digital outputs, making it versatile for various applications.
- P2P Remote AccessWith relay with ethernet P2P function, users can achieve remote relay control and data acquisition through PC or mobile devices, ensuring convenient access and management from anywhere, enhancing flexibility.
- Diverse ApplicationsIdeal for building control systems, theethernet relay is for corridor lighting, voice-activated switches, and agricultural IOT environmental monitoring, enhancing al efficiency in multiple settings.
- Flexible Network SupportDesigned for adaptability, the adapter module tester supports 10/100M Ethernet and various protocols, ensuring easy configuration via web page or IOT software for seamless integrations.
- Clear Status IndicatorsThe relay network controller features independent indicator lights to clearly display the input and
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1. Indicator Light: The 8 way switch input and output status are displayed by independent indicator lights, which can immediately know the input and output status of the switch.
2. Transmission: Support RS485 transmission, adopts modus protocol to control 8 Dl, 8 Al and 8 DOUs interfaces, and supports STA, AP, AP and STA mode.
3. Support: Support 10/100M Ethernet adaptation, support HF6208 HF6508, web page, IOT Service PC software easy configuration, compliance with for MODBUS TCP and for MODBUS RTU protocol.
4. Applications: Used in building control systems for corridor lighting, voice activated switches, webcams, lighting, sensors, and can also be used for agricultural IOT environmental monitoring.
5. P2P Function: Remote relay control, switch acquisition, and analog, volume acquisition can be realized anywhere through PC or mobile phone P2P software.
Spec:
Item Type: Relay Network Controller
MaterIal: Cold rolled steel
Web OTA Wireless Upgrade: Support (HF6208 or HF6508)
Web PC Software IOT Service Configuration: Support (HF6208 or HF6508)
DI Input Voltage Range: 3-30V
Al Input Voltage Range: 0-5V
Input Current Range: 0 to 25mA
Supply Voltage: 5-40V DC
Upper Layer Protocol: for MODBUS TCP and for MODBUS RTU
Low Level Communication: Ethernet, RS485
Response Time: HF6508:
Power Consumption (relay non absorbing state): HF6508:
Operating Temperature: -40-85°C
Storage Temperature: -45-165 °C
Humidity Range: 5-95% relative humidity
packing list:

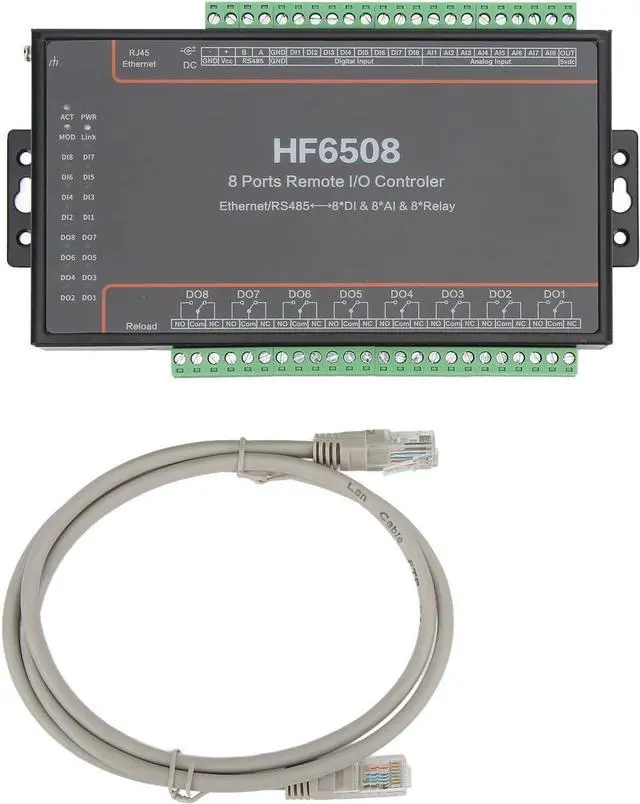

1 x Controller1 x Serial Wiring Cable
1 x Manual
Note:
1. Do not place the product in a humid and high temperature environment!
2. Please follow the use voltage for power supply, the use of other voltages can easily cause fire and product damage!
Manufacturer Contact Information 1
Manufacturer Contact Information
2. Transmission: Support RS485 transmission, adopts modus protocol to control 8 Dl, 8 Al and 8 DOUs interfaces, and supports STA, AP, AP and STA mode.
3. Support: Support 10/100M Ethernet adaptation, support HF6208 HF6508, web page, IOT Service PC software easy configuration, compliance with for MODBUS TCP and for MODBUS RTU protocol.
4. Applications: Used in building control systems for corridor lighting, voice activated switches, webcams, lighting, sensors, and can also be used for agricultural IOT environmental monitoring.
5. P2P Function: Remote relay control, switch acquisition, and analog, volume acquisition can be realized anywhere through PC or mobile phone P2P software.
Spec:
Item Type: Relay Network Controller
MaterIal: Cold rolled steel
Web OTA Wireless Upgrade: Support (HF6208 or HF6508)
Web PC Software IOT Service Configuration: Support (HF6208 or HF6508)
DI Input Voltage Range: 3-30V
Al Input Voltage Range: 0-5V
Input Current Range: 0 to 25mA
Supply Voltage: 5-40V DC
Upper Layer Protocol: for MODBUS TCP and for MODBUS RTU
Low Level Communication: Ethernet, RS485
Response Time: HF6508:
Power Consumption (relay non absorbing state): HF6508:
Operating Temperature: -40-85°C
Storage Temperature: -45-165 °C
Humidity Range: 5-95% relative humidity
packing list:
1 x Controller1 x Serial Wiring Cable
1 x Manual
Note:
1. Do not place the product in a humid and high temperature environment!
2. Please follow the use voltage for power supply, the use of other voltages can easily cause fire and product damage!
