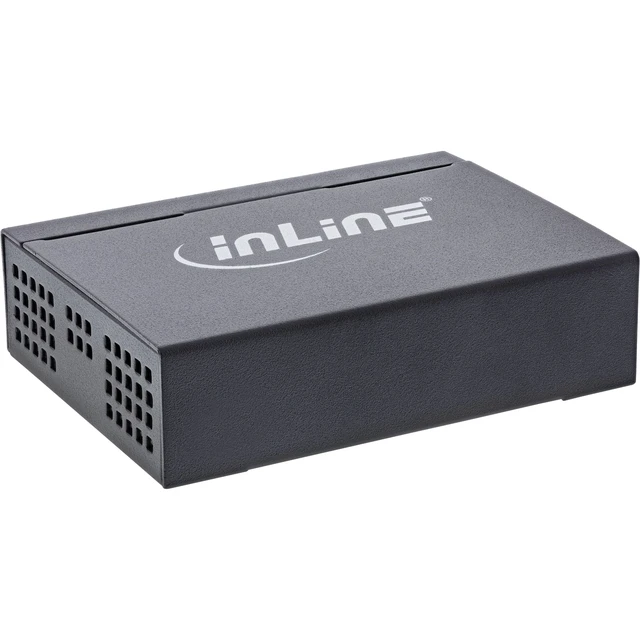

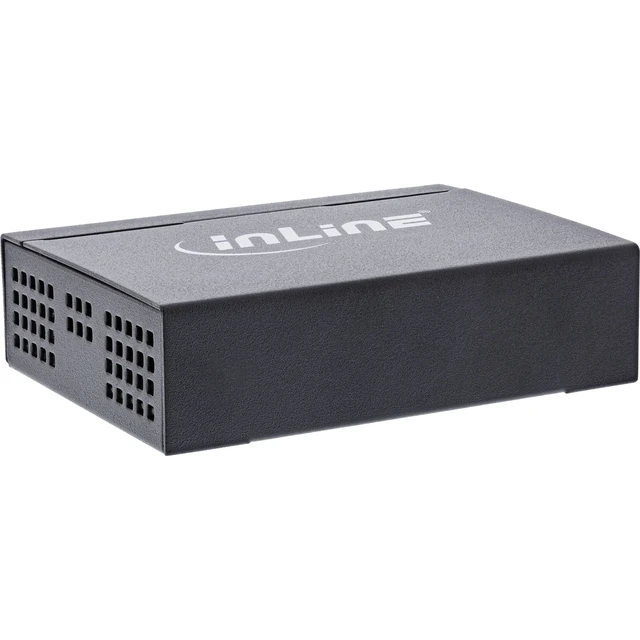

InLine Gigabit network switch 5-port, 1Gb/s, desktop, metal housing, fanless
- Basic switching RJ-45 Ethernet ports quantity: 5
- Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1 10BASE-T, 100BASE-T, 1000BASE-T
- Power supply included
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The switch has pre-punched holes on the underside so that it can be hung on the wall
Specification:
Standards and protocols: IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T CSMA/CD, TCP/IP
Basic functions:
5x 10/100/1000 Mbps Auto-Negotiation ports
MAC Address Auto-Learning and Auto-Updating
IEEE802.3x flow control for Full Duplex mode and Backpressure for Half Duplex mode
Backbone bandwidth: 1 Gbps
MAC Address Table: 4K
Forwarding rate
1000Base-T: 1488000pps/port
Transmission method: Store-and-forward

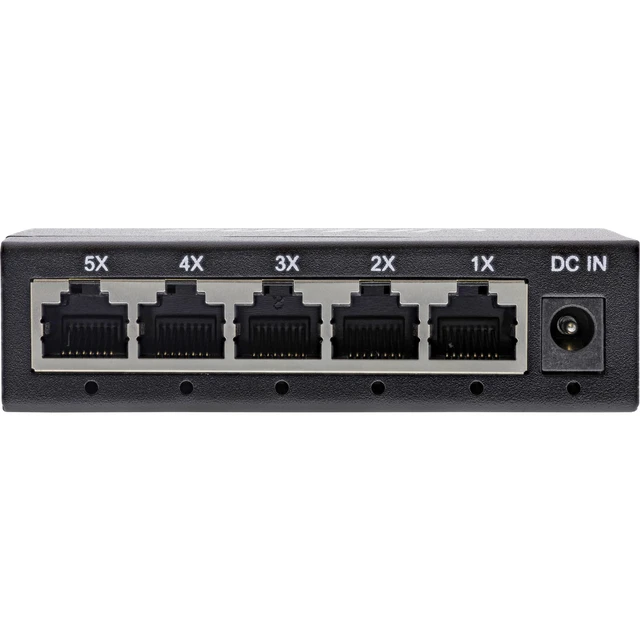

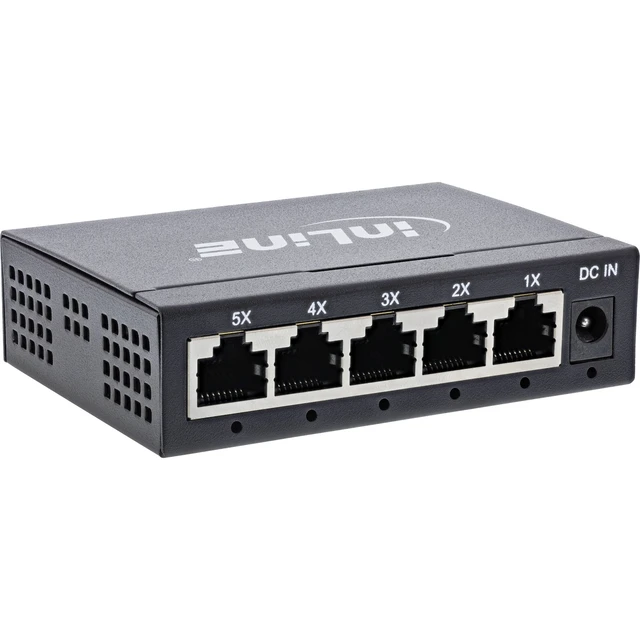

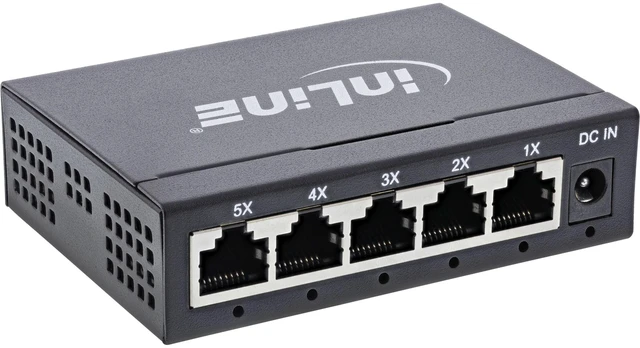

Ports: 5x 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Cables to be used
10Base-T: UTP cable Cat. 3, 4, 5 (max. 100 meter), EIA/TIA-568 100Ohm STP (max. 100 meter)
100Base-TX: UTP cable Cat. 5, 5e or higher (max. 100 meter)
1000Base-T: UTP Kabel Cat. 5, 5e or higher (max. 100 meter)
EIA/TIA-568 100ohm STP (max. 100 meter)
Environmental conditions:
Operating temperature: 0u00b0C ~ 60u00b0C
Storage temperature: -10u00b0C ~ 70u00b0C
Humidity in operation: 10% ~ 90% non-condensing
Storage humidity 5% ~ 90% non-condensing
LED indicators: Power (red), Link/Act, 1000M (blue)
Dimensions: 92x68x25mm (WxDxH)
Weight: approx. 154g
Power supply: 5V, 1A
Specification:
Standards and protocols: IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T CSMA/CD, TCP/IP
Basic functions:
5x 10/100/1000 Mbps Auto-Negotiation ports
MAC Address Auto-Learning and Auto-Updating
IEEE802.3x flow control for Full Duplex mode and Backpressure for Half Duplex mode
Backbone bandwidth: 1 Gbps
MAC Address Table: 4K
Forwarding rate
1000Base-T: 1488000pps/port
Transmission method: Store-and-forward
Ports: 5x 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Cables to be used
10Base-T: UTP cable Cat. 3, 4, 5 (max. 100 meter), EIA/TIA-568 100Ohm STP (max. 100 meter)
100Base-TX: UTP cable Cat. 5, 5e or higher (max. 100 meter)
1000Base-T: UTP Kabel Cat. 5, 5e or higher (max. 100 meter)
EIA/TIA-568 100ohm STP (max. 100 meter)
Environmental conditions:
Operating temperature: 0u00b0C ~ 60u00b0C
Storage temperature: -10u00b0C ~ 70u00b0C
Humidity in operation: 10% ~ 90% non-condensing
Storage humidity 5% ~ 90% non-condensing
LED indicators: Power (red), Link/Act, 1000M (blue)
Dimensions: 92x68x25mm (WxDxH)
Weight: approx. 154g
Power supply: 5V, 1A
