Note - The 24V output may not function properly. Please use the 12V setting for stable operation. This function is currently being updated.

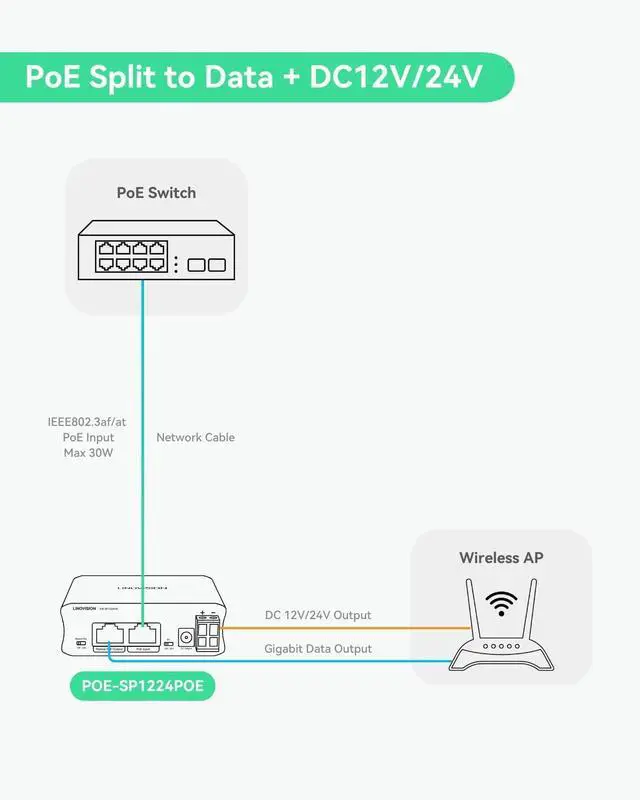

30W PoE SPLITTER - Split IEEE802.3af/at PoE to Switchable DC12V/24V and Passive PoE Output.

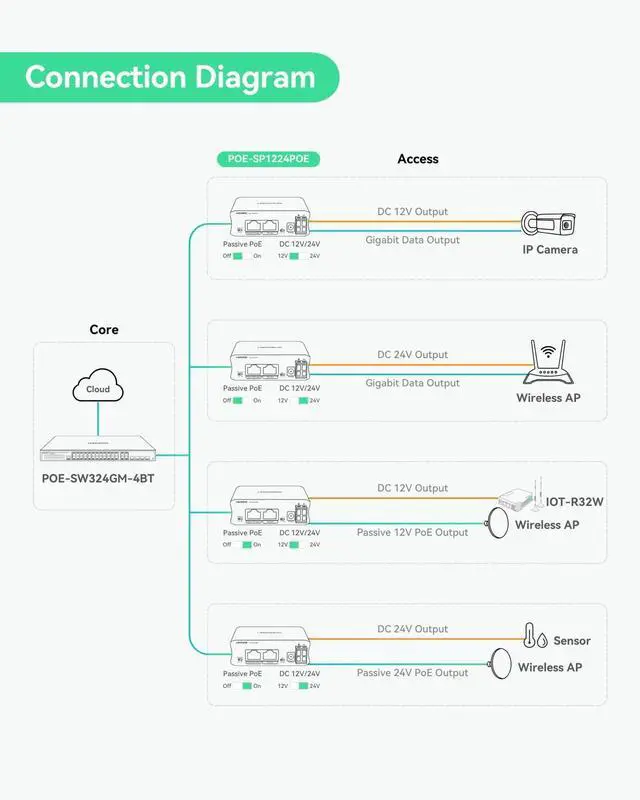

DC12V/DC24V OUTPUT - For Non-POE IP cameras, access reader terminals, IP speakers, Routers, etc.

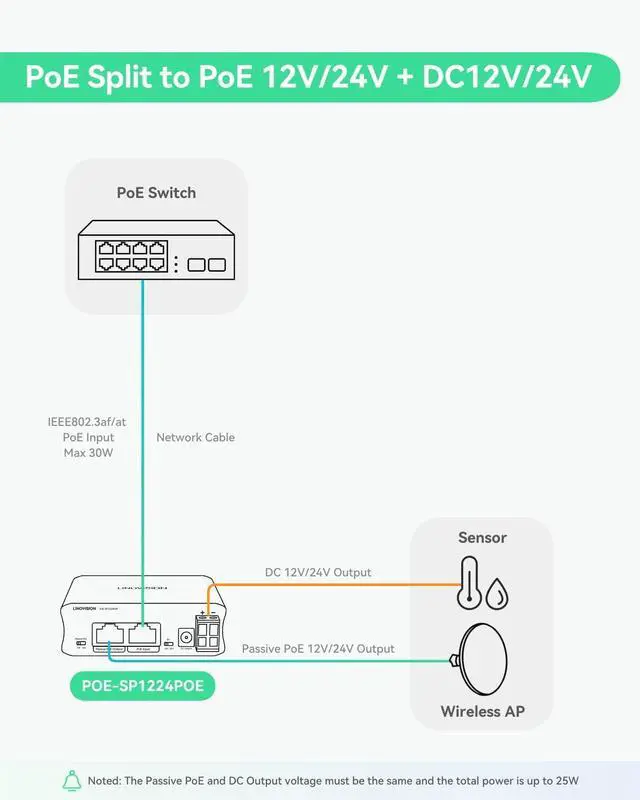

PASSIVE PoE OUTPUT - For AP, Wireless Bridges, or other terminals that accept Passive 12V/24V PoE.
GIGABIT SPEED - All ports support 10M/100M/1000Mbps transmission bandwith.

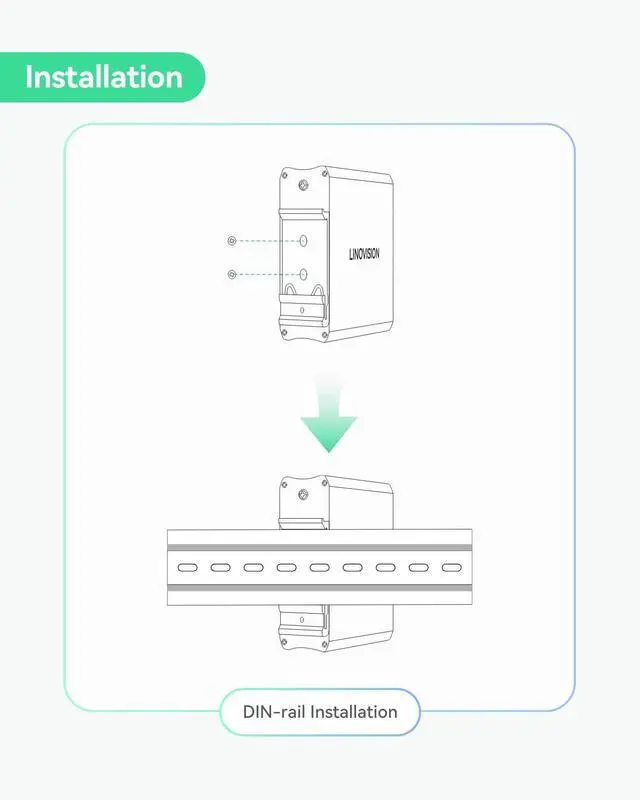

Compact Dimension - Full metal design, compact dimension 3.26'' x 2.72'' x 0.91''(82.7mm x 69mm x 23mm).
